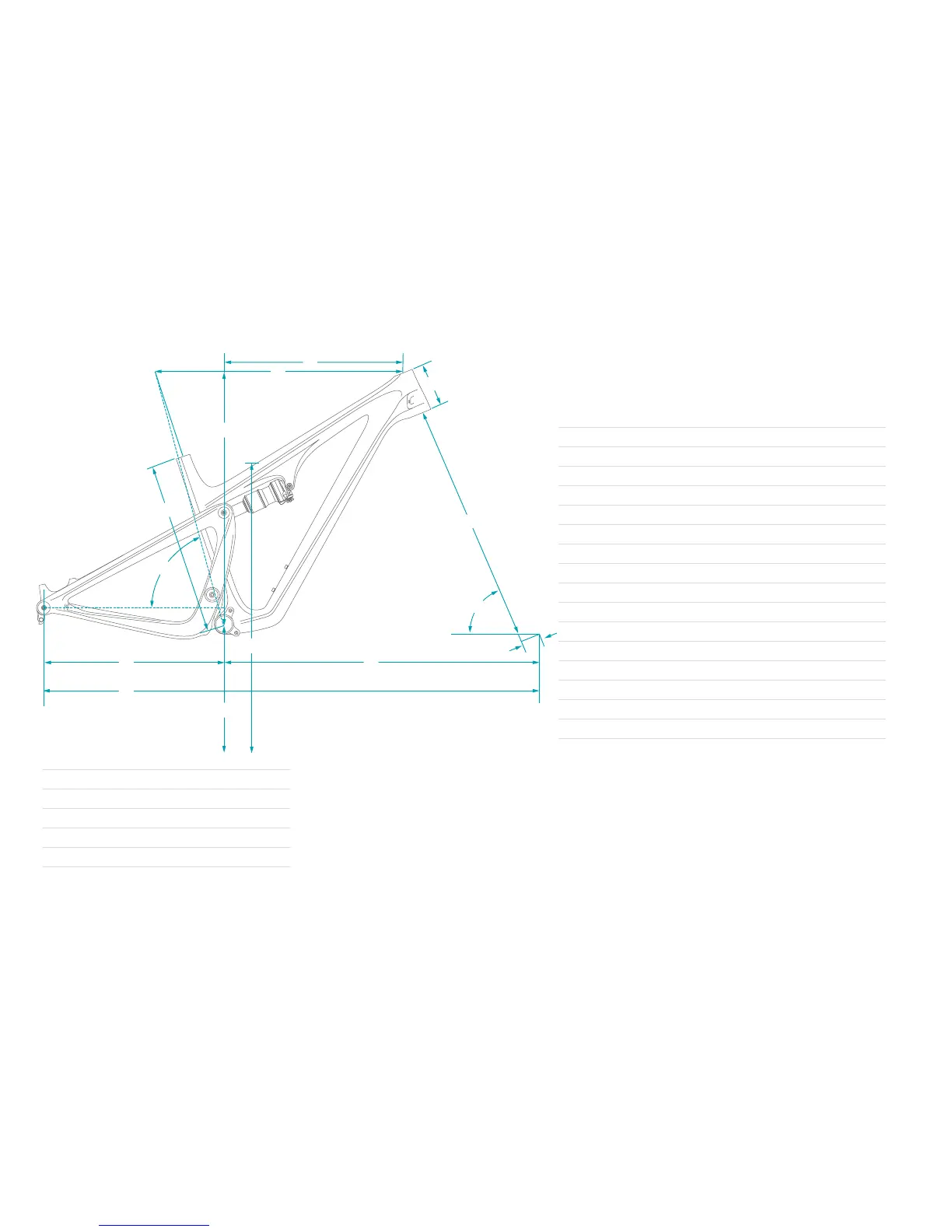

GEOMETRY
FIT
X-SMALL 4’11” (150 CM) - 5’3” (160 CM)
SMALL 5’3” (160 CM) - 5’7” (170 CM)
MEDIUM 5'7" (170 CM) - 5'11" (180 CM)
LARGE 5'11" (180 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'6" (198 CM)
FOX 34 / 10MM FORK
SM MD LG XL
A WHEEL 29” 29” 29” 29”
B REACH 407.1 432.1 452.1 472.1
C EFF. TOP TUBE 576.7 605.2 630.3 657.2
D STACK 602 612.1 627.1 647.2
E HEAD TUBE LENGTH 96.2 107 123.2 144.7
F SEAT TUBE LENGTH 393 419 457 495
G EFF. SEAT TUBE ANGLE 74.3 74.2 74.1 74
H HEAD TUBE ANGLE 67.8 67.8 67.8 67.8
I MECH. TRAIL 96 95.9 95.9 95.9
J BB DROP 37.9 37.9 38 38
K EST. BB HEIGHT 332.1 332.1 332 332
L CHAINSTAY LENGTH 437 437 437 437
M FRONT-CENTER
685.2
714.2 740.0 768.3
N WHEELBASE 1122.3 1151.4 1177.4 1205.5
O STAND OVER 724 724 723.9 723.9
P AXLE TO CROWN 530.2 530.2 530.2 530.2
Q FORK OFFSET 44 44 44 44
*All measurements are in millimeters
C
K
F
N
E
G
H
I
B
L
M
A
D
J
