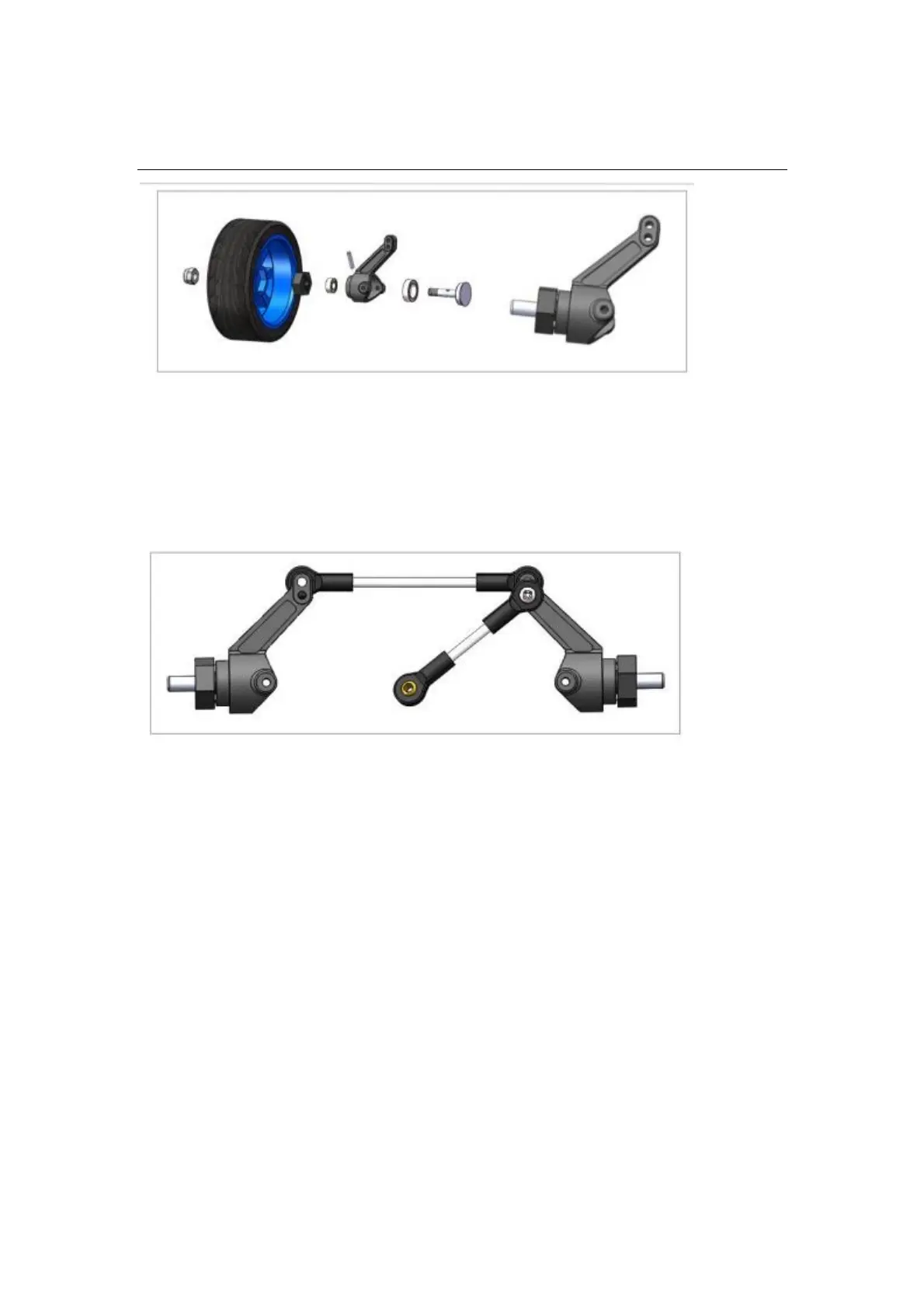

➢ In this order: front rotating shaft - large bearing - steering cup - small bearing - bolt -
hexagon connector - wheels – locknut (M4)
➢ The rotating shaft is loaded into the inner side of the steering cup through the large bearing.
When fixed, keep the bearing parallel to the inner side of the steering cup, and push the
bearing tightly to facilitate the installation of the head bolt
5.2 Connection of the ball stud to the steering cup
➢ The long connecting rod is in the upper hole, connecting steering cups of two sides with the
hole spacing 65mm. Please fine tune if there is any deviation.
➢ The short connecting rod is in the lower hole. Its one side is connected to the steering cup,
the other to the rudder angle. The long and short connecting rods are fixed in the different
holes, with the hole spacing 45mm.
➢ M2.5 * 10mm screws x3
