5.5 Drive assembly

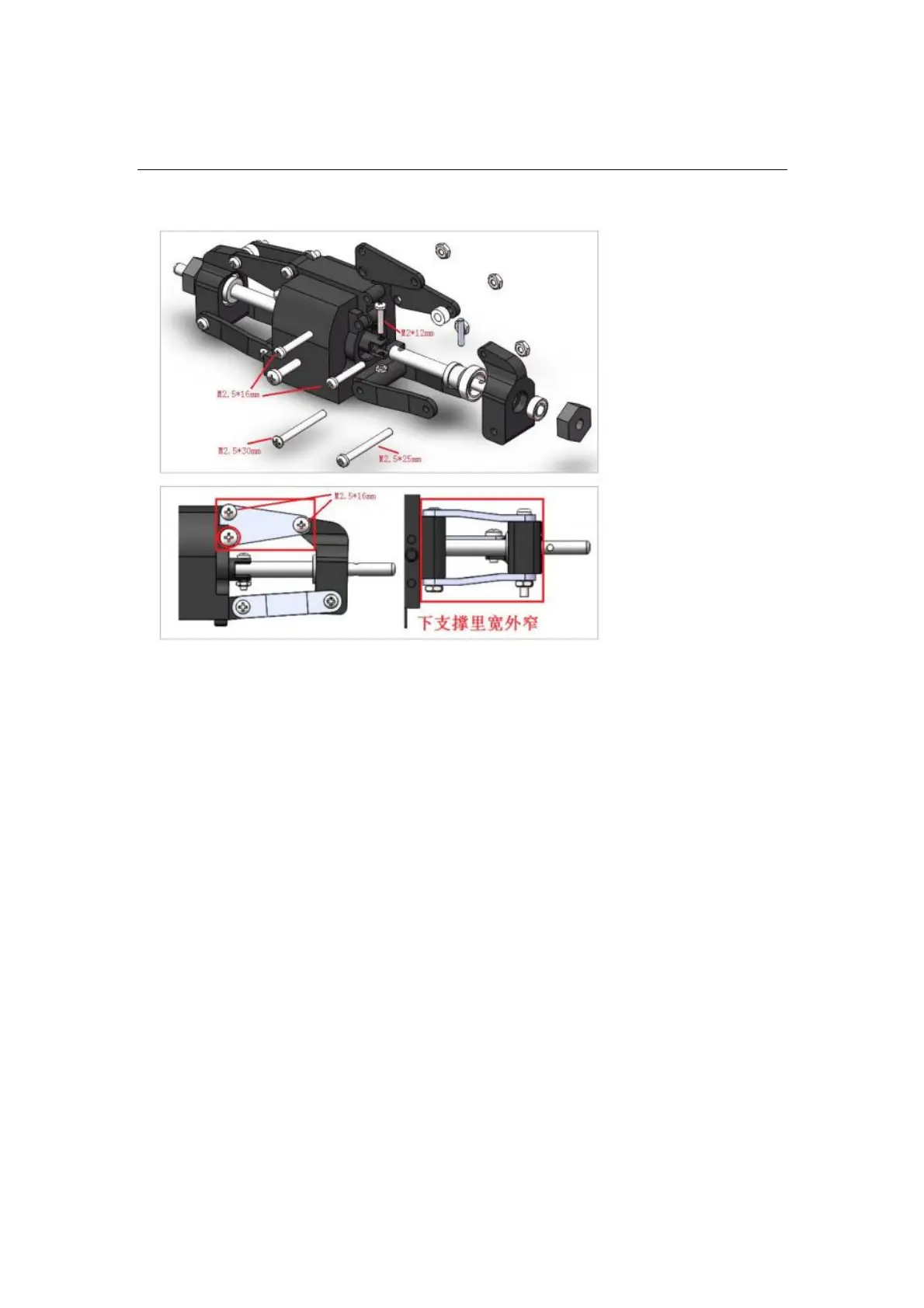

lower support, wide in the inside and narrow in the outside
➢ The rear wheel seat shall be fixed at last. The transmission shaft shall be fixed to the output
shaft first. The rear wheel shall be installed similar to the front wheel. Installation of rear
wheel seats shall be distinguished between left and right sides. Install the seat with marked
R on the left side and the seat with marked L on the right side.
➢ The lower support is a Z-type structure. Attention should be paid to the direction for the
assembly. It is wide close to the differential box and narrow in the wheel seat. If not clear,
please compare the same perspective as the one placed in the figure.
➢ When fixing the upper support, please unscrew the screws before installing it.
➢ Aluminum cylinders x 2
➢ M2.5 * 25mm screws x 2
➢ M2 * 12mm screws x 2
➢ M2.5 * 30mm screws x 2
➢ M2 locknuts x 2
➢ M2.5 locknuts x 8
➢ M2.5 * 16mm screws x 4
