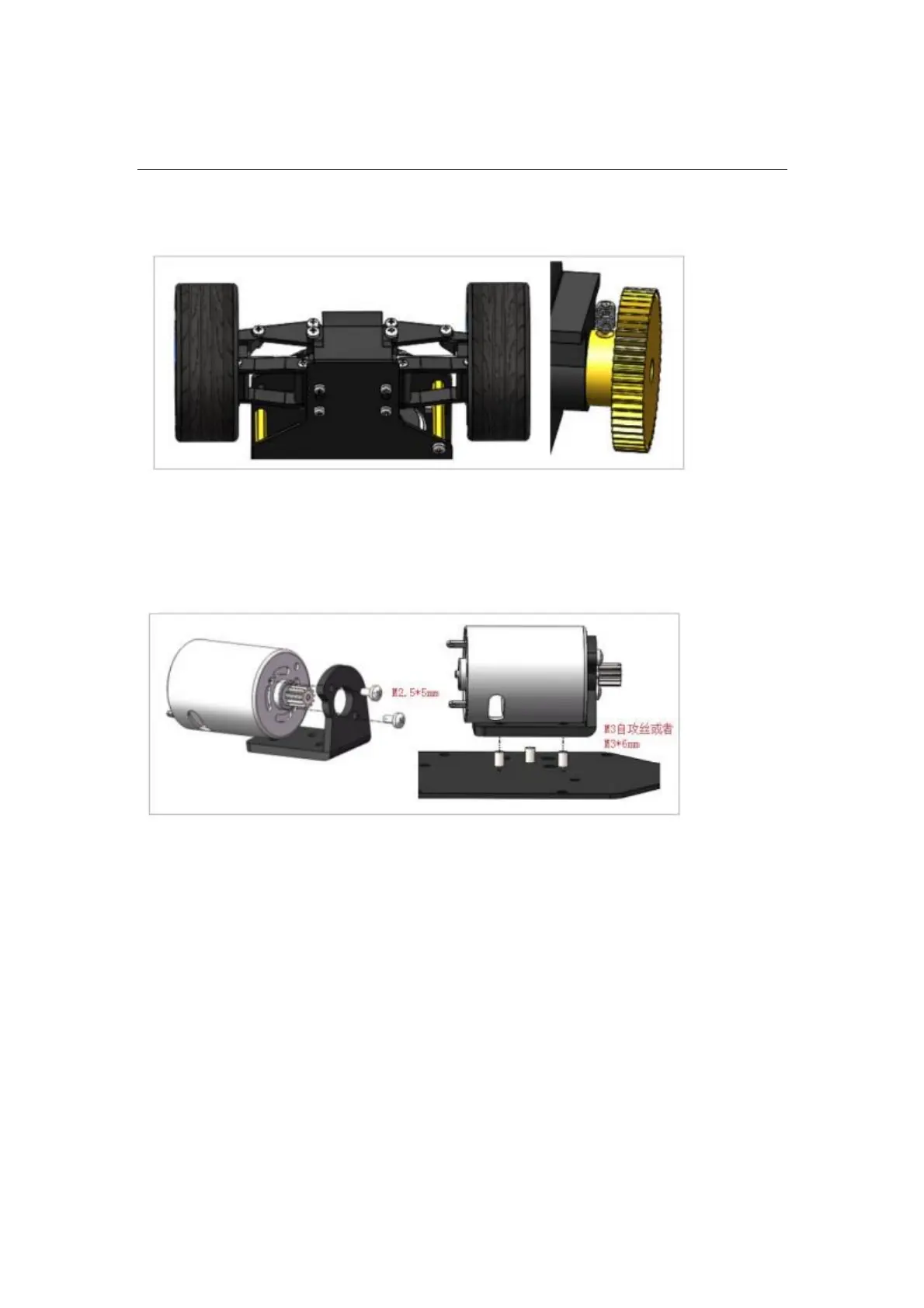

5.6 Fix drive to the chassis
➢ Install the plastic gear on the input shaft of the reduction gearbox, fix the lock screw to the
D-shaped plane, and fix it with the L-type wrench.
➢ M2.5 * 8mmscrews x 4
➢ 54-teeth gear x 1
5.7 Install RS380 motor
M3*6mm: M3 self-tapping screw or M3*6mm
➢ First fix the motor to the L-shaped bracket and then to the chassis.
➢ Fixing the motor to the bracket can adjust the left and right positions of the motor to set the
tightness of the gear fit
➢ Use M3 screws to fix the bracket
➢ M2.5 * 5mm screws x 2 (flat-head screws)
➢ M3 * 6mm screws x 3 (with gaskets)
