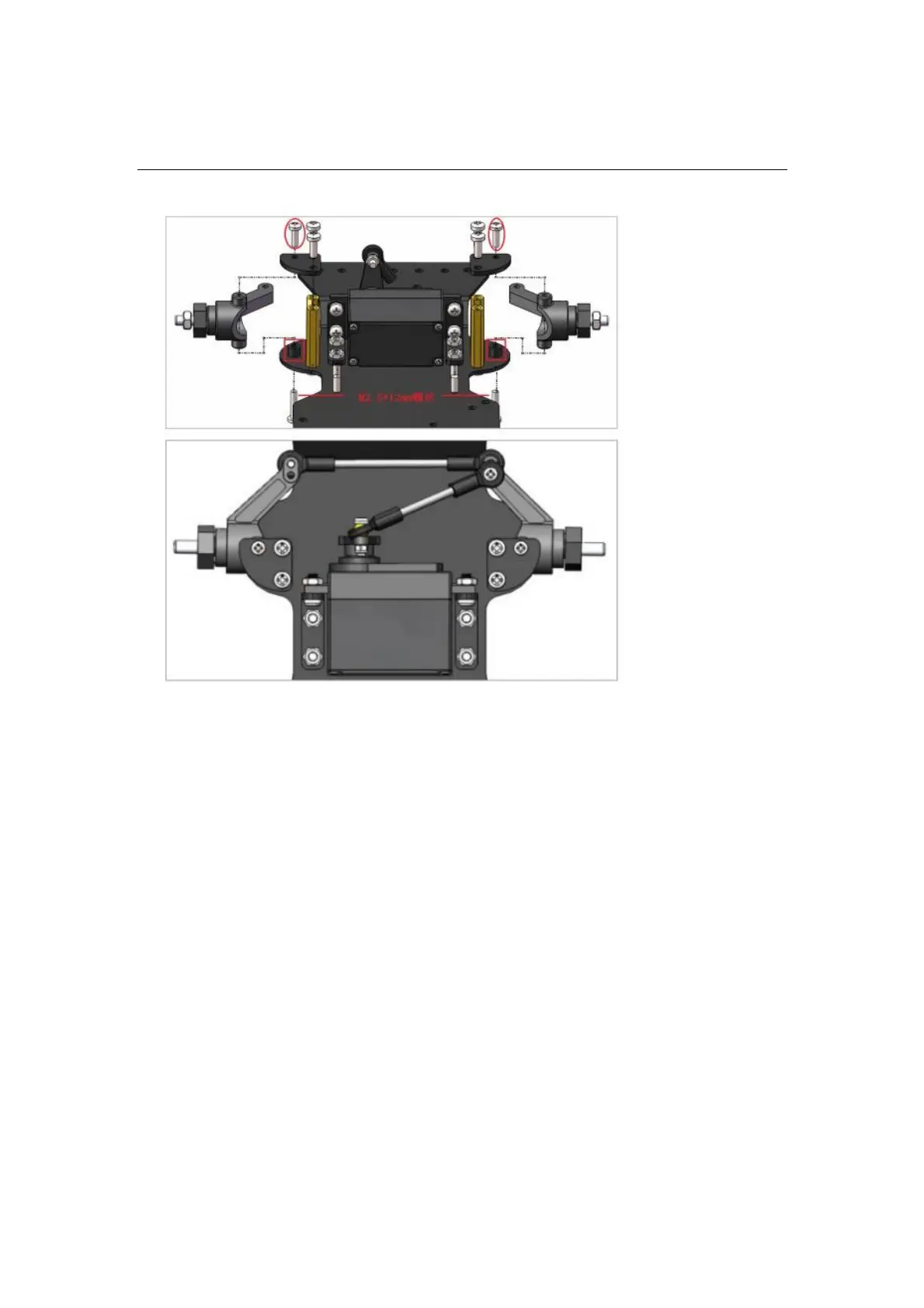

5.4 Fixed steering assembly
➢ The steering cup is fixed to the chassis, and kept to rotate flexibly, so as not to damage the
steering gear or the main board due to the locked-rotor during steering gear rotation.
➢ Tightening the screws will cause the steering cup to be unable to rotate. If attached to the
steering gear, forced pulling may damage the steering gear and main board.
➢ M3 * 26mm copper cylinders x 4
➢ M3 * 8mm screws x 12
➢ M2.5 * 8mm screws x 2
➢ M3 nuts x 4
➢ M2.5 * 12mm screws x 2
➢ 2 black cylinders (red boxes)
