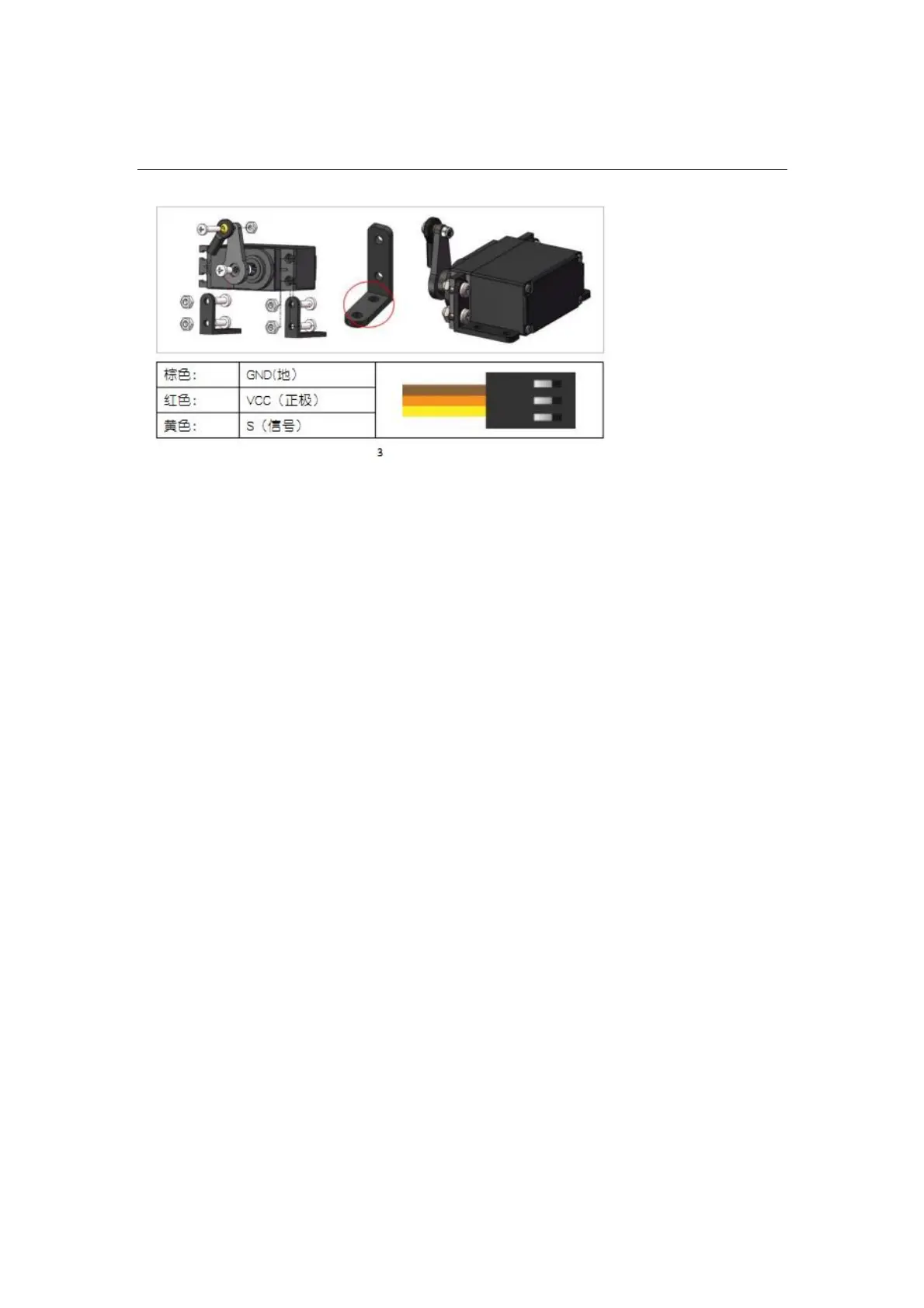

5.3 Fix steering gear, rudder angle, steering ball stud
Brown - Ground
Red – Vcc
Yellow - Signal
➢ Fix the steering gear on the L-shaped bracket and fixed holes are circled in red. Pay attention
to the left and right positions of the steering gear output shaft.
➢ Please calibrate the steering gear angle (90 degrees) before installing the rudder angle, and
control it to reach 90 degrees with the program.
➢ Attach one end of the short ball stud to the rudder angle and the other end to the steering
cup.
➢ Rudder angle x 1
➢ M3 nuts x 4
➢ M3 * 6mm screw x 1
➢ M2.5 * 10mm screw x 1
➢ M3 * 8mm screws x 4
➢ M2.5 locknut x 1
