YOKOGAWA AXG1A User Manual

F0333.ai
Cover locking screw
(1)

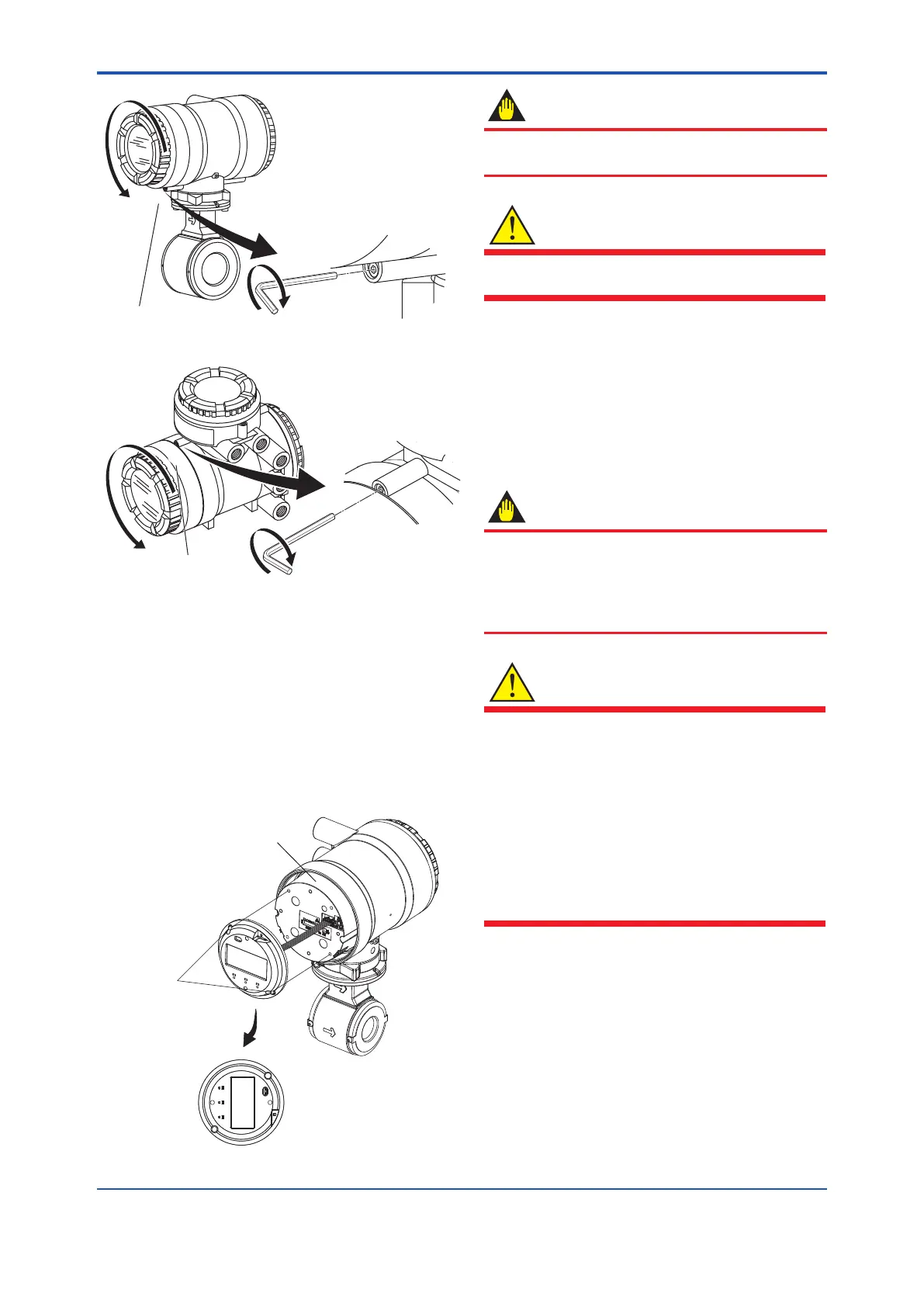

Figure 3.6.1 Removing the Display Cover (Integral Flowmeter)
F0334.ai
(1)
Cover locking screw
Figure 3.6.2 Removing the Display Cover
(AXW4A Remote Transmitter)
(2) Changing Display Unit Direction 90 degrees
• Hold the display unit with your hand and loosen
the two mounting screws.
• Rotate the display unit 90 degrees clockwise and
conrm the assembling position, taking care of the
connector and wire of the display unit.
At this time, do not remove the connector.
• Secure the display unit using its two mounting
screws.
F0335.ai
Clockwise 90 degrees
Mounting screw
(two screws)
Safety cover
Figure 3.6.3 Changing Display Unit Direction 90 degrees
IMPORTANT
To preserve the safety, do not touch the electrical circuit
and cable of shaded area.ntry after delivery.
WARNING
• To prevent electric shocks and maintain
performance, do not remove safety cover
(3) Installing the Cover
• Install the cover to the owmeter by rotating the
cover clockwise.
• Tighten cover locking screw (1) (See Figure
3.6.1 and Figure 3.6.2) counterclockwise using
a hexagonal wrench (nominal size 3) to lock the
cover.
IMPORTANT
• When closing the cover, close it with both hands
until the cover does not turn in order to bring the
housing and cover into tight contact.
• Tighten while conrming that the cover rotates
smoothly.
WARNING
• When opening and closing the cover, be sure to
handle the cover carefully so that there are no
damage and foreign matter adhesion at its threads
and O-ring. Keep checking their condition and clean
the threads in case of adhering the foreign matter.
• Replace the cover in case the treads receive
damages.
• Replace the O-ring if there is any scarring or
transformation. And apply silicone based grease at
the O-ring in case of the shortage and exhaustion of
grease.
<3. Installation>
28
IM 01E24A01-01EN
