21
IM 04L21B01-02EN
14.

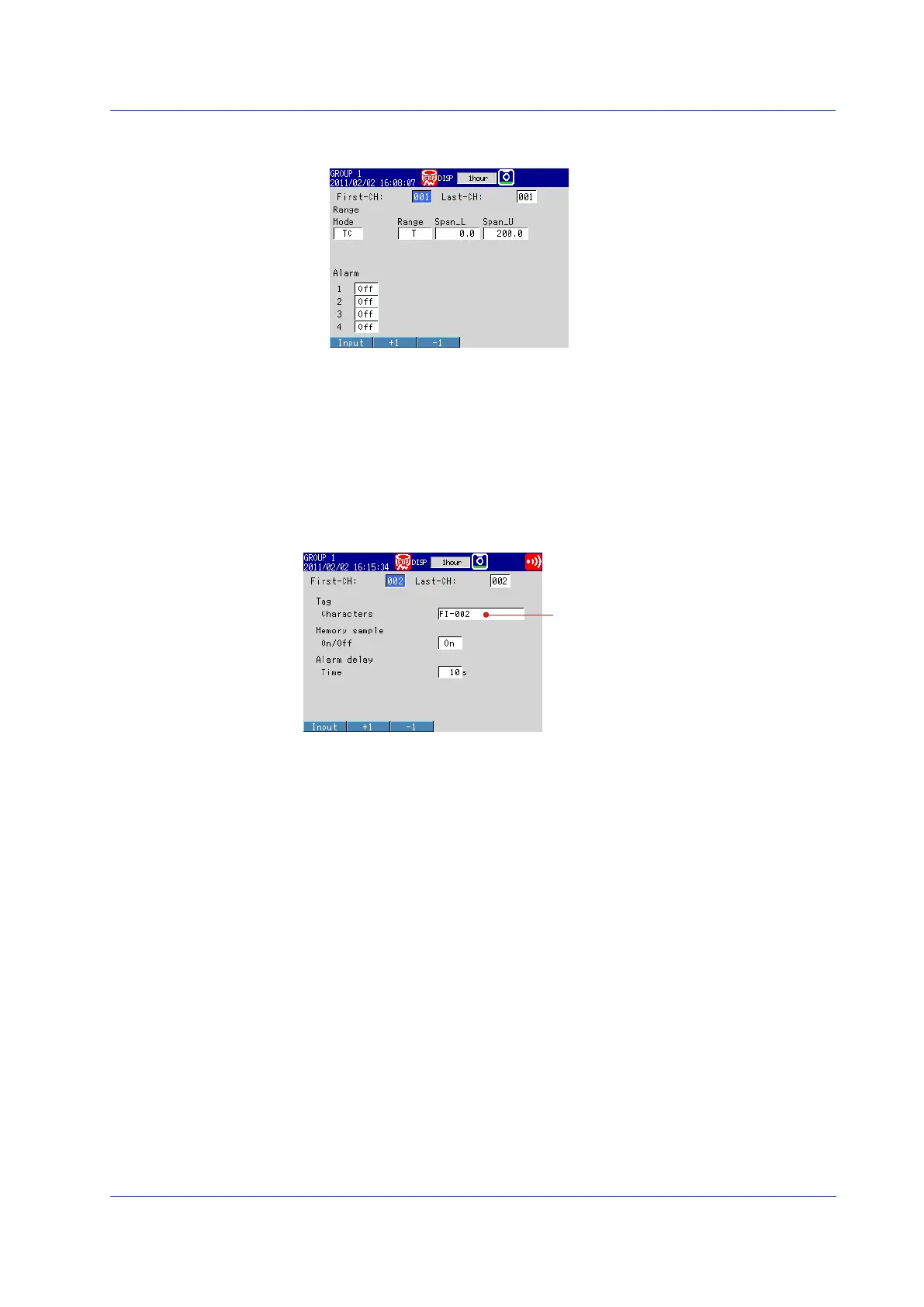

Press DISP/ENTER once. The changed items are entered, and the cursor returns
to First-CH. The changed items change from yellow to white.
15.
Press ESC three times or MENU twice to return to the operation mode screen.
Operation complete.
The following setup example shows only the procedure to display the appropriate screen
and the screen after the settings have been configured.
(2) Tag
Select the Menu tab > Meas channel > Tag, Memory, Delay.
2
Operation complete.
For more details of the setting input range, see Section 3.3 “Setting the Input Range”, in
the FX1000 User’s Manual, IM 04L21B01-01EN.
For more details of the setting tags, see Section 5.2 “Displaying Tags or Channel
Numbers”, in the FX1000 User’s Manual, IM 04L21B01-01EN.
For more details of the displaying scale, see Section 5.7 “Displaying a Scale on the
Trend Display”, in the FX1000 User’s Manual, IM 04L21B01-01EN.
Setting the Functions and Operations
