<Toc> <2. Initial Settings>
2-1
IM 05F01D02-41E
2. Initial Settings
This chapter describes examples of setting the types of PV input and alarm. Carry-
ing out settings described herein allows you to perform basic monitoring. Refer to
examples of various settings to understand how to set parameters required. Refer to
“5.1 Parameter Map” for an easy to understand explanation of setting various
parameters. If you cannot remember how to carry out an operation during setting,
press the
SET/ENT
key for more than 3 seconds. This brings you to the display (operat-
ing display) that appears at power-on.

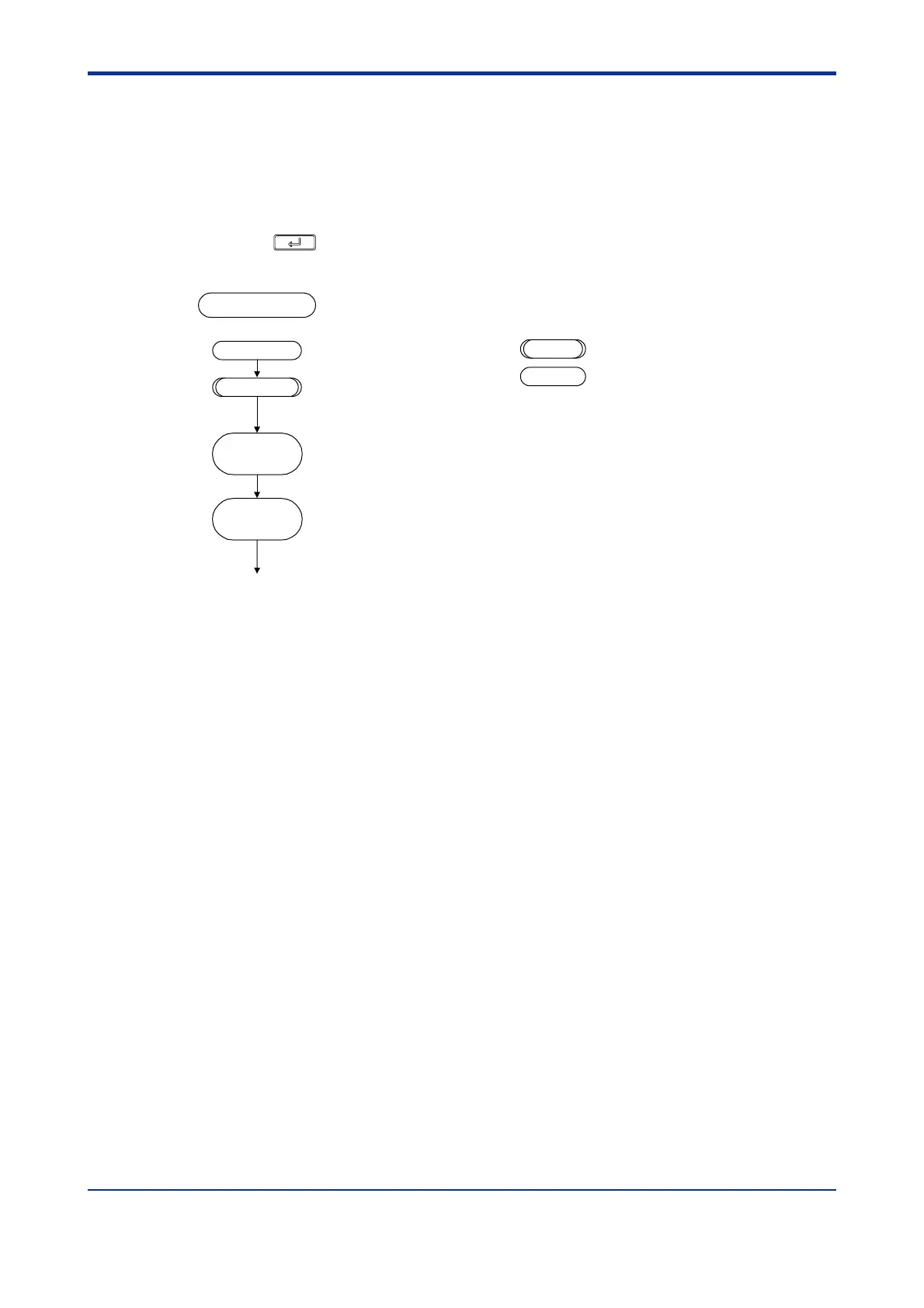

Power-on
Set the alarm
type and other setup
parameters.
See “2.2 Setting PV Input Type (Setting First at Power-on),”
or “2.3 Changing PV Input Type.”
Denotes a step that must always be followed.
(Factory-set to “Unspecified.”)
Denotes a step that should be followed as necessary.
Setup Procedure
Indicator operation
Set PV input.
Set the alarm
setpoints and other
operating parameters.
See “3.2 Setting Alarm Setpoints.”
See “2.4 Changing the Alarm Type.”
The following explanation of operation for the UM350’s panel, shown in the figure, is the
same as that of the UM330’s panel.
1st Edition : May 31,2000-00
To Next Page
