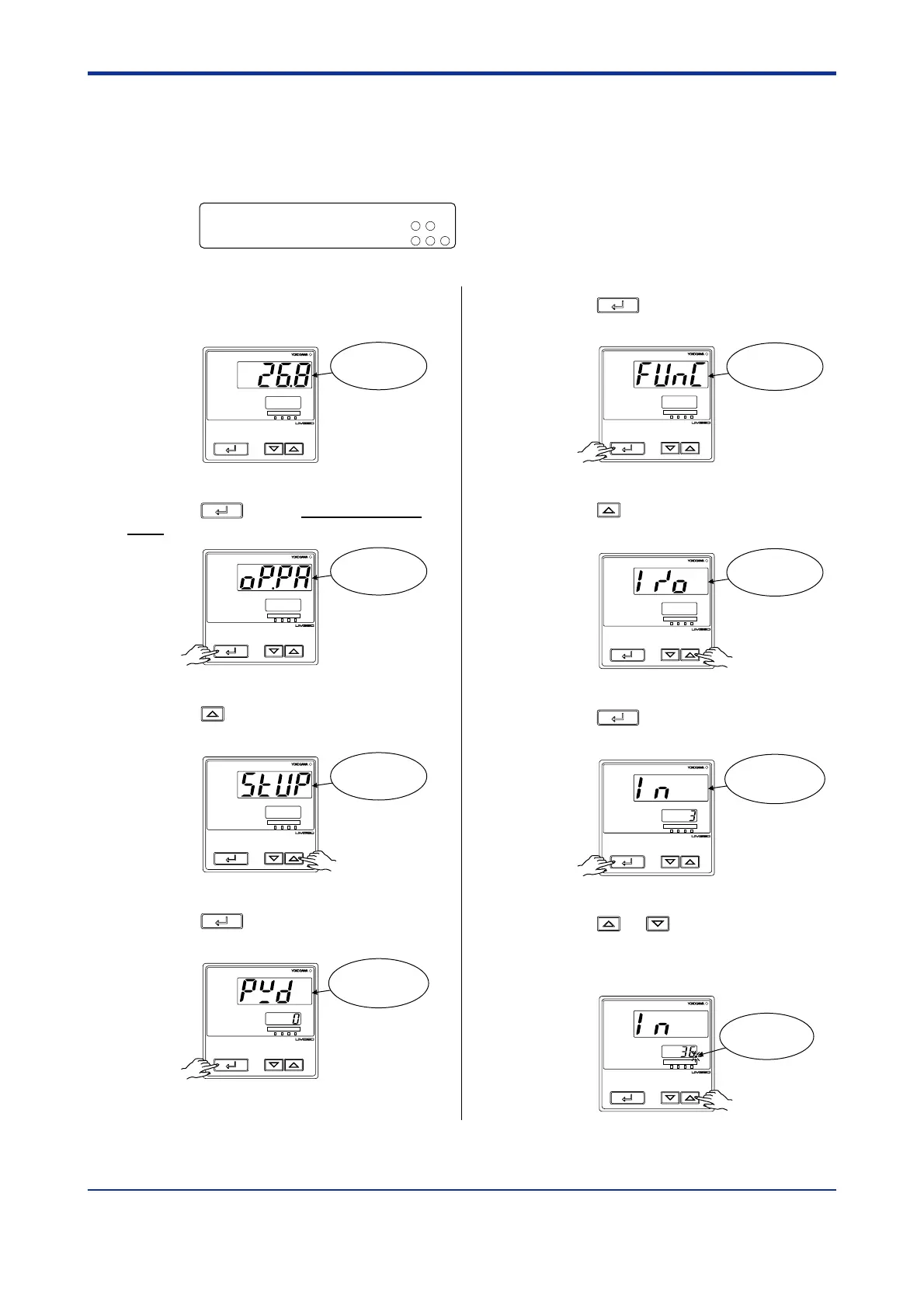

2.3 Changing PV Input Type
The following operating procedure describes an example of changing the setting of K-type
thermocouple (-199.9 to 500.0⬚C) to RTD Pt100 (-199.9 to 500.0⬚C) and a measurement
range of 0.0 to 200.0⬚C.
PV input terminal
Thermocouple/mV/V input
..............................
RTD input .................................................. --
131211
-
1312
1.
Bring the operating display into view
(display appears at power on).
PV
AL1234
SET/ENT
Displays PV.
2.
Press the
SET/ENT
key for more than 3 sec-
onds to call up the menu “OP.PA”.
PV
AL1234
SET/ENT
Displays
menu “OP.PA”.
3.
Press the key once to display the
menu “STUP”.
PV
AL1234
SET/ENT
Displays
menu “STUP”.
4.
Press the
SET/ENT
key once to display the
parameter “PWD”.
PV
AL1234
SET/ENT
Displays
parameter
“PWD”.
5.
Press the
SET/ENT
key once to display the
menu “FUNC”.
PV
AL1234
SET/ENT
Displays
menu “FUNC”.
6.
Press the key once to display the
menu “I/O”.
PV
AL1234
SET/ENT
Displays
menu “I/O”.
7.
Press the
SET/ENT
key once to display the
parameter “IN” (PV input type).
PV
AL1234
SET/ENT
Displays
parameter
“IN”.
8.
Press the or key to display the
required setpoint. The figure below shows
an example of changing to RTD Pt100
(-199.9 to 500.0⬚C).
PV
AL1234
SET/ENT
Blinks during
change.
