YOKOGAWA UP150 Instruction Manual

IM 5E1E70-01E
17
…… …… …… …… ……
*Note
*Note: • The setting range and unit of SPn (n=2 to 15) are same as those of SP1 (and SP16)
• The setting range and unit of TMn (n=2 to 15) are same as those of TM1 (and TM16)
A1
PV event 1
setpoint value
• PV alarm: EU (–100 to 100%)
• Deviation alarm: EUS (–100 to 100%)
Unit: °C/°F
0: PV event
1: Time event
Max. value of
measurement range
(PV alarm)
HY1
PV event 1
hysterisis
0 to 100% of measurement range span
Unit:°C/°F
0.5% of
measurement range
span
EON1
Time event 1
on time
OFF or 0.00 to 99.59 (Hour, Min.) OFF
EOF1
Time event 1
off time
OFF (note) or 0.00 to 99.59 (Hour, Min.)
Note: Time event 1 does not stop when “OFF” is set.
OFF
EV2
Event 2 type 0: PV event
1: Time event
0
AL2
PV event 2
type
OFF or 1 to 10 (see the table of PV event function list) 2
A2
PV event 2
setpoint value
• PV alarm: EU (–100%) to EU (100%)
• Deviation alarm: EUS (–100%) to EUS (100%)
Unit: °C/°F
Min. value of
measurement range
(PV alarm)
HY2
PV event 2
hysterisis
0 to 100% of measurement range span
Unit:°C/°F
0.5% of
measurement range
span
EON2
Time event 2
on time
OFF or 0.00 to 99.59 (Hour, Min.) OFF
EOF2
Time event 2
off time
OFF (note) or 0.00 to 99.59 (Hour, Min.)
Note: Time event 2 does not stop when “OFF” is set.
OFF
SSP
Start target
setpoint
0 to 100% of measurement range span
Unit:°C/°F
Min. value of
measurement range
SP1
Target setpoint
1
0 to 100% of measurement range span
Unit:°C/°F
Min. value of
measurement range
TN1
Segment time
1
OFF or 0.00 to 99.59 (Hour, Min.) Min. value of
measurement range
SP16
Target setpoint
16
0 to 100% of measurement range span
Unit:°C/°F
Min. value of
measurement range
TN16
Segment time
16
OFF or 0.00 to 99.59 (Hour, Min.) Min. value of
measurement range
JC
Junction code 0: Reset
1: Hold
2: Repeat
0
WTZ
Wait zone OFF or EUS (1%) to EUS (10%) OFF
EV1
Event 1 type 0
OFF or 1 to 10 (see the table of PV event function list)
AL1
PV event 1
type
1
Code Setting range and unit Default User settingName

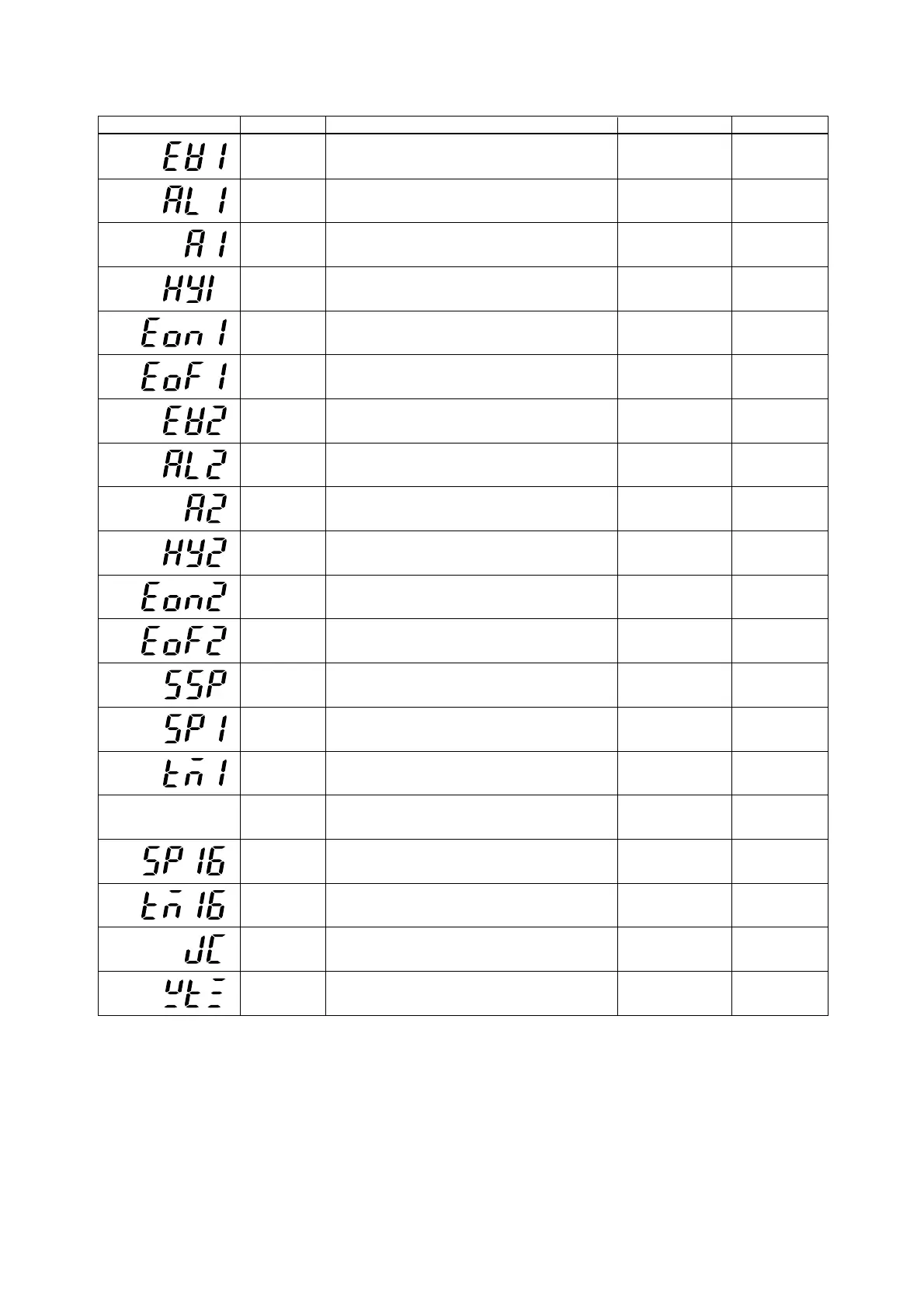

(4) Program Parameters
