YOKOGAWA UP150 Instruction Manual

IM 5E1E70-01E
29
■ HOLD Function
During program-driven operation, the time of “segment time” can be stopped by “HOLD function”.
When the controller is in “Hold”, the time of time events are also stopped. (PV events do not stop at this time.)
When program-driven operation is held, time event and segment time are extended only by amount of the hold.

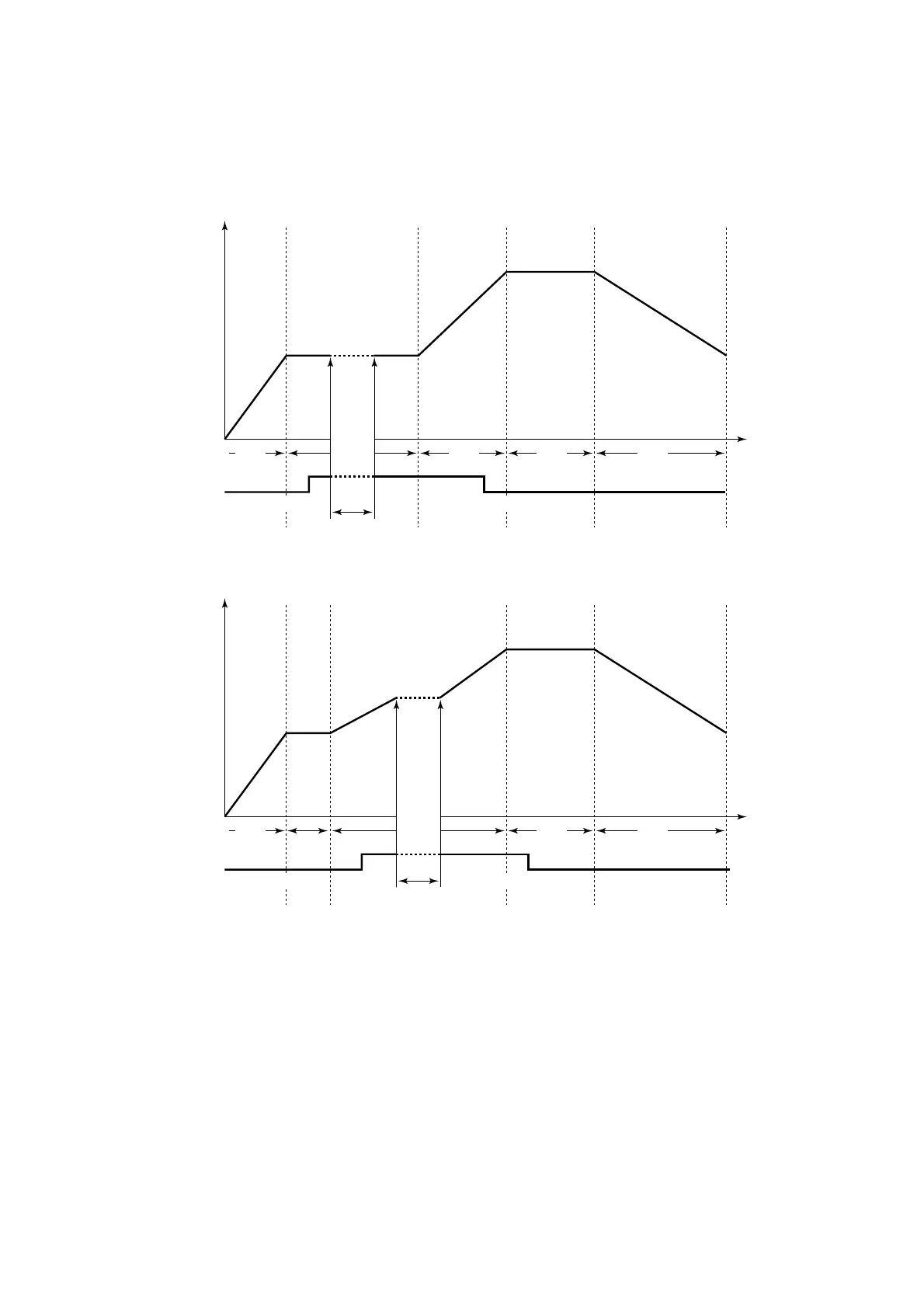

(1) “Hold” in soak internal segment
TM1
TM2
TM3 TM4 TM5
ON time OFF time
SEG1 SEG2 SEG3 SEG4 SEG5
SP1
SP2
SP3
SP4
SP5
Hold section
(timer stops)
Time event 1
(2) “Hold” in ramp segment
TM1
TM3
TM2
TM4 TM5
ON time OFF time
SEG1 SEG2 SEG3 SEG4 SEG5
SP1 SP2
SP3
SP4
SP5
Hold section
(timer stops)
Time event 1
The SP value
does not change
in Hold section
