YOKOGAWA UP150 Instruction Manual

IM 5E1E70-01E
30

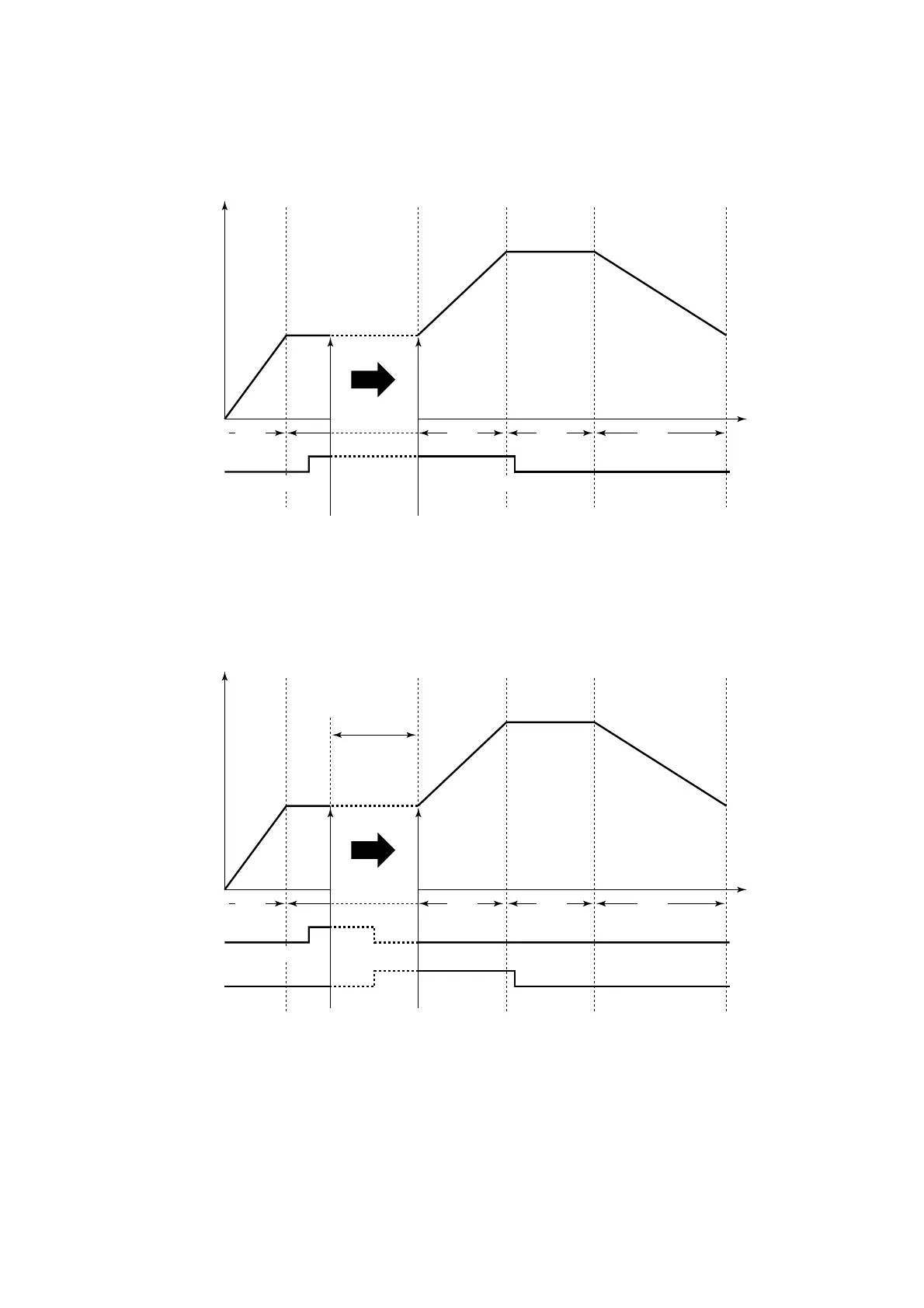

■ Advance Function
Advance (moving program pattern forward 1 segment) can be executed by key operation or via communication. If
advance is executed at the final segment, the system operates according to the set junction code. If advance is
executed during hold, hold is released. When advance is executed, time and event move forward.
TM1
TM2
TM4TM3 TM5
ON time OFF time
SEG1 SEG2 SEG3 SEG4 SEG5
SP1 SP2
SP3
SP4
SP5
Time event 1
The time when “Advance is
executed. The remaining
time of this segment
(SEG2) is canceled.
The program moves to
the start point of next
segment.
● Effect on time events
When the ON/OFF action of time events are in “time canceled section”, the status of time events are changed,
and these are kept in the next segment.
TM1
TM2
TM4TM3 TM5
ON time OFF time
SEG1 SEG2 SEG3 SEG4 SEG5
SP1 SP2
SP3
SP4
SP5
Time event 1
ON time
OFF time
Time event 2
Time canceled
section
“Advance is
executed.
The start point
of next segment.
