■ Junction Code
The operation at the end of program pattern can be specified by junction code (JC).
(1) Reset termination (JC = 0)
At program termination, the controller enters reset status. At this time, control output becomes the preset
output (0%), and event status is reset.
(2) Hold termination (JC = 1)
At program termination, the system enters hold status. At this time, control output and time event status are
held (PV events do not stop at this time). The hold status continues until canceled by key operation or
external contact (Digital input). When hold status is canceled, the controller enters reset status.

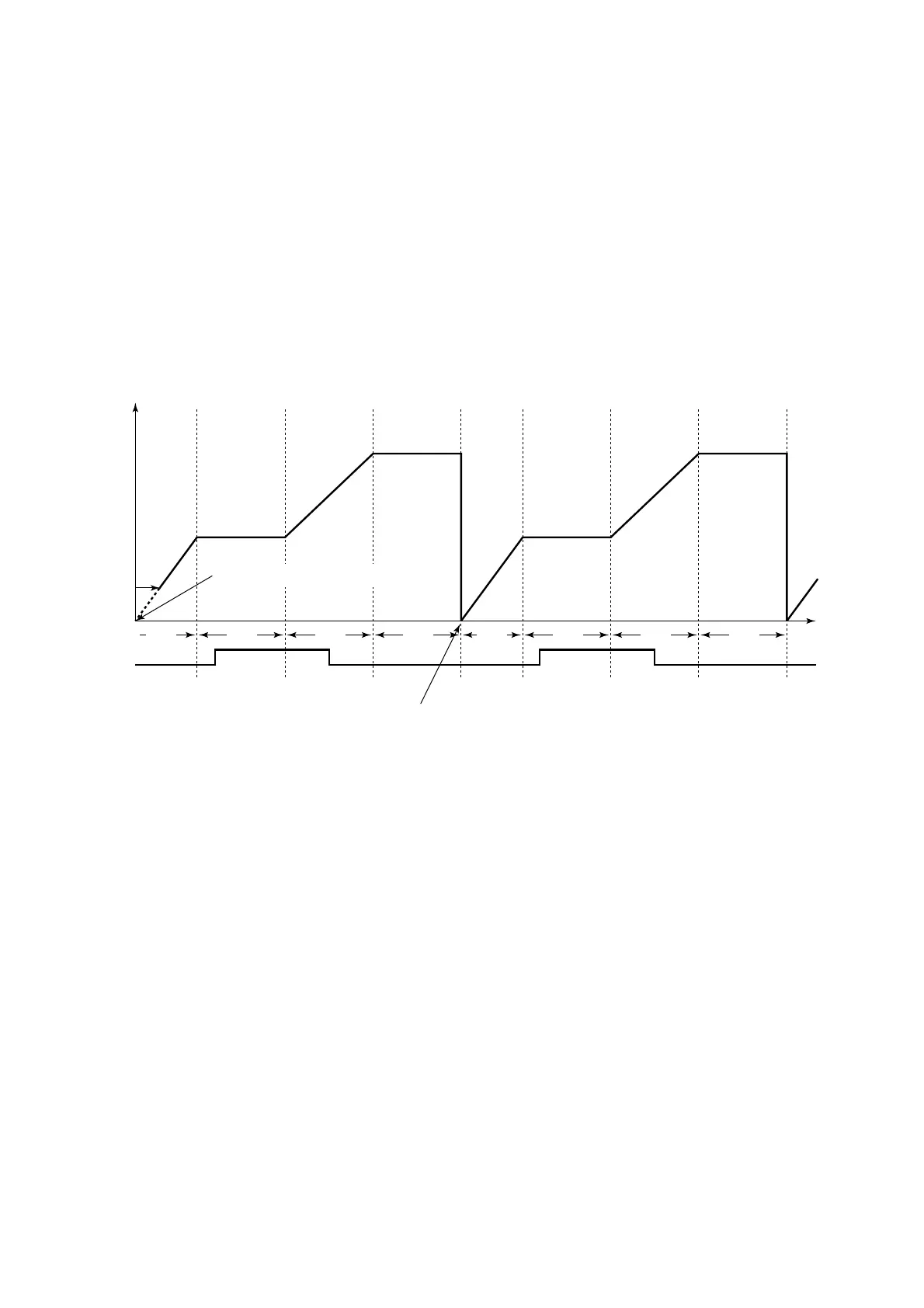

(3) Repeat (JC = 2)
At the program termination, the controller repeats execution of same program pattern. At this time, the
program-driven operation always starts from “SSP” (regardless of PV).
TM1 TM2 TM3 TM4 TM2
ON time OFF time
TM3 TM4TM1
SEG1 SEG2 SEG3 SEG4 SEG2 SEG3 SEG4SEG1
PV
SP1
SP2
SP3
SP4
SP1
SP2
SP3
SP4
SSP
SSP
PV startup with gradient-priority
When “repeat”, always starts from “SSP”
Time event
