1. Product name and model
Intelligent digital display for e-bike; model: YL71E.
2. Specifications
36V/48V power supply
Rated working current 10mA
Maximum working current 20mA
Leakage current at power-off <1uA
Working current at the supply controller end 50mA
Working temperature -20～60
Storage temperature -30～70
3. Appearance and dimensions

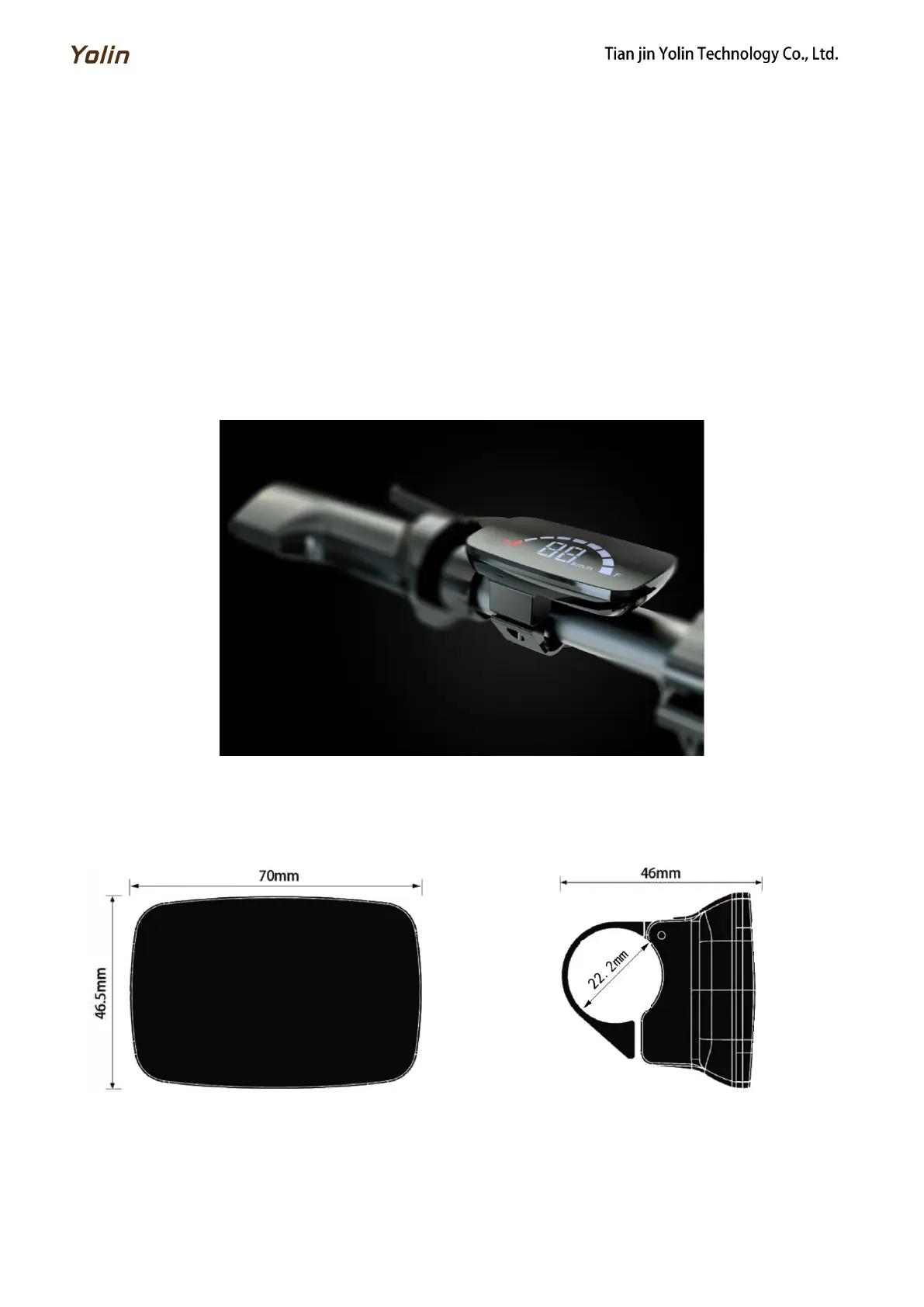

Fig. 3-1 Picture of Display 71E
Fig. 3-2 Front View of Display 71E Dimensions
Fig. 3-3 Side View of Display 71E Dimensions
