Yome CF181 - Wires Connection; External Relay Connection

4

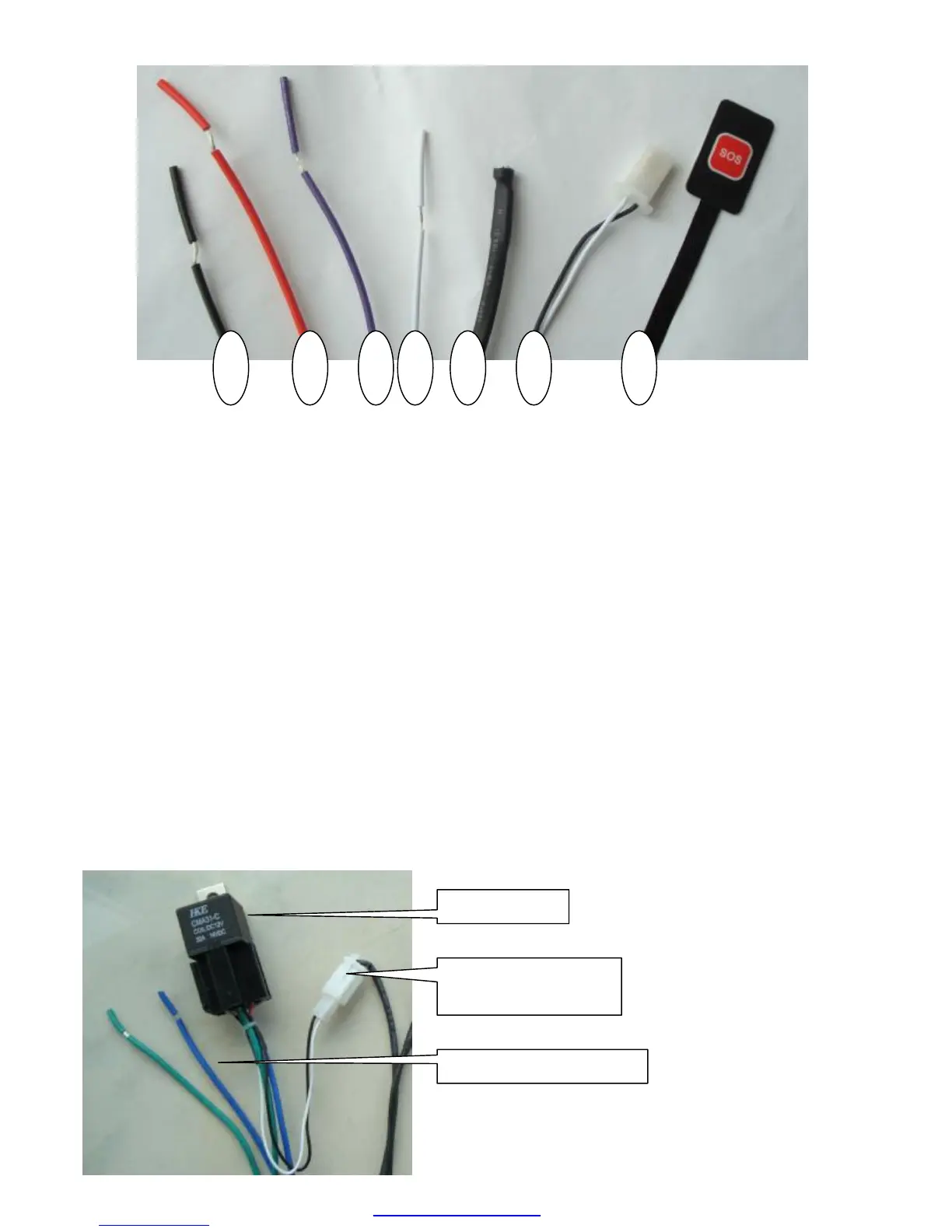

3.2 Wires Connection
1. Black wire:-12V;
2. Red wire:+12V;
3. Purple wire:ACC;
4.White wire:connecting guard against theft implement(reserve-wire,it can be
connected or not.)
5.Microphone
6.External-relay connector
7.SOS button
3.3
External relay Connection
1
2
3
4
5
6
7
External relay
Connect here with the
tracker (re. 3.2 Wire 6 )
Wire for car oil connecting
