Dimensions
Table 3: Dimensions
Dimensions (in.)
Refrigerant connections service
valve size (in.)
Unit model
A B C Liquid Vapor
HMH72B241S 26 3/8 33 7/8 12 1/4 5/8
HMH72B361S 33 37 3/8 13 3/8 3/4
HMH72B481S 54 5/8 37 3/8 13 3/8 7/8
HMH72B601S 54 5/8 37 3/8 13 3/8
3/8
7/8
Note:
• All dimensions are in inches and are subject to change without notice.
• Overall length and width include screw heads.

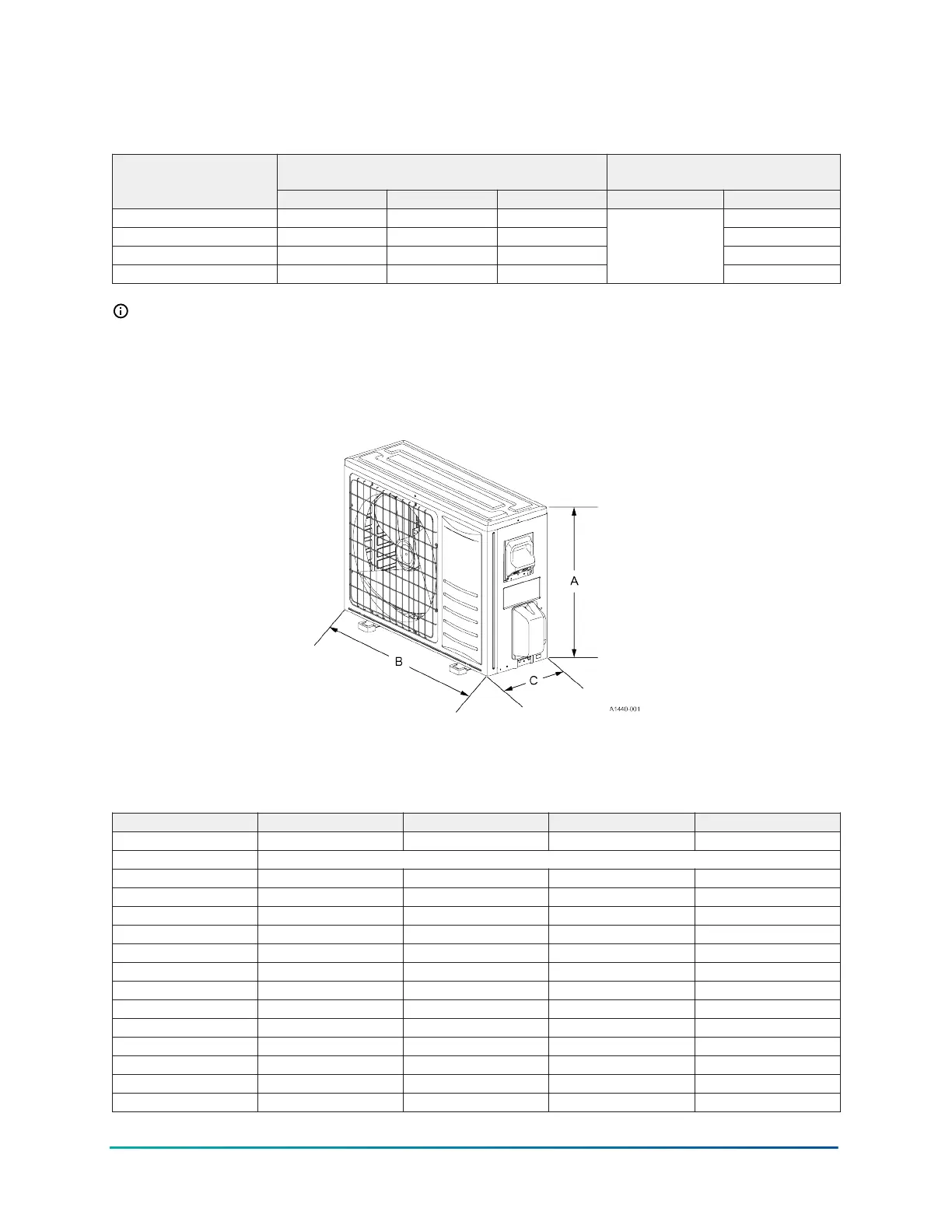

Figure 2: Dimensions
System charge
Table 4: System charge table
Outdoor unit HMH72B241S HMH72B361S HMH72B481S HMH72B601S
Required TXV BA1 BC1 BC1 BC1
Indoor unit additional charge (oz)
AE18B - - - -
AE24B - - - -
AE30B - - - -
AE36(C,B) 2 9 - -
AE42C - - - -
AE43C - - - -
AE48(C,D) - - - -
AE60(C) - - - -
AE60(D) - - 7 8
AVC18B - - - -
AVC24B - - - -
AVC30B - - - -
AVC36(B,C) 2 9 - -
9YORK Technical Guide: HMH7 Series - 17 SEER Horizontal Discharge Modulating Heat Pump
Johnson Controls Ducted Systems
