1.12 LOGIC SECTION LAYOUT
50 Hz Models :

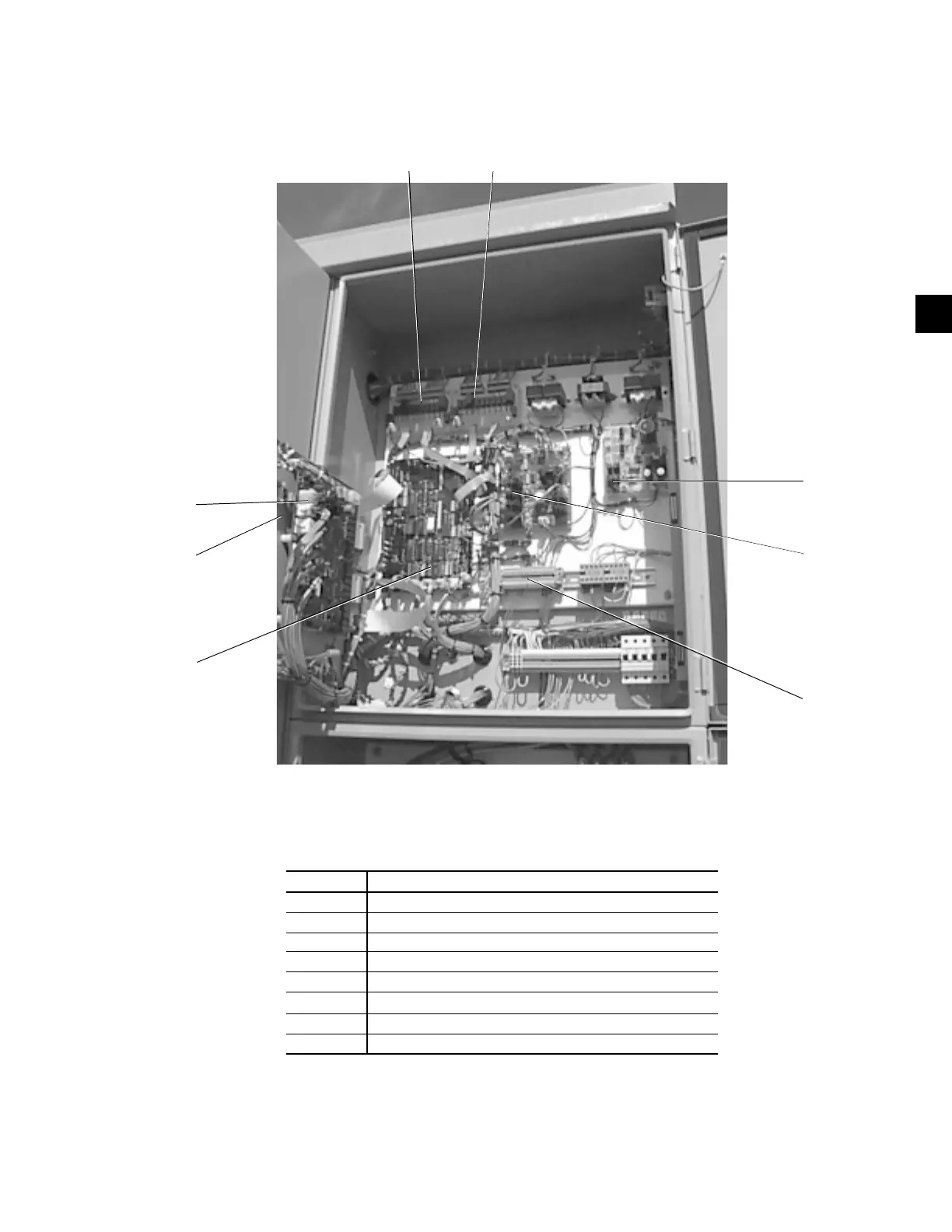

PHOTOGRAPH OF
50 HZ MODEL LOGIC SECTION
FIG. 64 – LOGIC SECTION LAYOUT
ITEM
1
2
3
4
5
6
7
8
DESCRIPTION
Microprocessor Board
Back of Keypad
I/O Expansion Board # 2
I/O Expansion Board # 1
Power Supply Board
Relay Output Board #1
Relay Output Board #2
Flow Switch & Customer Connection Terminals (TB4)
00262VIP
1
2
3
6
7
5
4
8
8
