Johnson Controls Unitary Products 3
5006167-YTG-F-0517

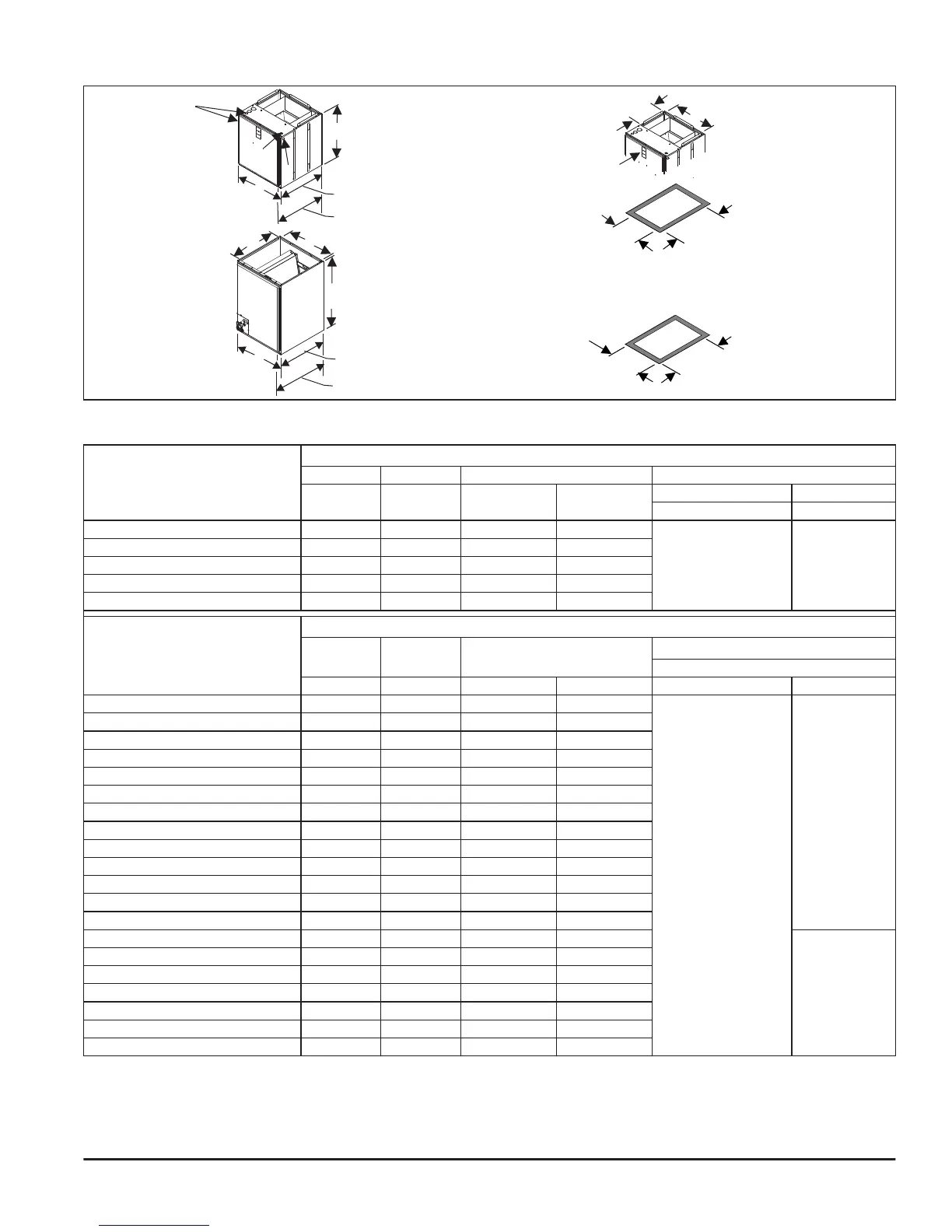

DIMENSIONS & DUCT CONNECTION DIMENSIONS
(
)
$
$
6(59,&(',6&211(&7
3$1(/
723287/(7
',0(16,216
%27720,1/(7
',0(16,216
'
´
´
%
´
´
$
'23(1,1*
%2772023(1,1*
',0(16,216
´
%
)
23(1,1*´
&23(1,1*
´
$,5+$1'/(5
&2,/
´
&23(1,1*
DIMENSIONS - MP MODULAR AIR HANDLERS & CM MULTI-POSITION FULL CASED COILS
Models
Dimensions
1
1. All dimensions are in inches as actual size (Dimensions in parenthesis are Conduit size).
Height Width Opening Widths Wiring Knockouts
AB C D
EF
Power Control
MP08BN21 21-1/2 17-1/2 16-1/2 16-1/2
7/8 (1/2),
1-3/8 (1),
1-23/32 (1-1/4)
7/8 (1/2)
MP12BN21 21-1/2 17-1/2 16-1/2 16-1/2
MP14DN21 22-1/2 24-1/2 23-1/2 23-1/2
MP16CN21 22-1/2 21 20 20
MP20DN21 22-1/2 24-1/2 23-1/2 23-1/2
Models
2
2. Asterisk (*) denotes coils available with Factory installed TXV.
Dimensions
1
Height Width Opening Widths
Refrigerant Connections
3,4,5
3. Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
4. Adapter fitting must be field installed for other line set size.
5. See outdoor unit technical guide for proper line set size.
Line Size
A B C D Liquid Vapor
CM18A* 19-1/2 14-1/2 13-1/2 13-1/2
3/8
3/4
CM18B 19 17-1/2 16-1/2 16-1/2
CM24A* 19-1/2 14-1/2 13-1/2 13-1/2
CM24B* 19 17-1/2 16-1/2 16-1/2
CM24C 21 21 20 20
CM30A* 25-1/2 14-1/2 13-1/2 13-1/2
CM30B* 23 17-1/2 16-1/2 16-1/2
CM30C 23 21 20 20
CM30D 25 24/1/2 23-1/2 23-1/2
CM36A 25-1/2 14-1/2 13-1/2 13-1/2
CM36B* 25-5/8 17-1/2 16-1/2 16-1/2
CM36C* 25 21 20 20
CM36D 25 24-1/2 23-1/2 23-1/2
CM42C* 27 21 20 20
7/8
CM42D 27 24-1/2 23-1/2 23-1/2
CM48C* 33 21 20 20
CM48D* 32-3/4 24-1/2 23-1/2 23-1/2
CM60C* 33 21 20 20
CM60D* 32-3/4 24-1/2 23-1/2 23-1/2
CM64D 32-3/4 24-1/2 23-1/2 23-1/2
