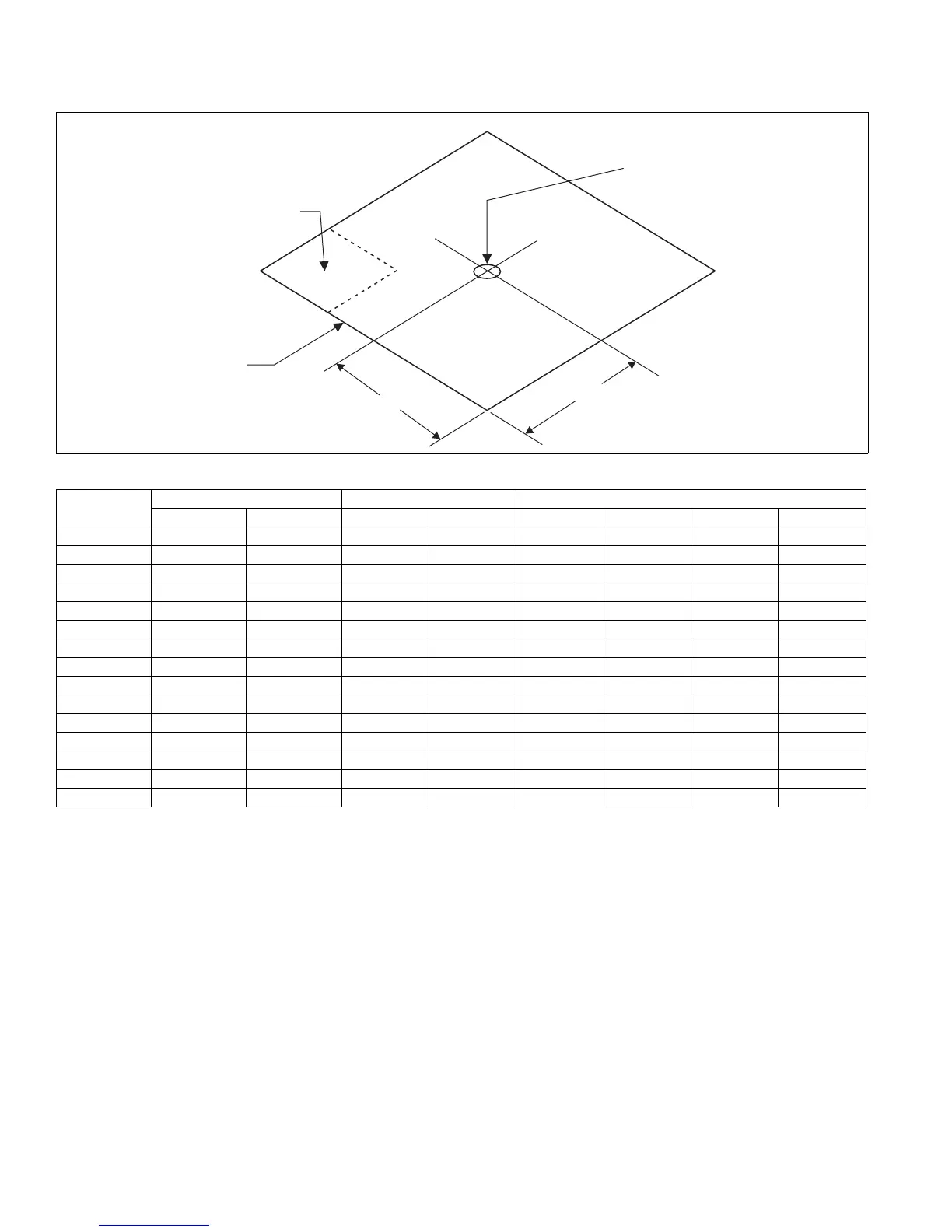

WEIGHTS & DIMENSIONS
Weights and Dimensions
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingXYABCD
24050 364 359 28 14 104 89 78 88
24075 371 366 28 14 106 91 80 89
30050 384 379 27 15 105 95 87 92
30075 391 386 27 15 107 97 88 94
36050 420 415 27 16 112 102 97 104
36075 427 422 27 16 114 104 98 106
36100 431 426 27 16 116 107 98 105
42075 447 442 27 16 120 109 103 111
42100 451 446 27 16 121 111 104 111
48065 500 495 26 20 132 130 115 118
48100 508 503 26 20 134 132 117 120
48125 513 508 26 20 136 133 118 121
60065 527 522 26 21 137 134 123 127
60100 535 530 26 21 139 136 125 129
60125 540 535 26 21 141 138 127 129
X
CENTER OF
GRAVITY
FRONT
OF UNIT
Y
"D"
"C"
"B"
"A"
A0295-001-TG
COMPRESSOR
