036-21021-003 Rev. C (0203)
2 Unitary Products Group
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.

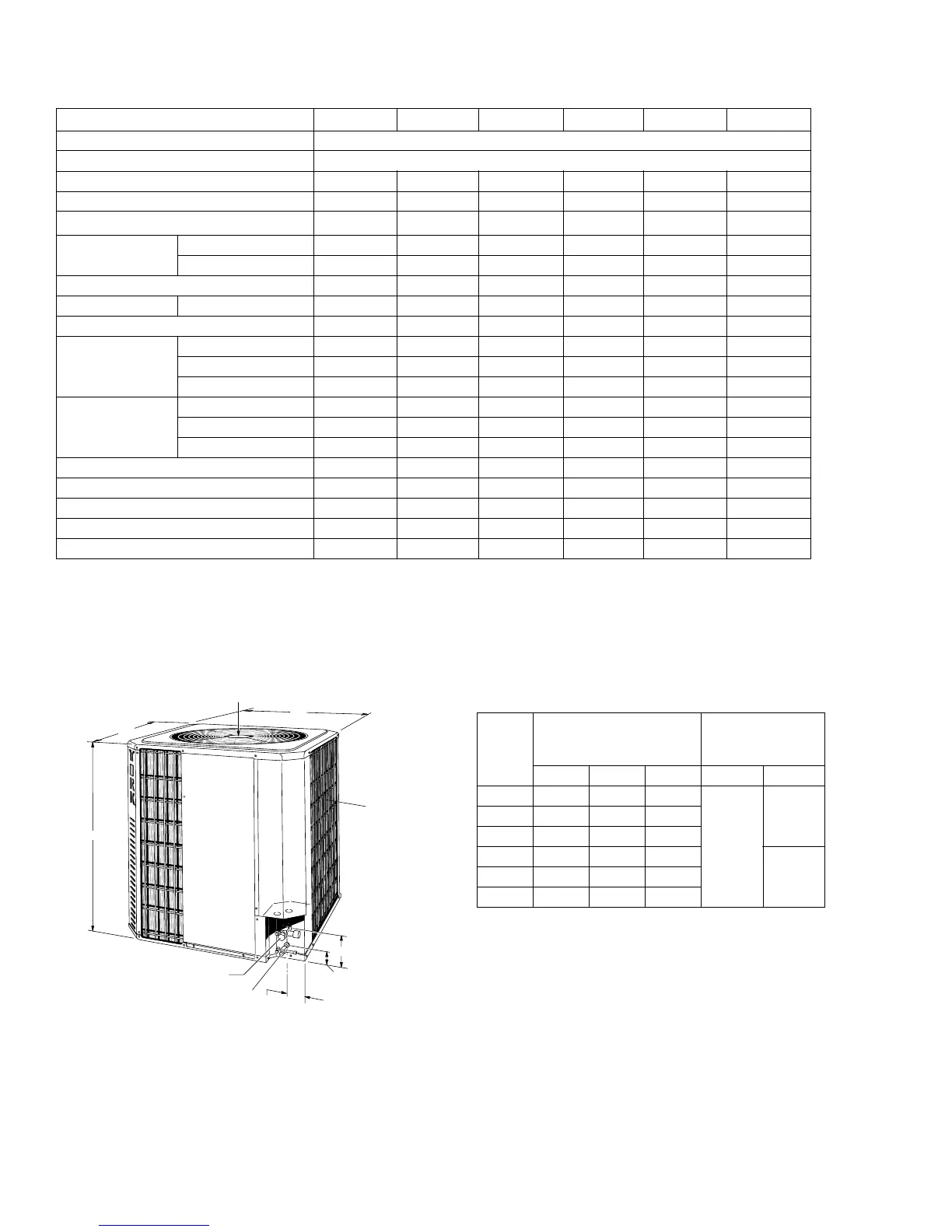

PHYSICAL AND ELECTRICAL DATA
MODELS
H4DE024 H4DE030 H4DE036 H4DE042 H4DE048 H4DE060
Unit Supply Voltage 208/230-1-60
Normal Voltage Range
1
187 TO 252
Minimum Circuit Ampacity 15.3 16.1 20.4 27.7 28.9 37.6
Max. Overcurrent Device Amps
2
20 25 35 45 40 50
Compressor Type
3
Recip Recip
Scroll
B
Scroll
C
Scroll
C
Scroll
C
Compressor Amps
Rated Load 11.5 12.8 16.6 19.8 21.8 28.8
Locked Rotor 60.0 68.0 96.7 104.0 131.0 169.0
Crankcase Heater No No No No No No
Fan Motor Amps Rated Load 0.9 0.9 0.9 1.4 1.6 1.6
Fan Diameter Inches 18 18 18 18 24 24
Fan Motor
Rated HP 1/8 1/8 1/8 1/4 1/4 1/4
Nominal RPM 1075 1075 1075 1100 850 850
Nominal CFM 2050 2050 2050 2300 3100 3100
Coil
Face Area Sq. Ft. 14.1 14.1 14.1 14.2 20.0 20.0
Rows Deep 1 1 1 1 1 1
Fin / Inches 18 18 18 20 13 18
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.)
4
5 - 0 5 - 2 5 - 2 5 - 13 7 - 0 7 - 10
Charge Per Foot, Oz. 0.68 0.68 0.68 0.70 0.70 0.70
Operating Weight Lbs. 141 143 138 148 195 208
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker.
3. All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add
or subtract the amount of refrigerant, using the difference in length multiplied by the per foot valve.
48" OVERHEAD
CLEARANCE
C
B
A
5-1/2
2-3/8
3-1/8
VAPOR
CONNECTION
LIQUID CONNECTION
AIR IN
4 SIDES
DIMENSIONS
UNIT
MODEL
HDE
DIMENSIONS
REFRIGERANT
CONNECTION
LINE SIZE
A B C LIQUID VAPOR
024 30-1/8 24 24
3/8
3/4030 30-1/8 24 24
036 30-1/8 24 24
042 30-1/8 24 24
7/8048 31-7/8 35 35
060 31-7/8 35 35
