York XP048 - Weights and Dimensions

251933-YTG-J-1009
96 Johnson Controls Unitary Products

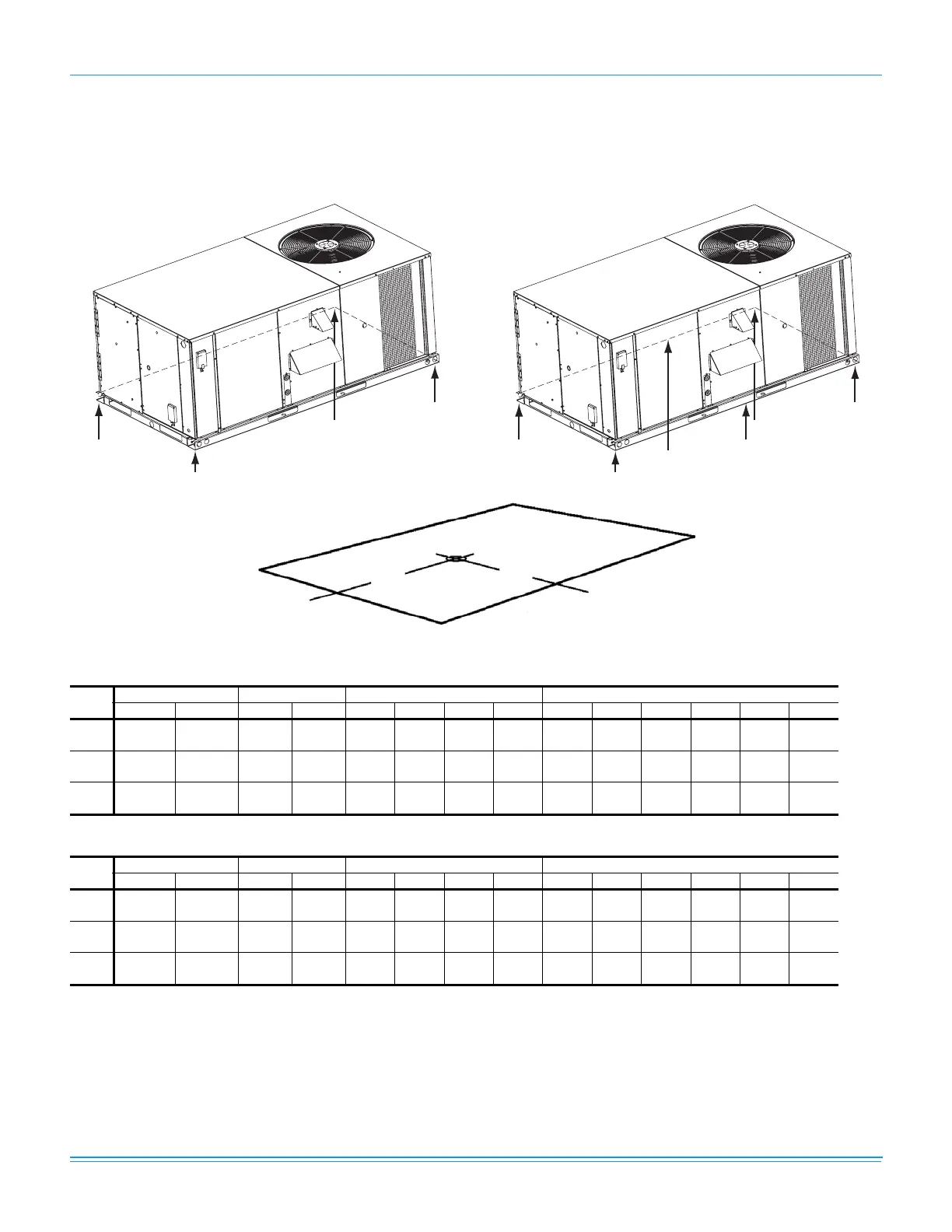

Weights and Dimensions
ZF/ZR/XP036-060 Unit Weights
Unit 4 Point Load Weight Unit 6 Point Load Weight
A
D
B
Front
C
A
F
C
B
Front
D
E
ZF036-060
Size
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
036
(3.0)
475 470 33 18.25 114 77 112 167 82 61 48 70 90 119
048
(4.0)
544 539 31.5 18.5 137 85 121 195 99 70 53 75 100 141
060
(5.0)
572 567 37 15 104 85 170 208 72 63 55 110 125 143
ZR036-060
Size
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
036
(3.0)
580 575 40 20 132 125 155 164 89 85 82 102 106 110
048
(4.0)
590 585 40 20 134 127 158 167 90 87 84 104 108 112
060
(5.0)
595 590 40 20 135 128 159 168 91 88 84 105 109 113
X
Y
LEFT
FRONT
