York YCAL0056EE User Manual

JOHNSON CONTROLS
FORM 150.67-EG1 (219)
78
TWO INCH DEFLECTION, SPRING ISOLATOR
Y2RS-X
3/4”
7/8”
3/8”
GAP
3/4”
TYP. (4)
5/8”
2-3/4”
1-1/8”
2-3/4”
8
P
4
8
STOP &
8-3/8”
OPER.
HEIGHT
4
4
LD18443

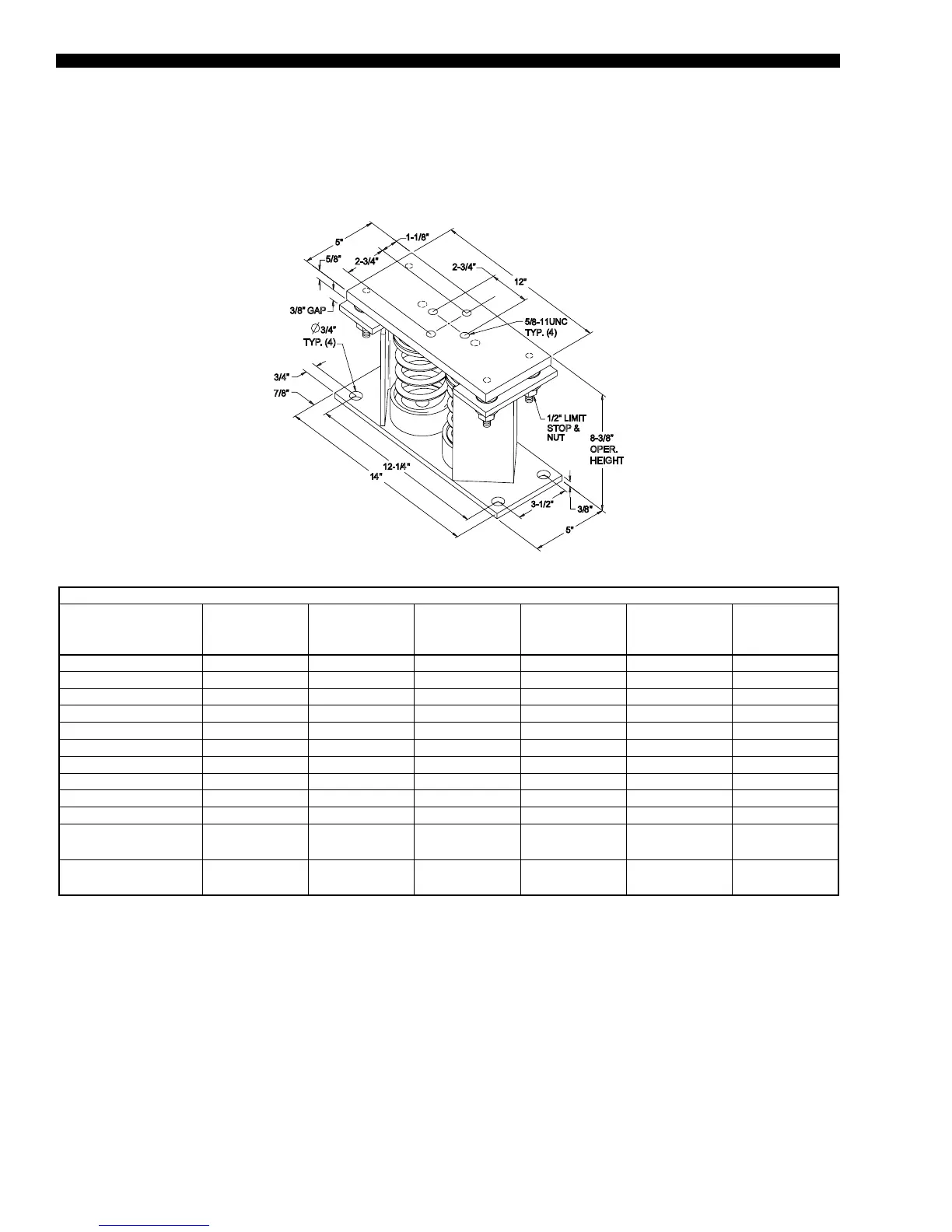

MODEL Y2RSI-2D SEISMICALLY RESTRAINED VIBRATION ISOLATOR FOR 2" DEFLECTION
SEISMIC MOUNT
SIZE
RATED LOAD
(LBS)
RATED
DEFLECTION
(IN)
SPRING RATE
(LBS/IN)
SOLID LOAD
(LBS)
COLOR CODE
ALLOWABLE
G RATING
HORIZONTAL
Y2RSI-2D-150 150 2.4 62 234 WHITE 34.7
Y2RSI-2D-320 320 2.3 140 490 YELLOW 16.3
Y2RSI-2D-460 460 2.3 200 688 GREEN 11.3
Y2RSI-2D-710 710 2.2 330 1072 DK BROWN 7.3
Y2RSI-2D-870 870 1.9 460 1312 RED 6
Y2RSI-2D-1200N 1200 1.9 638 1818 RED/BLACK 4.3
Y2RSI-2D-1450 1450 1.8 900 2450 TAN 3.6
Y2RSI-2D-1690 1690 1.7 1140 2892 PINK 3.1
Y2RSI-2D-2000N 2000 1.7 1318 3342 PINK/BLACK 2.6
Y2RSI-2D-2640N 2640 1.5 1854 4283 PINK/GRAY 2
Y2RSI-2D-2870N 3080 1.5 2004 4629
PINK/GRAY/
ORANGE
1.7
Y2RSI-2D-3280N 3740 1.8 2134 4930
PINK/GRAY/DK
BROWN
1.4
Isolator Details

York YCAL0056EE Specifications

General

Model	YCAL0056EE
Refrigerant	R-410A
Compressor Type	Scroll
Voltage	460V
Cooling Capacity	56 tons
Power Supply	460V/3/60
