Maintenance and
Disassembly
Page 30
2. Electrical parts (Antistatic gloves must be worn.)
Procedure Illustration
1) Remove 4 screws of the cover of
electronic control box and then
remove the cover. (see CJ_CF_003)
2) Disconnect the connectors and then
remove the main control board. (see
CJ_CF_004)

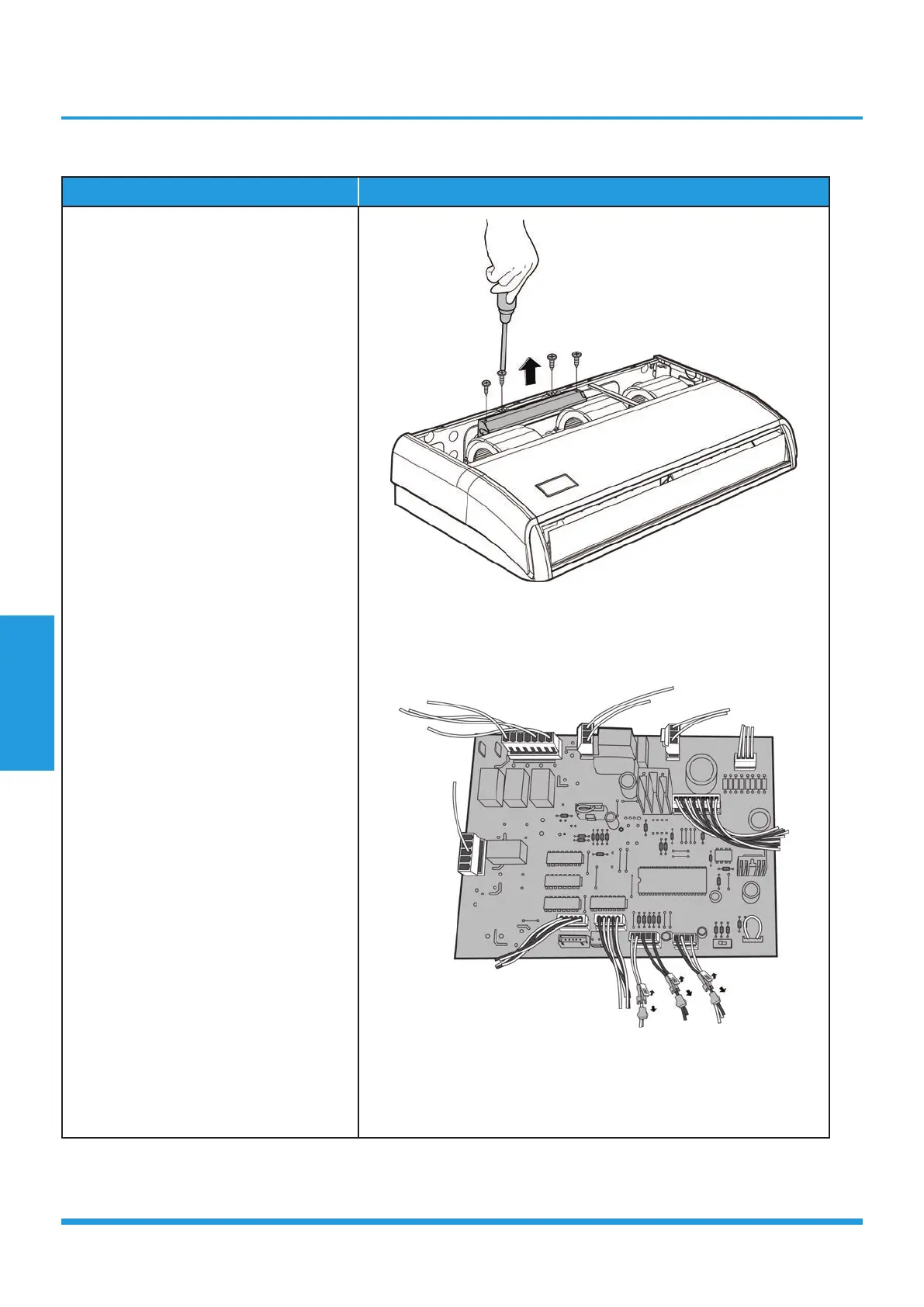

CJ_CF_003
CJ_CF_004
Note: This section is for reference only. Actual unit appearance may vary.
