Maintenance and
Disassembly
Page 34
4. Evaporator
Procedure Illustration
1) Remove the screws of left and
right panel and then push it in the
direction shown in the figure to move
it. (see CJ_CF_010)
2) Remove the screws of the front
panel(9 screws). (see CJ_CF_011)

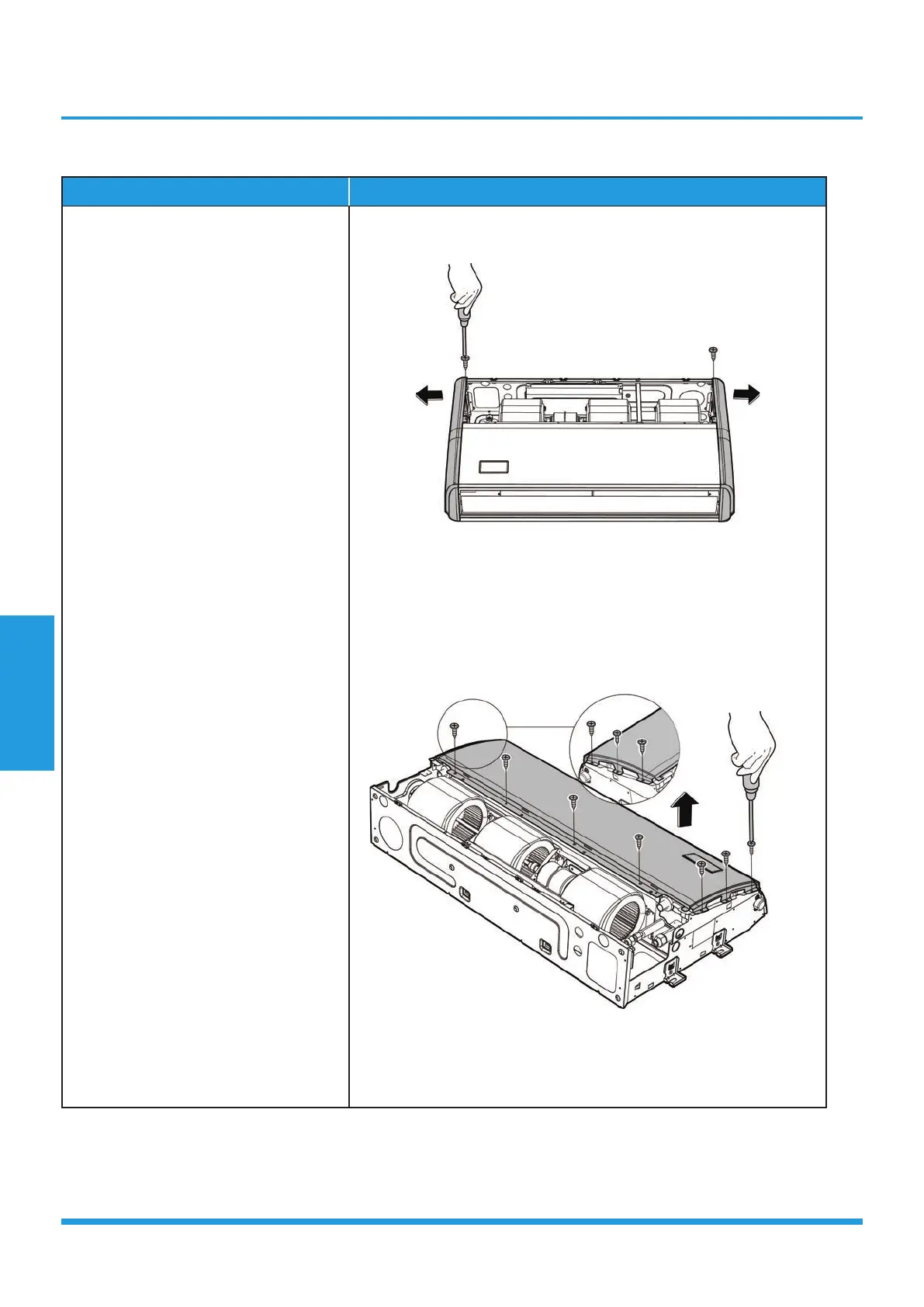

CJ_CF_010
CJ_CF_011
Note: This section is for reference only. Actual unit appearance may vary.
