Maintenance and
Disassembly
Page 76
6. Compressor
WARNING: Recover refrigerant from the refrigerant circuit before remove the compressor.
Note: Remove the panel plate, electrical parts, and fan assembly (refer to 1. Panel plate, 2. Electrical parts,
and 3. Fan assembly) before disassembling compressor.
Procedure Illustration

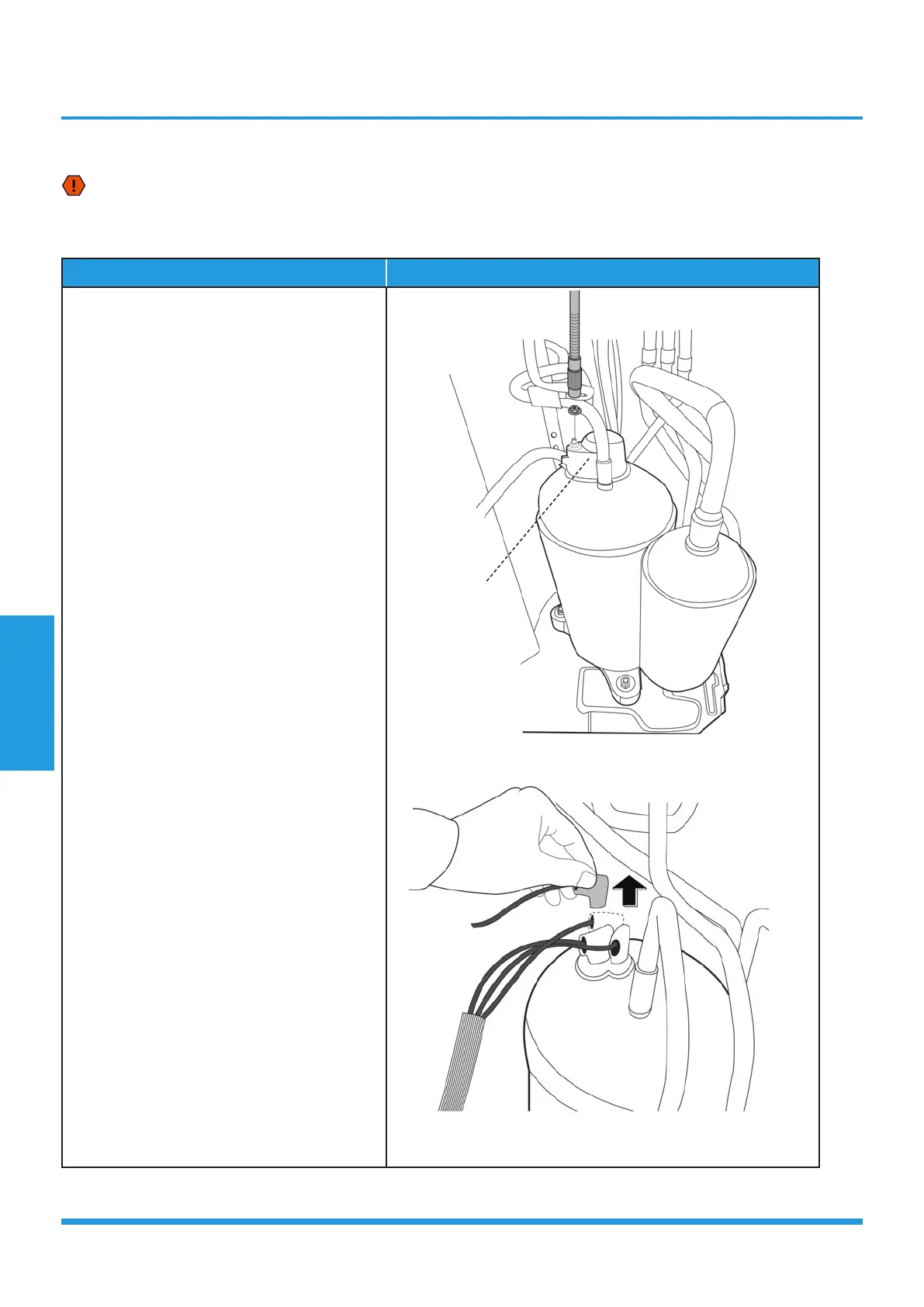

1) Remove the flange nut of terminal cover
and remove the termianal cover (see CJ_
ODU_017).
2) Disconnect the connectors (see CJ_
ODU_018).
CJ_ODU_017
CJ_ODU_018
Note: This section is for reference only. Actual unit appearance may vary.
Terminal Cover
To Next Page
