2.1.2 A6 Duct
1. Electrical parts (Antistatic gloves must be worn.)
Procedure Illustration

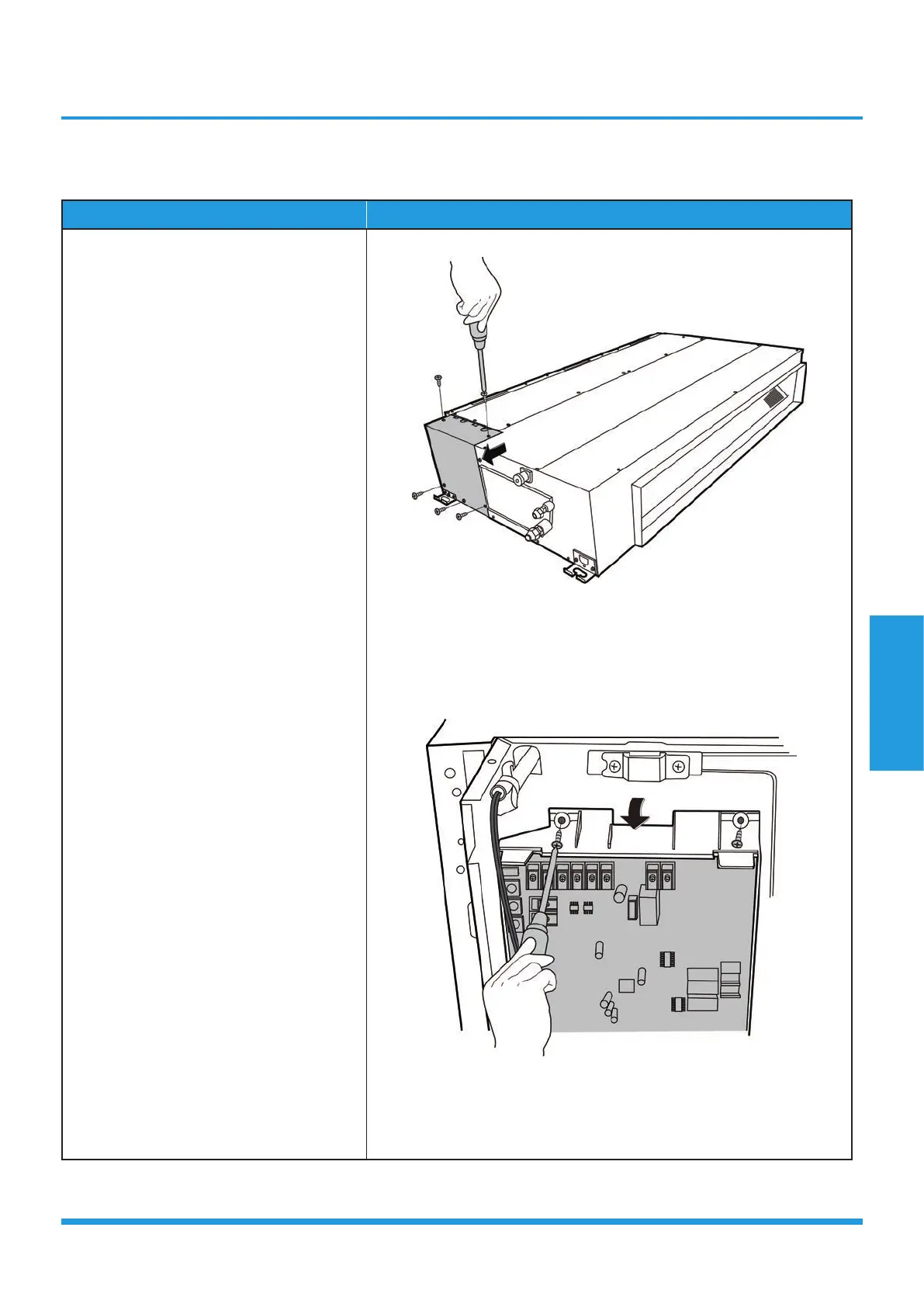

1) Remove 5 screws of the cover of
electronic control box and then remove
the cover. (see CJ_A6_001)
2) Remove the 2 screws of the electronic
control box. Then release the 2 hooks
of the main control board. (see CJ_
A6_002)
CJ_A6_001
CJ_A6_002
Note: This section is for reference only. Actual unit appearance may vary.
