Maintenance and
Disassembly
Page 37

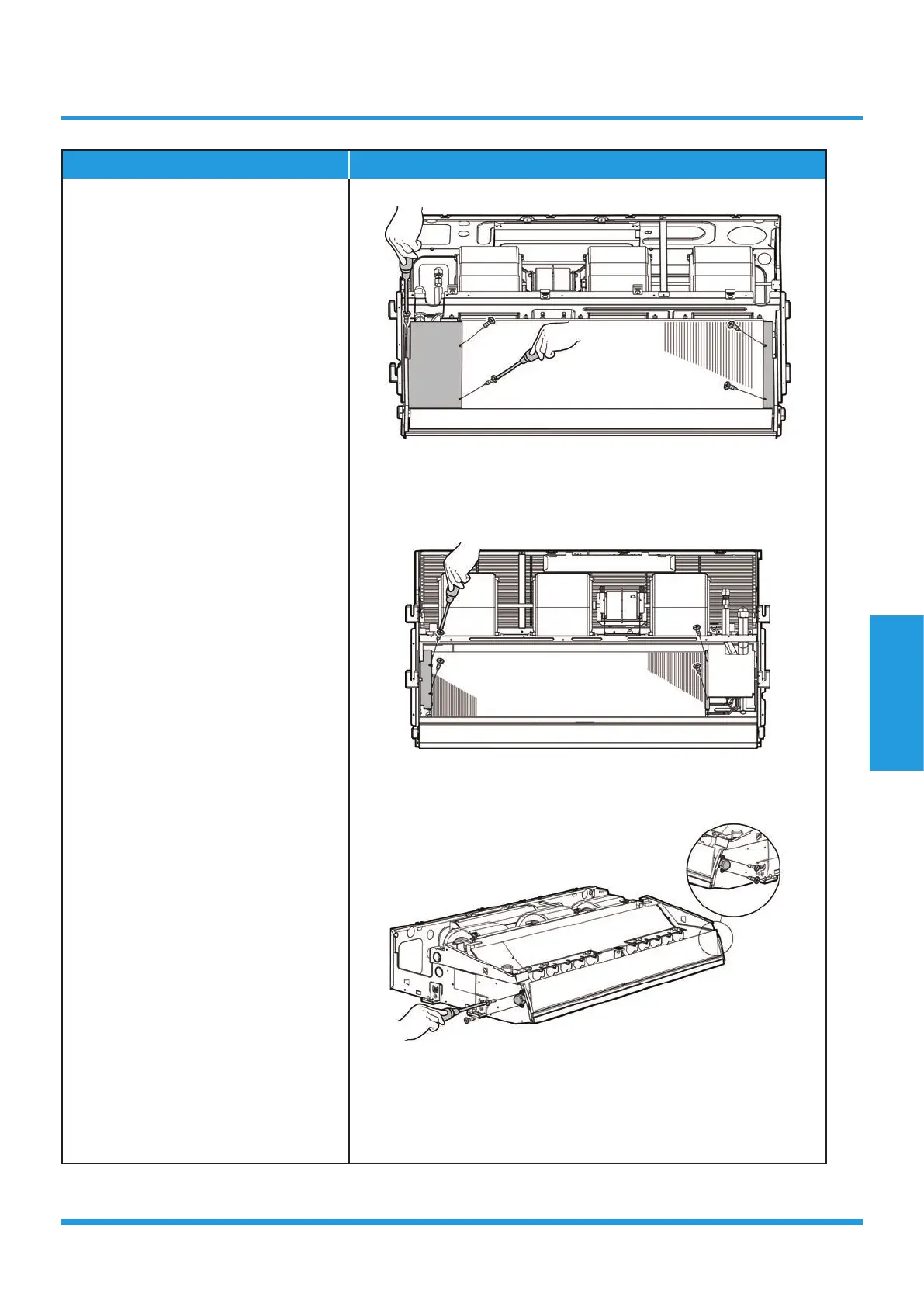

Procedure Illustration
7) Remove the screws of the front
evaporator support. (5 screws) (see
CJ_CF_016)
8) Remove the screws of the rear
evaporator support then pull out
the evaporator. (4 screws) (see CJ_
CF_017)
9) Remove 2 screws and Remove step
motor. (see CJ_CF_018)
CJ_CF_016
CJ_CF_017
CJ_CF_018
Note: This section is for reference only. Actual unit appearance may vary.
