Maintenance and
Disassembly
Page 45
Procedure Illustration

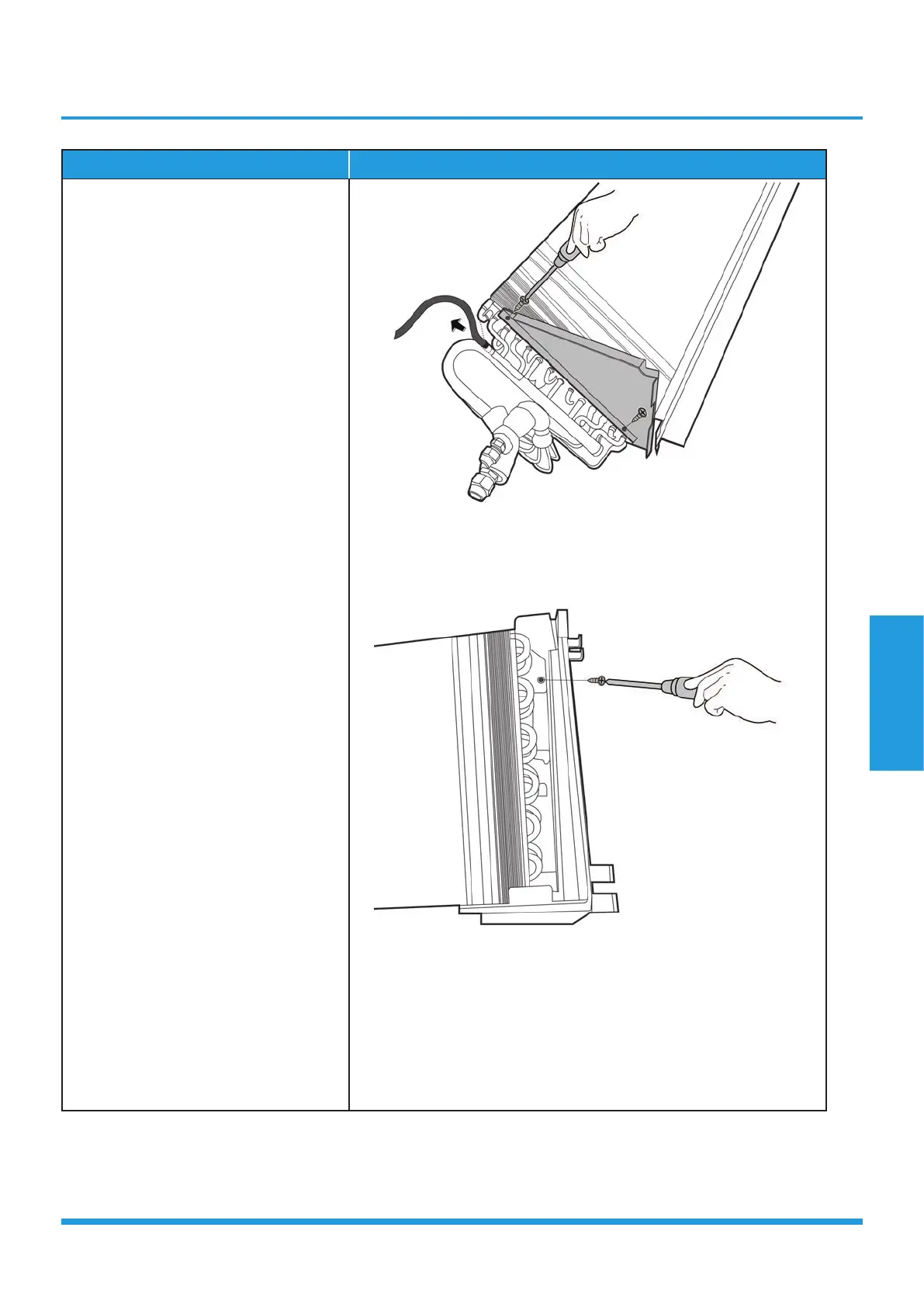

3) Remove the 2 fixing screws of the
evaporator support and then pull
up the temperature sensor. (see
CJ_A6_011)
4) Remove the fixing screw of the
evaporator and then remove it. (see
CJ_A6_012)
CJ_A6_011
CJ_A6_012
Note: This section is for reference only. Actual unit appearance may vary.
