Procedure Illustration

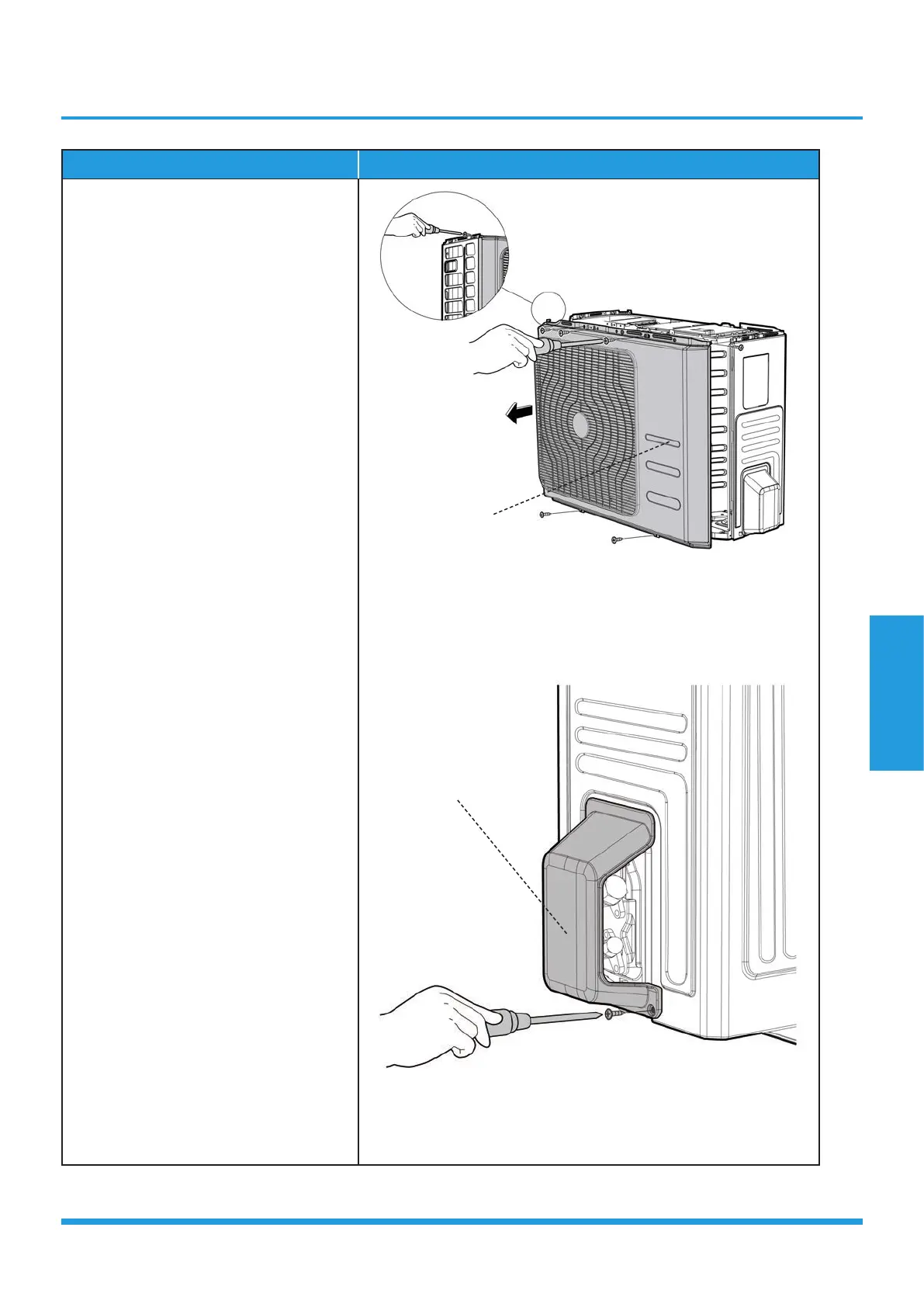

4) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_CA30_003).
5) Remove the screws of water collecting
cover and then remove the water
collecting cover (1 screw) (see CJ_
CA30_004).
CJ_CA30_003
CJ_CA30_004
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Water Collecting Cover
