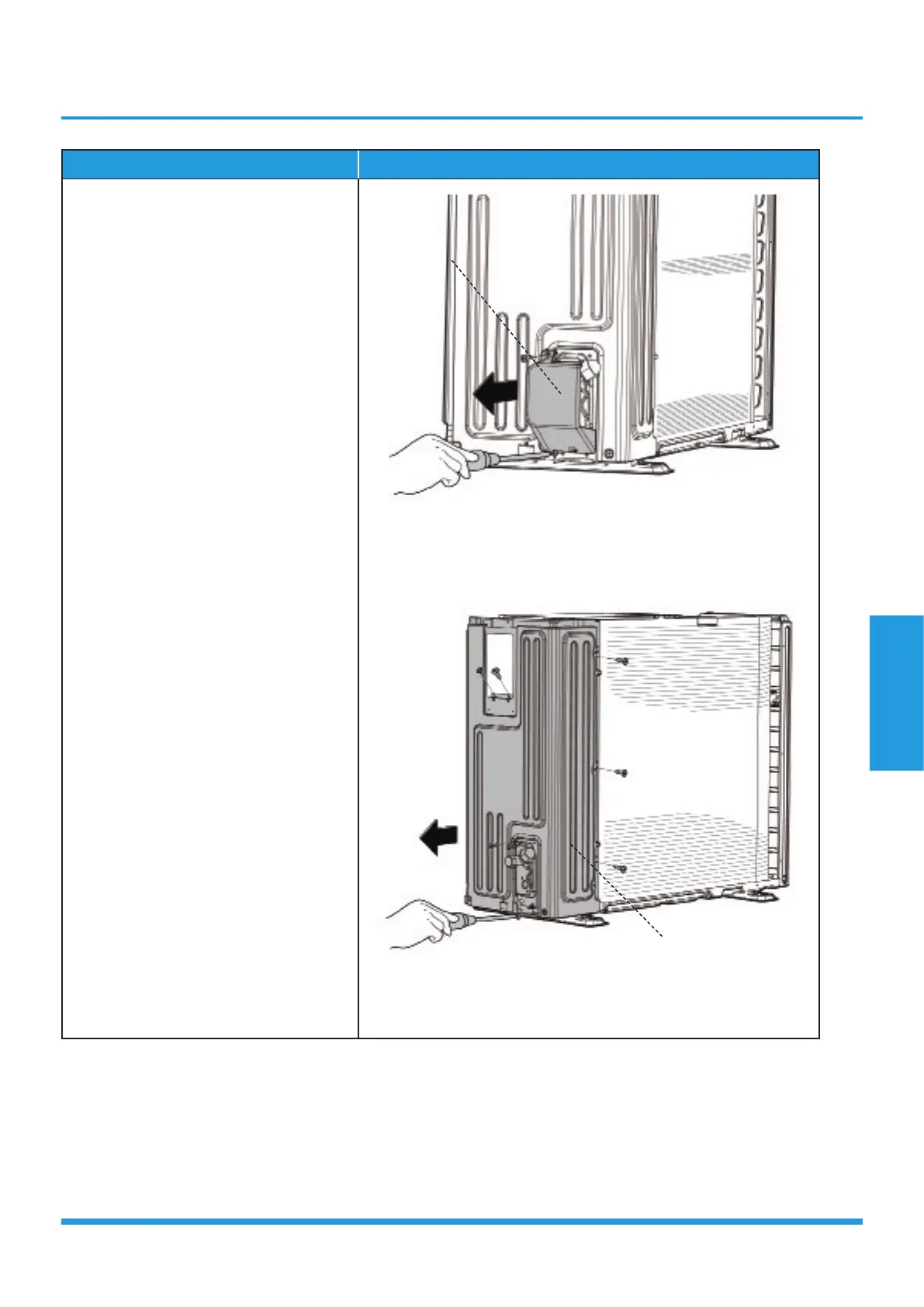

6) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screw) (see CJ_
D30_005).
7) Remove the screws of the right panel
and then remove the right panel
(8 screws) (see CJ_D30_006).
CJ_D30_005
CJ_D30_006
Note: This section is for reference only. Actual unit appearance may vary.
Right Panel
Water Collecting Cover
