Maintenance and
Disassembly
Page 64
Procedure Illustration

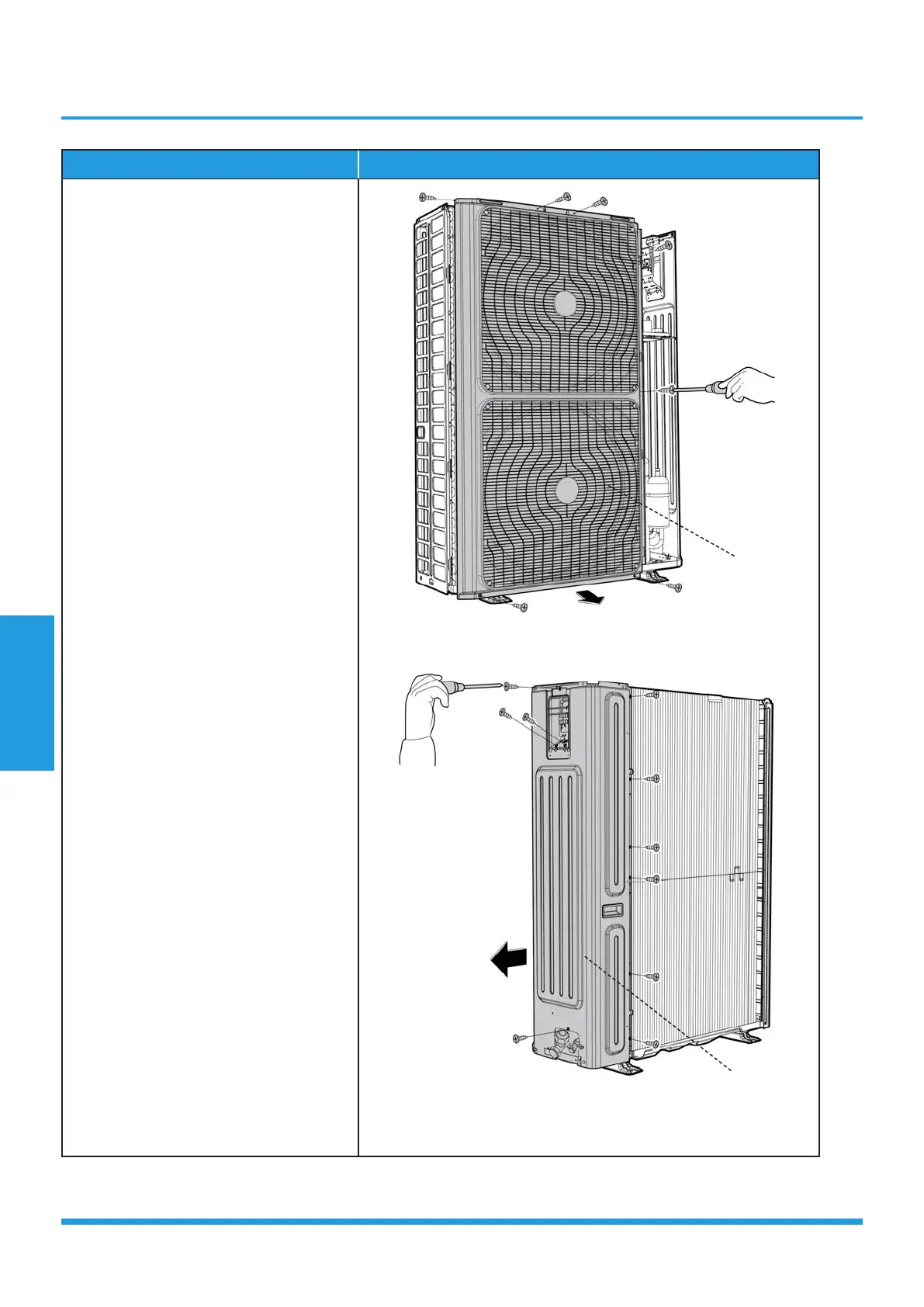

6) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_E30_005).
7) Remove the screws of the right panel
and then remove the right panel
(10 screws) (see CJ_E30_006).
CJ_E30_005
CJ_E30_006
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Right Panel
