Maintenance and
Disassembly
Page 67
MOCA30U-18HN1-NB8, MOCA30U-24HN1-NB8 , MOD30U-36HN1-NB8, YUFE36BYSM-MO-1

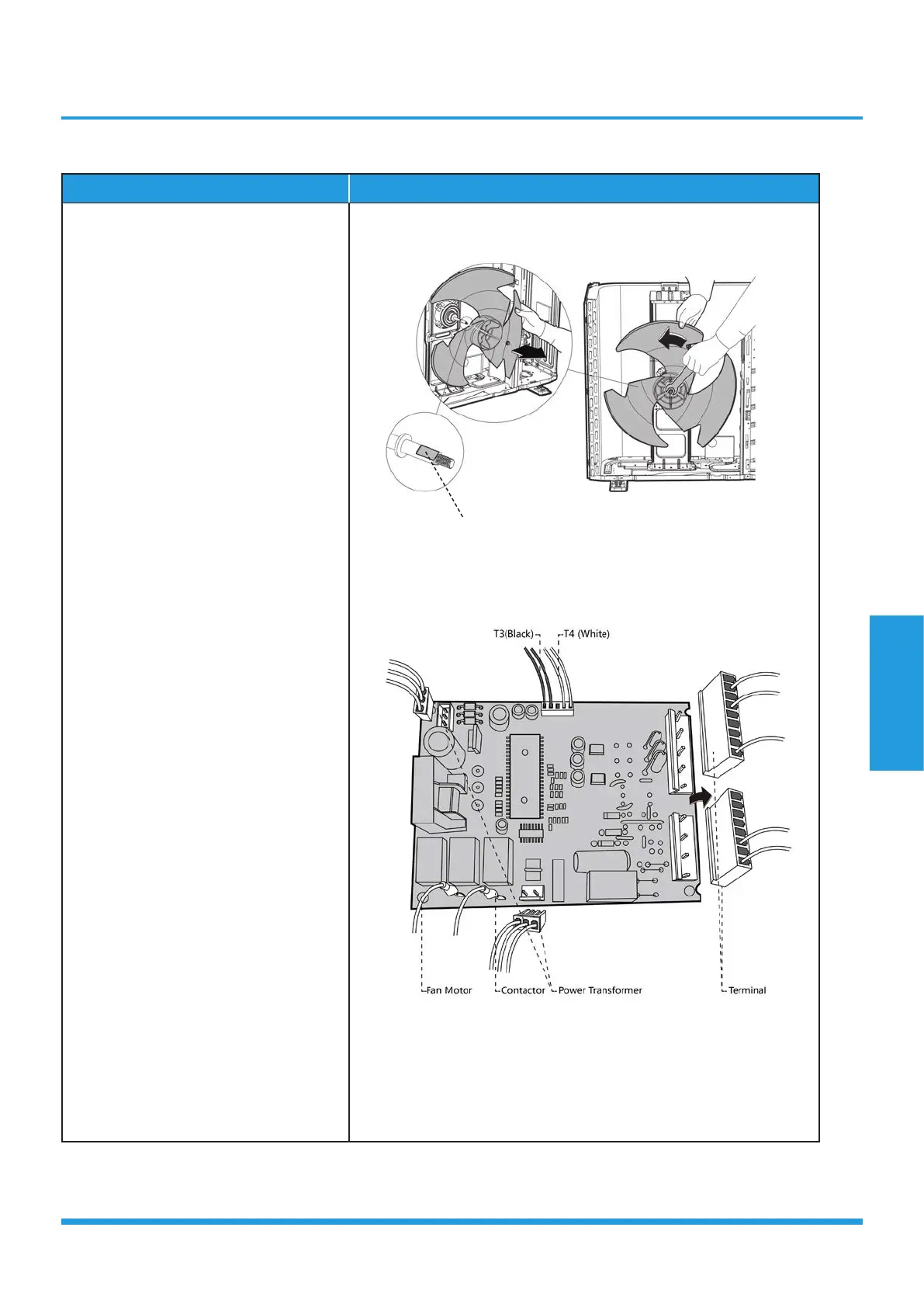

Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_004).
2) Remove the fan.
3) Disconnect the connectors for fan
motor. (see CJ_ODU_005)
CJ_ODU_004
CJ_ODU_005
Note: This section is for reference only. Actual unit appearance may vary.
D-cut
