Maintenance and
Disassembly
 Page 69 
YUFE48BYTM-MS-1, YUFE48BYSM-MS-1, MOE30U-48HN1-NB8, YUFE60BYTM-MS-1, YUFE60BYSM-MS-1,
MOE30U-60HN1-NB8

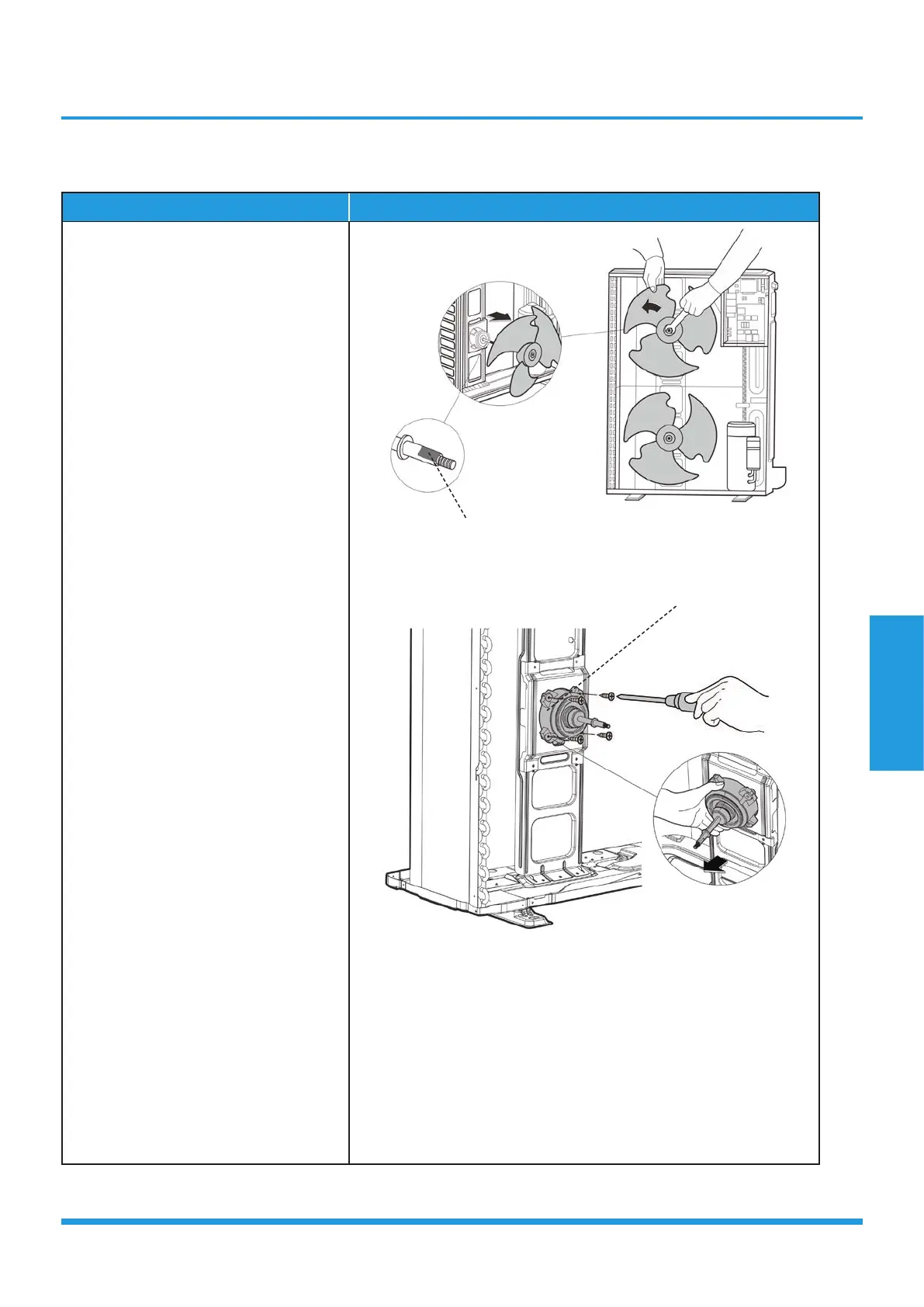

Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_007).
2) Remove the fan.
3) Disconnect the connectors for fan
motor from the terminal. (see CJ_
ODU_007)
4) Remove the fixing screws of the fan
motor (4 screws) (see CJ_ODU_008).
5) Remove the fan motor.
CJ_ODU_007
CJ_ODU_008
Note: This section is for reference only. Actual unit appearance may vary.
D-cut
Fan Motor
