IV. Installation Instructions
Step 1. Install the front and rear foot tubes
Required accessories: rear foot tube (7), front foot tube (6), 4 gaskets (66), 4 spring pads (75), 4 semi-
circular hexagon socket head screws (76), using hexagon wrench (91). (please refer to the figure
below)

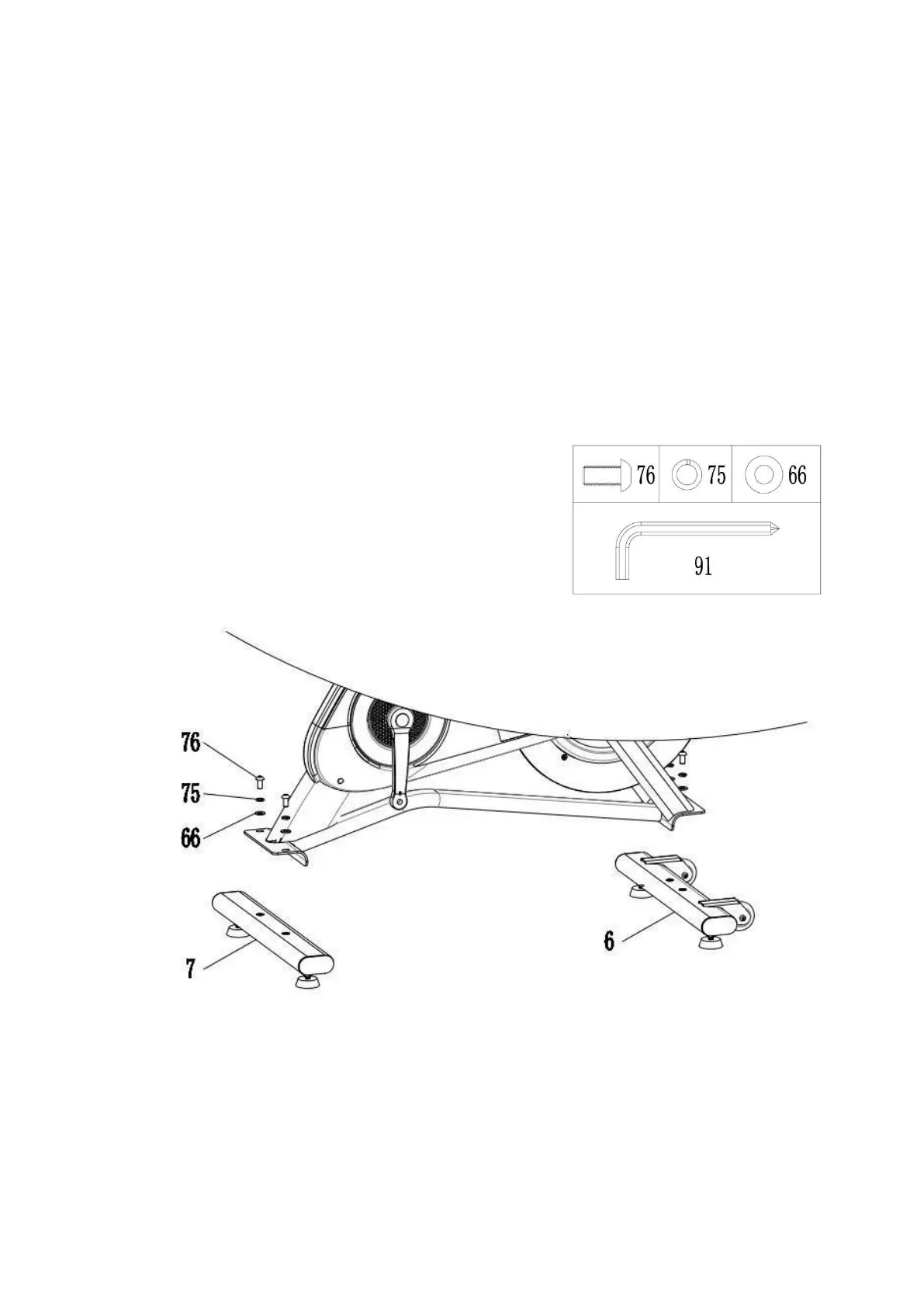

Locate the rear foot tube (7), and the front foot tube (6) lift the frame up by hand and move the foot
tube to the butt joint of the frame hole for alignment and installation. Then install and lock the gasket
(66), spring pad (75) and semicircle hexagon socket head cap screw (76) with hexagon socket wrench
(91) as shown in the following figure.
