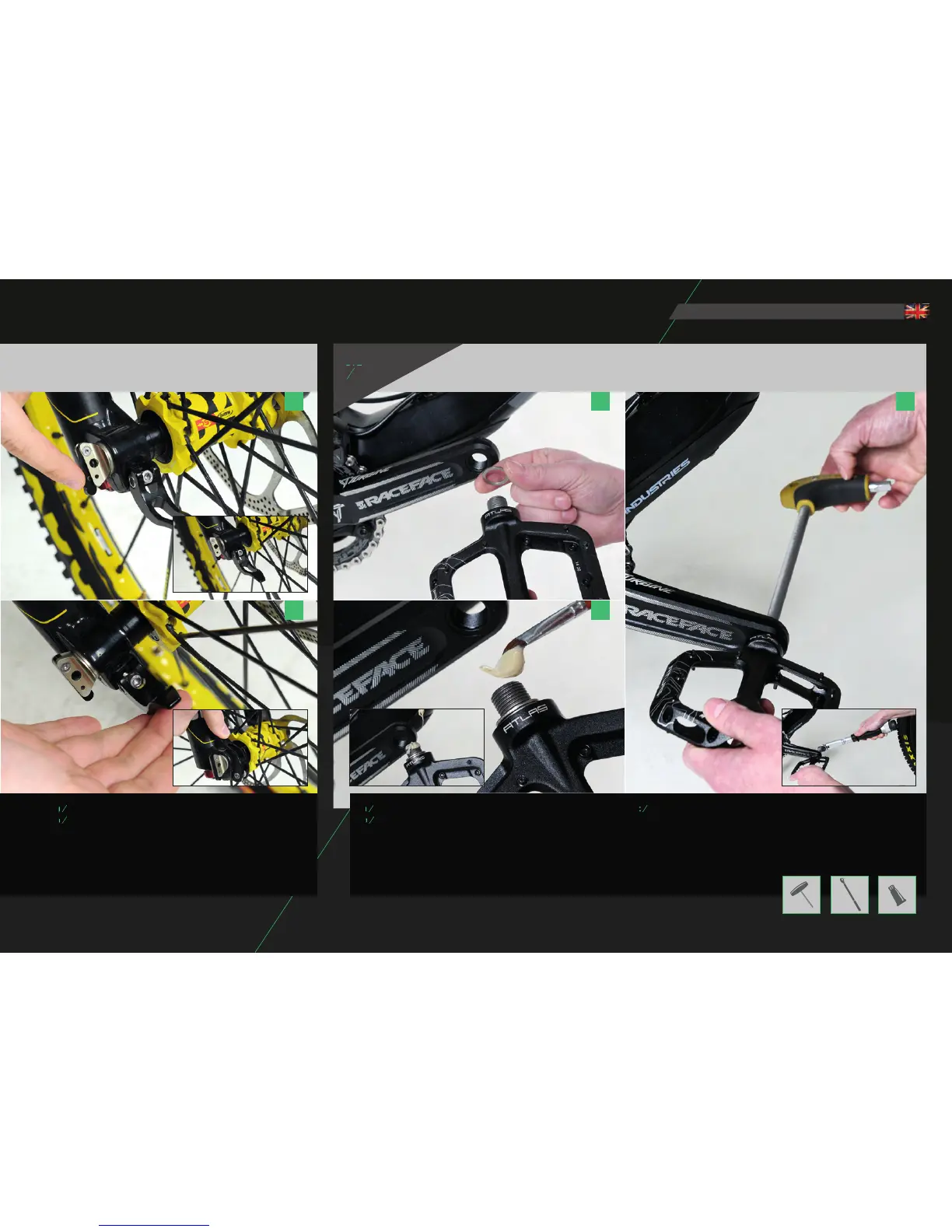

Close the folding lever until it snaps in place.
h
Close the quick release and ensure that the lever can be
closed by hand without much effort. Clamping force can
be adjusted using a 5 mm Allen wrench.
INSTALLING PEDALS
a c
b
a
Place the pedal washer on the pedal axle.
b
Apply suffi cient grease to the pedal thread.
Excess grease can be wiped away after the pedals have been installed.
c
Install the pedals using an Allen wrench (the size will vary by pedal manufacturer). The
drive side pedal has standard threading and the non-drive side pedal has reverse thread-
ing. Therefore, the non-drive side pedal is tightened by screwing it in counterclockwise.
Tighten the pedals using the torque wrench.
Please note the torque specifi cations of the manufacturer here as well.
