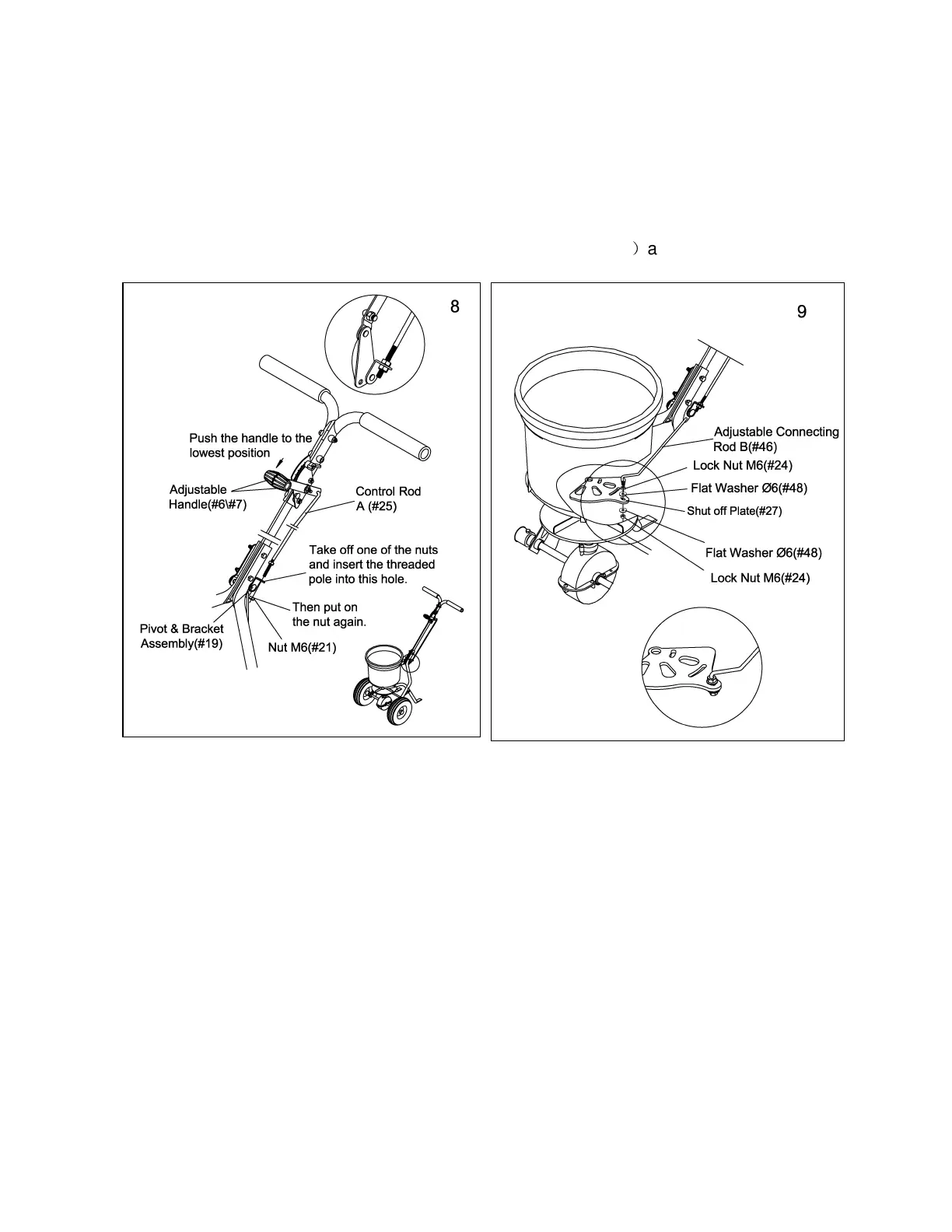

1. Push the Adjustable Handle (#6, #7) to the lowest position.
2. Insert the upper end of the Control Rod (#25) into the hole at the end of the Adjustable
Handle (#6, #7).
3. Take the lower nut (#21) off the bottom end of the Control Rod (#25) and insert rod into the
hole in the Pivot and Bracket Assembly (#19).
4. Screw nut back into place.
5. Slip the threaded end of Adjustable Connecting Rod (#46) into the Shut Off Plate (#27) with
a Flat Washer Ø6 (#48), then fasten with Flat Washer Ø6 (#48
）
and Lock Nut M6 (#24).
