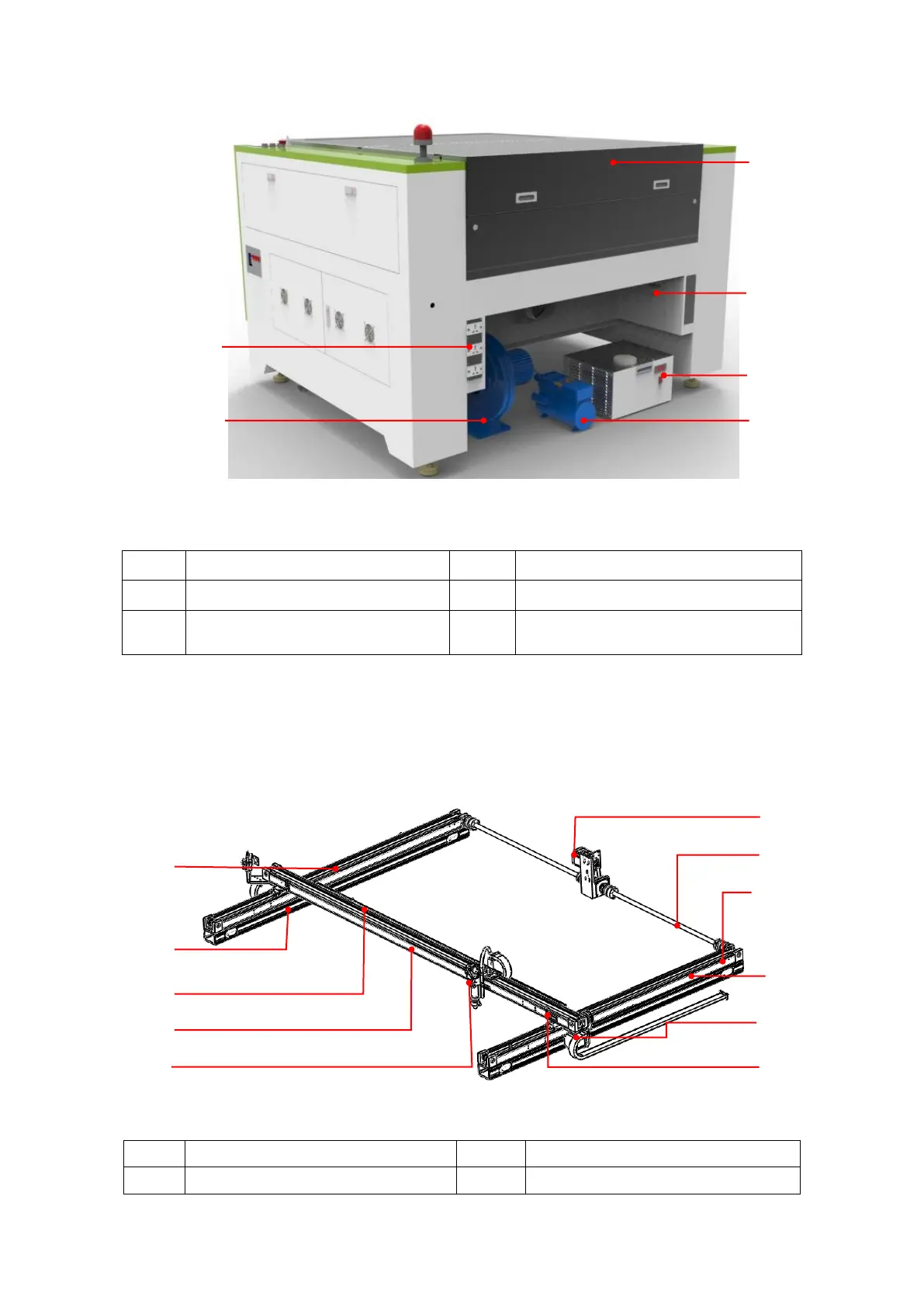

Figure 1-2: Back view of the machine
1.4.2 Transmission system
 Transmission system is composed of X-axis and Y-axis movement mechanisms in vertical relation as
shown in the figure below:
Figure 1-3: Transmission system
①
Y-axis sensor (reset or limit signal)
⑦
X-axis timing belt
②
Y-axis guide rail (one on each side)
⑧
Y-axis guide rail pad (one on each side)
①
Light pipe casing
④
Air pump (position diagram)
②
Water air pipe connector
⑤
Fan (position diagram)
③
Water tank pump (standard) (position
diagram)
⑥
Socket (unavailable for certain models)
②
③
④
⑤
⑥
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
