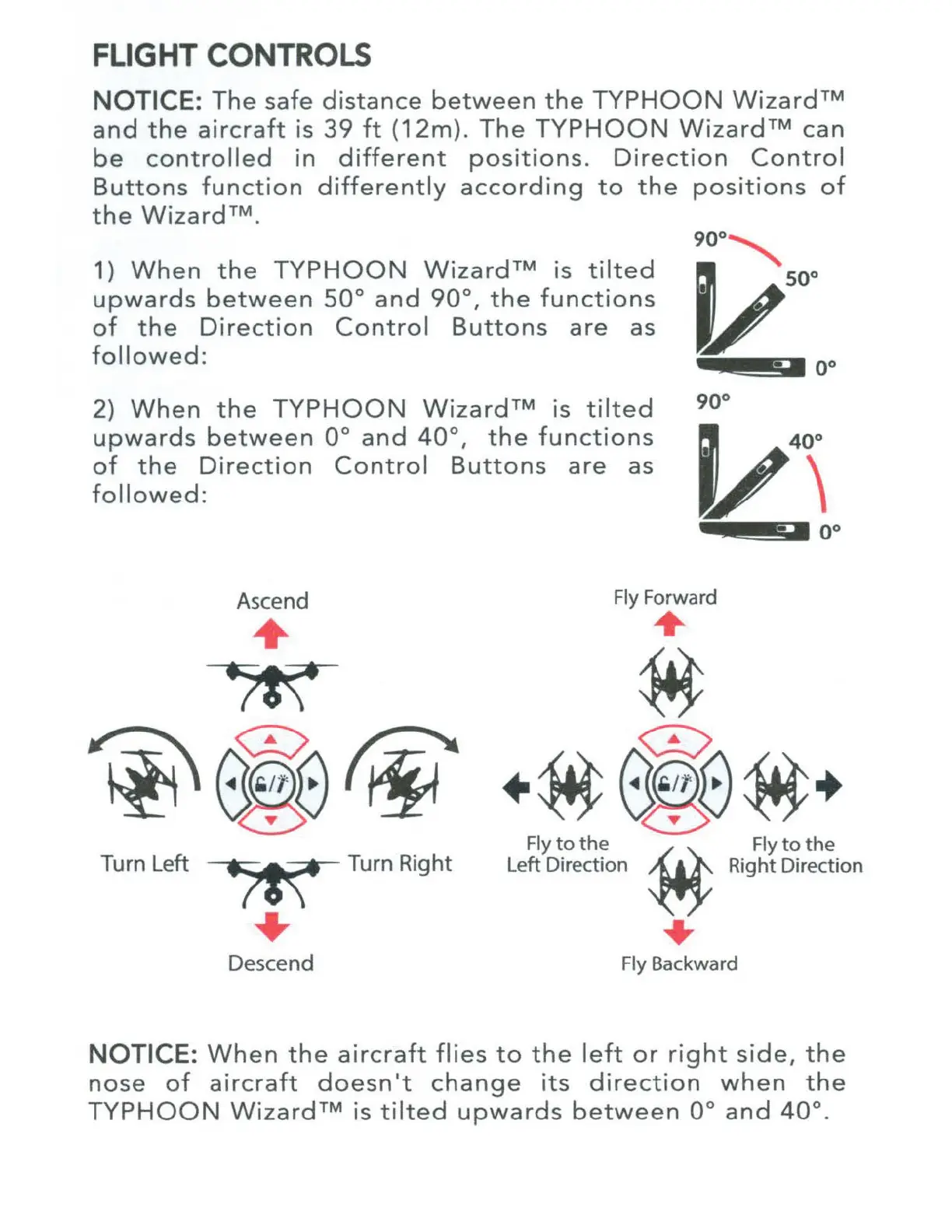

FLIGHT CONTROLS
NOTICE: The safe distance between the TYPHOON Wizard™
and the aircraft is 39 ft (12m). The TYPHOON Wizard™ can
be controlled in different positions. Direction Control
Buttons function differently according to the positions of
the Wizard™.
1) When the TYPHOON Wizard™ is tilted
upwards between 50° and 90°, the functions
of the Direction Control Buttons are as
followed:
2) When the TYPHOON Wizard™ is tilted
upwards between 0° and 40°, the functions
of the Direction Control Buttons are as
followed:
Ascend Fly Forward
+
~ ~
-- oo
~ ~ ~ ~
~ '0 ~ 0' ~ · ~0 ~ 0~ +
Fly to the Fly to the
Turn Left .. tot Turn Right Left Direction ~ Right Direction
(\ ~
+ +
Descend
Fly Backward
NOTICE: When the aircraft flies to the left or right side, the
nose of aircraft doesn't change its direction when the
TYPHOON Wizard™ is tilted upwards between oo and 40°.
