2) 3.5 HDD Installation
3) HDD Installation

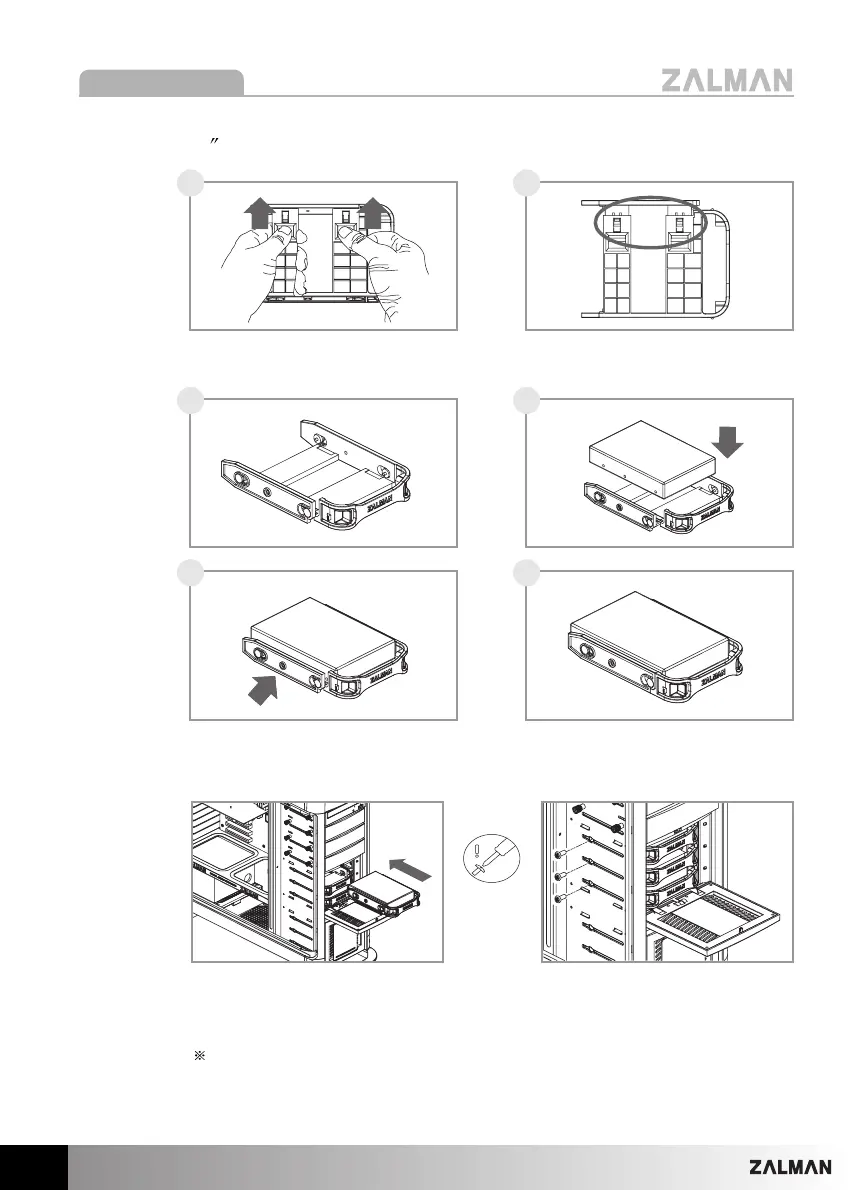

Please make sure that the HDD assembly is not upside-down and install
as shown in the diagram to insure normal operation (The HDD LED lights
up under normal operation).
1 2
3 4
5 6
3.5" HDD
3.5" HDD
3.5" HDD
Push the hooks as shown in the
diagram
Note) To transport a fullly assembled system, use a bolt to fixate the HDD
lock as shown in figure.
Diagram of released hooks.
#6-32*12
To Next Page
