ZALMAN GS1000 - Hot Swap Functionality; Hot Swap PCB and Cable Connection

15
English
The specifications of any product may change without prior notice to improve performance
GS1000
To use the Hot Swap HDD features, SATA and Power Cables must be
connected to the Hot Swap PCB.
Note) For safe installation and removal of HDD’s, please turn the computer
OFF before proceeding.
SATA cables not provided with the GS1000. Please purchases or use that
of another source.

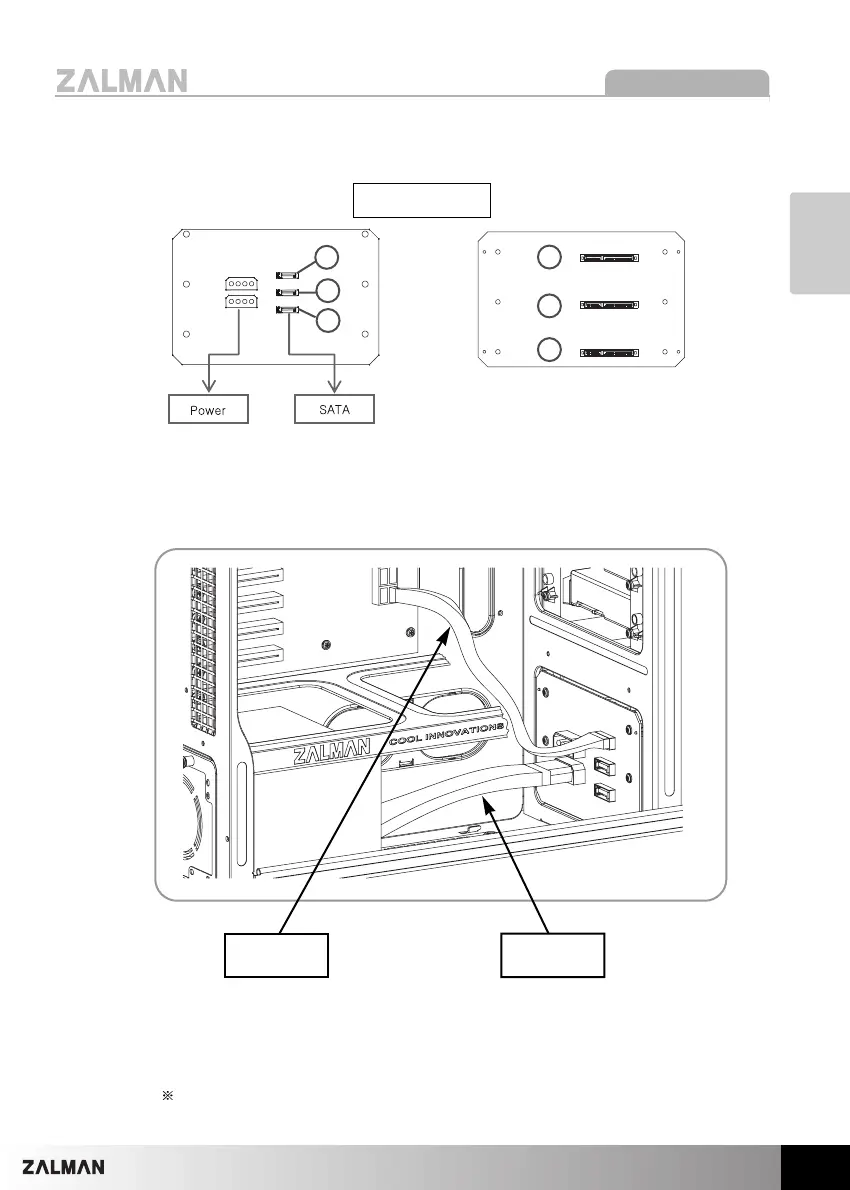

(7) Hot Swap Installation
1) Hot Swap Cables
A
B
C
A
B
C
Back
Front
Hot Swap PCB
SATA Cable Power Cable
