Zanotti BAS235T02F - Page 11

DATA:
REV.nr. FOGLIO nr :
DI
12
MSB235N02F-N02F/JEH-N180F-N350F
MSB235T02F-T180F
81900LSB
12-11-2003Soncini
DISEGNO nr.
ApprovatoDisegnato
Soncini
DATA: Approvato
MODELLO
BSB235T02F-351F-N02F-350F
01
24-11-2004 SONCINI
Aggiunto i morsetti comp.

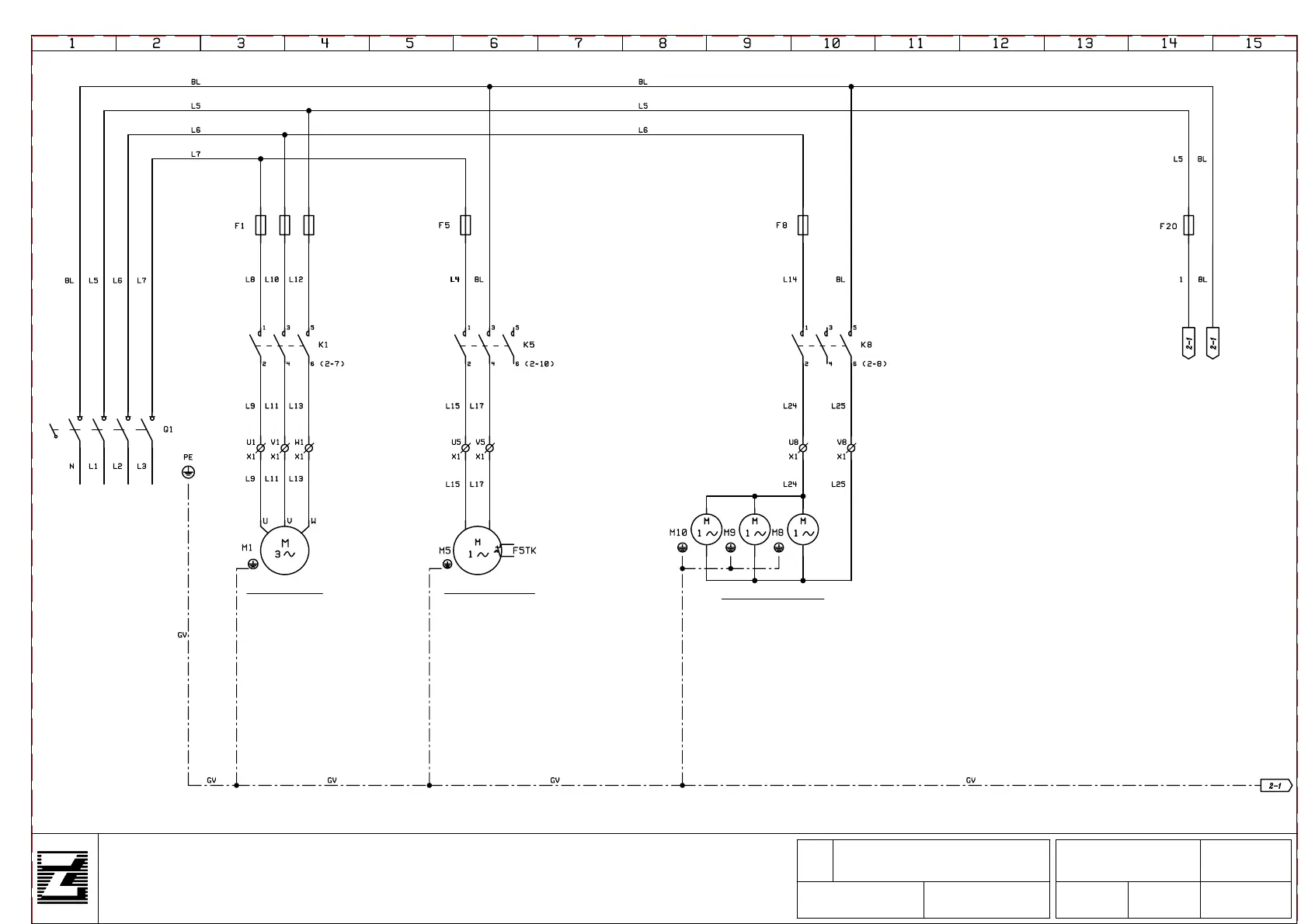

400V/3N~/50Hz
CONDENSER FAN
EVAPORATOR FANS
COMPRESSOR
230V/1N~/50Hz
6A 4A
In=3x 0,7A
In=1x0,8A
4A
BSB235T 50A
BSB235T I max.=18 A
MSB235T I max.=10 A
MSB235T 20A
MSB235N 16A
MSB235N I max.=8 A
BSB235N 32A
BSB235N I max.=15 A
