Zanotti BGM32002F - Page 40

DATA:
REV.nr. FOGLIO nr :
DI
33
MDB335NO...
MDB335TO...
BDB335NO...
AA09001
04-04-2003Soncini
DISEGNO nr.
ApprovatoDisegnato
Soncini
DATA: Approvato
MODELLO
BDB335TO..
GCD451NO...
GCD501TO...
EVAPORATORCONDENSING UNIT
TO X3
TO X2
TO X2
FROM X1
FROM X1
FROM X1
RIGHT
LEFT
MTZ50HK4=MT50HK4=12,0 A max.
MTZ64HM4=MT64HM4=15,0 A max.
MDB335NO...F e MDB335NO...G
MDB335TO...F e MDB335TO...G
4 x 2,5 mmq
5 x 4 mmq
CAVO DI LINEA
( LINE CABLE )
COMPRESSORE
(COMPRESSOR)
MACCHINA
( UNIT )
CAVO COMPRES.
(COMPRES. CABLE)
VENTOLA COND. VENTOLE EVAP.
(CONDEN. FAN) (EVAP. FANS)
SBRINAMENTO
(DEFROST)
I max.=9,1 A In=2,3 A In tot.=1,86 A

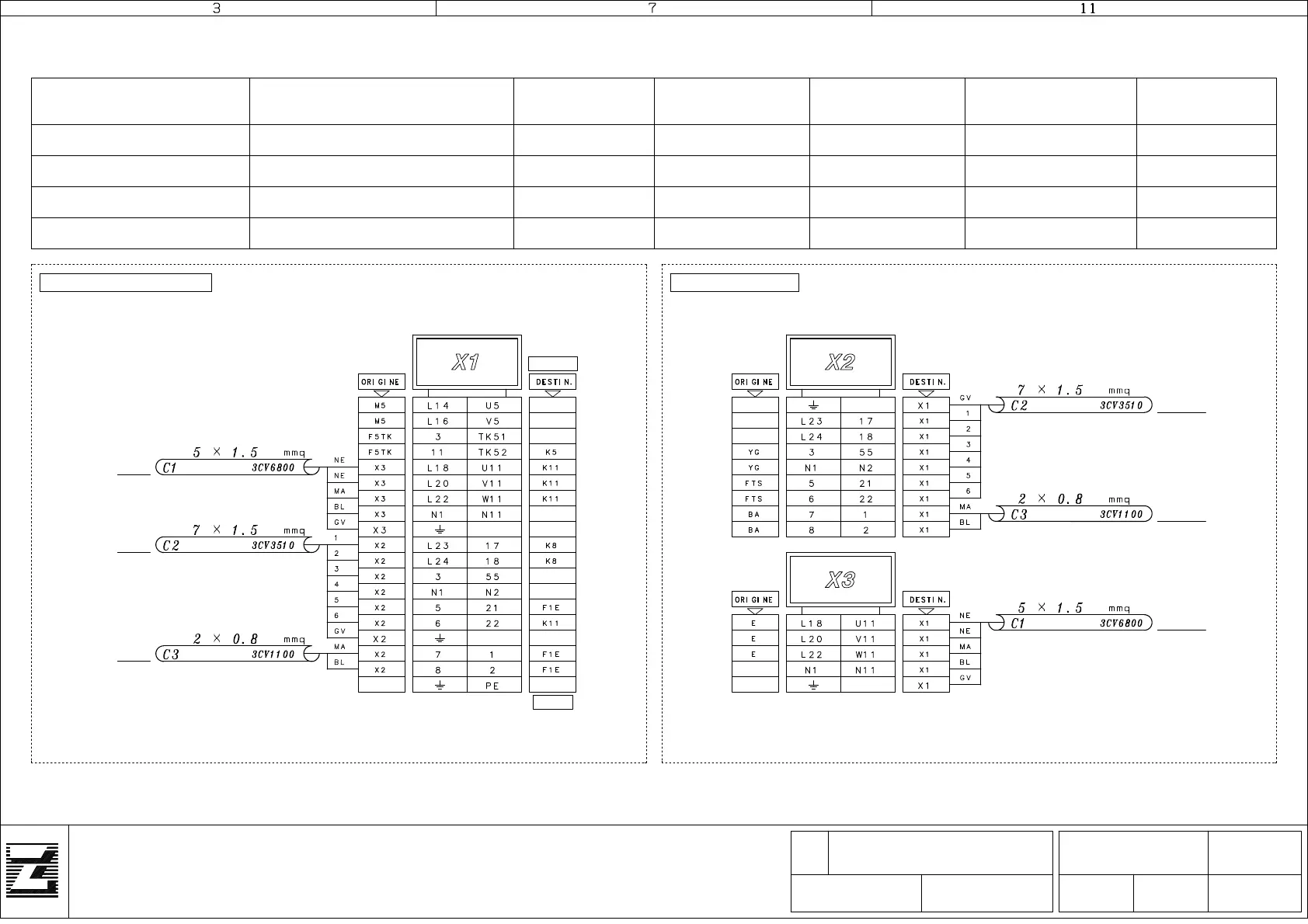

CARATTERISTICHE GENERALI E ASSORBIMENTI
4 x 2,5 mmq
5 x 2,5 mmq
BDB335NO...F e BDB335NO...G MTZ125HU4=MT125HU4=27,0 A max. 4 x 6 mmq 5 x 10 mmq
BDB335TO...F e BDB335TO...G MTZ160HW4=MT160HW4=36,0 A max. 4 x 10 mmq 5 x 10 mmq
I max.=9,1 A
I max.=9,1 A
I max.=9,1 A
In=3,0 A
In=3,0 A
In=3,0 A
In tot.=1,86 A
In tot.=1,86 A
In tot.=1,86 A
MORSETTIERE
