Zanotti FZ229 - Kit SFZ221 Installation

58
Kit SFZ221
installation

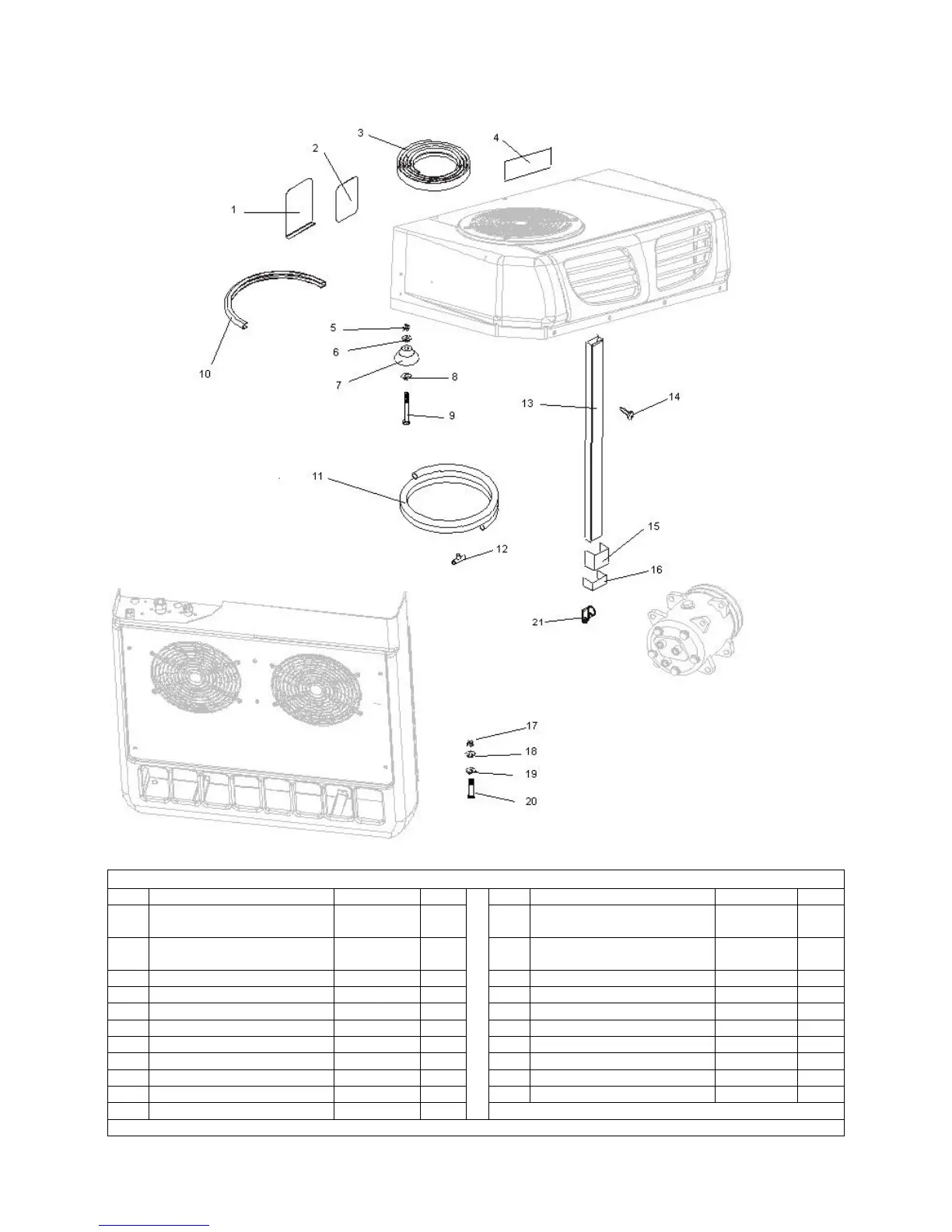

Component List KNS
Descrizione Codice Q.tà Descrizione Codice Q.tà
1 Cable And Tube Pass. Ext.
Closing
3001242/A 1 12 T-Union 3TEE007 1
2 Cable And Tube Pass. Int.
Closing
3001243/A 1 13 Pipe Trough 3CNL015 2
3 Gasket 3NST025 2.2 14 Self-Threading Screw 4,8X22 3VTE221 24
4 Soldering Label 3ETA479 1 15 Internal Trough Bracket 3SFP012 4
5 Nut M 10 3DDO070 4 16 Trough Joint 3GNE002 1
6 Washer 10x20 3RND051 4 17 Nut M.8 3DDO077 4
7 Support Feet 3002042 4 18 Washer 8x17 3RND045 4
8 Washer 3RND065 4 19 Washer 8x32 3RND066 4
9 Hexagonal Head Screw 3VTE318 4 20 Hexagonal Head Screw 3VTE327 4
10 Gasket "U" 3GUR031 0.5 21 Clamp With Screw 3FSC032 5
11 Spiral Pipe Ø 16 3TBG043 5
