Refrigeration unit
Zero Z120b
INSTALLATION MANUAL
rev.01
1.8 Plant components
The refrigeration unit consists of the following parts (Figure 3):
1. Condenser unit, installed outside the isothermic crate.
2. Evaporative unit installed inside the isothermic crate.
3. Electronic control and command power unit (HMI) , located inside the vehicle cab (in-cab
controller).

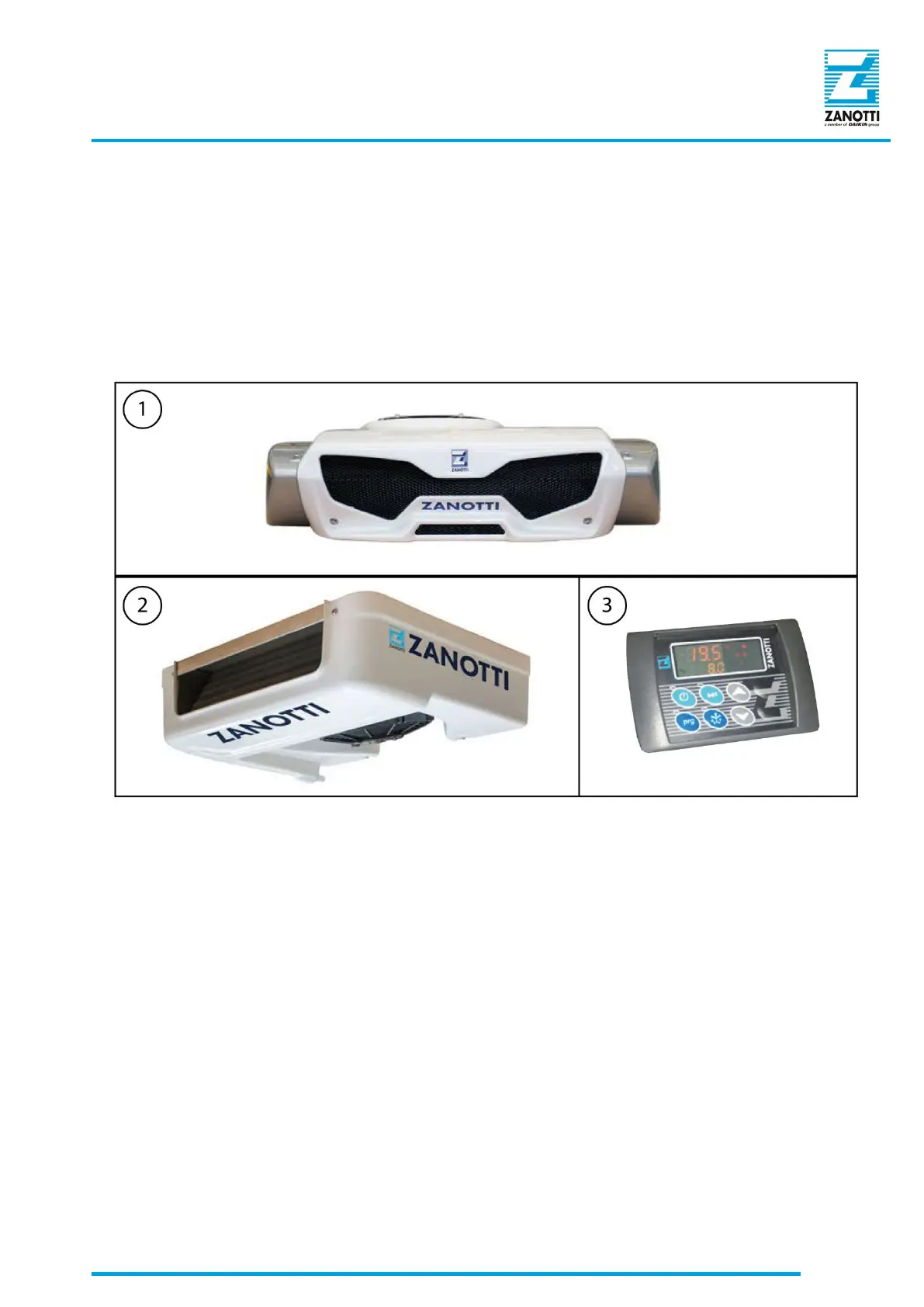

Figure 3 - Zero Refrigeration unit Z120b
1 Condenser unit 3 In-cab controller
2 Evaporator
