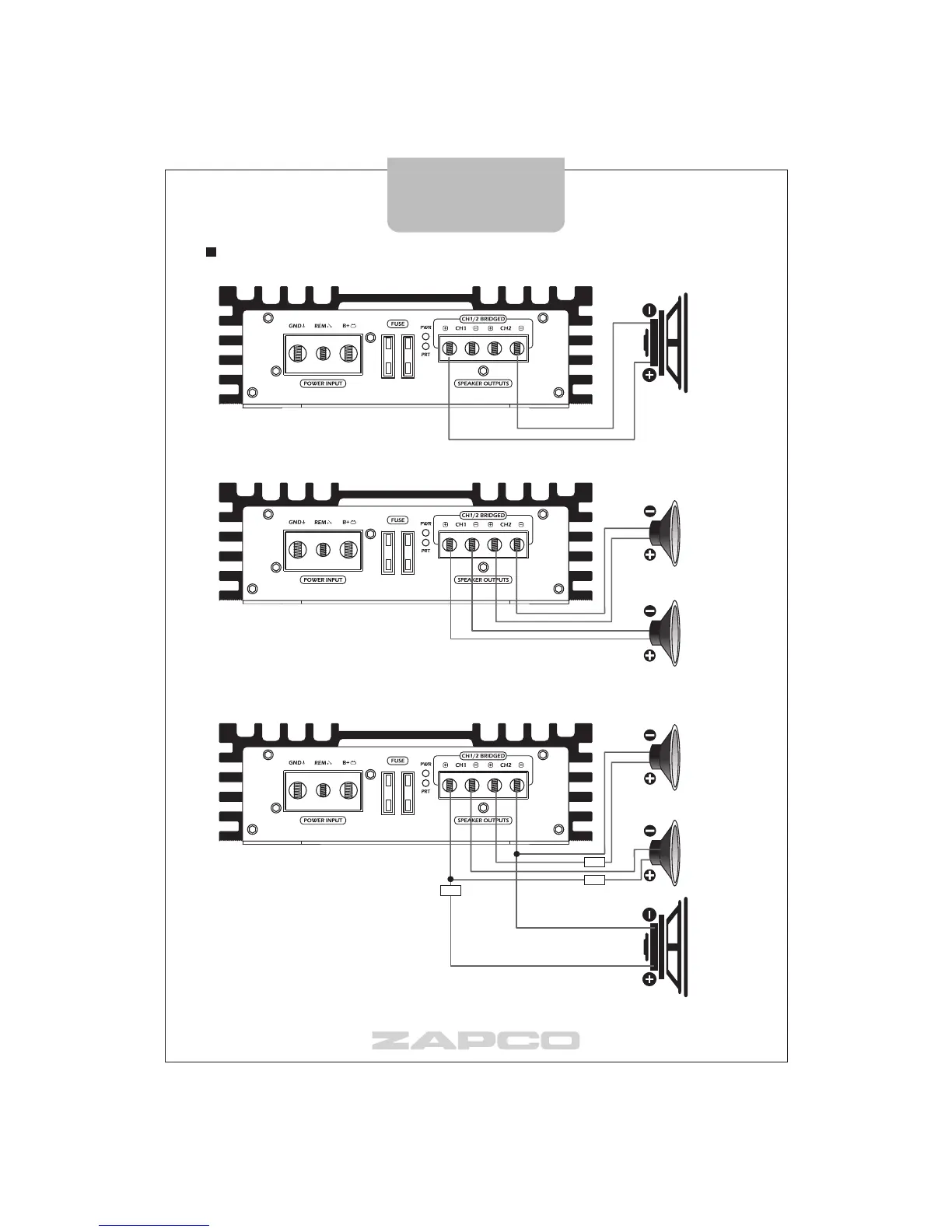

zapco Z-series - Speaker Connection Diagrams; Z-150.2 Speaker Connections

1 Channel Bridged
Speaker Impedance
2~8 ohms
Speaker Impedance
4~8 ohms
CH1-MONO
SUBWOOFER
2 Channel Stereo
CH2
CH1
SPEAKER CONNECTION
Speaker Impedance
2~8 ohms
CH3-MONO
SUBWOOFER
3 Channel Tri Mode
CH2
CH1
Speaker Impedance
4~8 ohms
Z-150.2
Note: All Tri-Mode woofer setups
require crossovers between Woofers
and Mids-Highs to preserve minimum
impedance for amplifier stability.
X-O
X-O
X-O
-11-
