- ANALOG: an analog motor thermal sensor is connected between F6

and F12 (the curve can be customized on a customer request).

- NONE: no motor thermal sensor switch is connected.

9) AUX FUNCTION

- ON/OFF: if this option is programmed ON the traction inverter applies

maximum braking and traction torque.

10) ENABLE FUNCTION

- PRESENT: input E14 is managed as accelerator enable input.

- ABSENT: input E14 is managed as exclusive hydro input.

11) CHECK PUMP HYDRO

- ON/OFF: if this option is programmed ON, if the traction inverter

doesn’t receive any messages by the pump inverter from the CAN-BUS

line, the "CAN BUS KO" warning appears on the traction and the

maximum speed is reduced down to 10%. The traction also checks via

CAN that there aren’t alarms on pump. If pump is in alarm, the maximum

speed is reduced down to 10%, but in this case any alarm or warning

appears.

SUBMENU "ADJUSTMENTS"

1) SET POT BRK MIN

It records the minimum value of braking pedal potentiometer when the

braking pedal switch is closed; the procedure is similar to the "Program Vacc"

function (see chapter 6.4). This procedure must be carried out only if the

"Pedal braking" option is programmed as "Analog".

2) SET POT BRK MAX

It records the maximum value of braking pedal potentiometer when the

braking pedal is fully pressed; the procedure is similar to the "Program Vacc"

function (see chapter 6.4). This procedure must be carried out only if the

"Pedal braking" option is programmed as "Analog".

3) SET BATTERY TYPE

It selects the nominal battery voltage.

4) ADJUST BATTERY

Fine adjustment of the battery voltage measured by the controller.

5) THROTTLE 0 ZONE

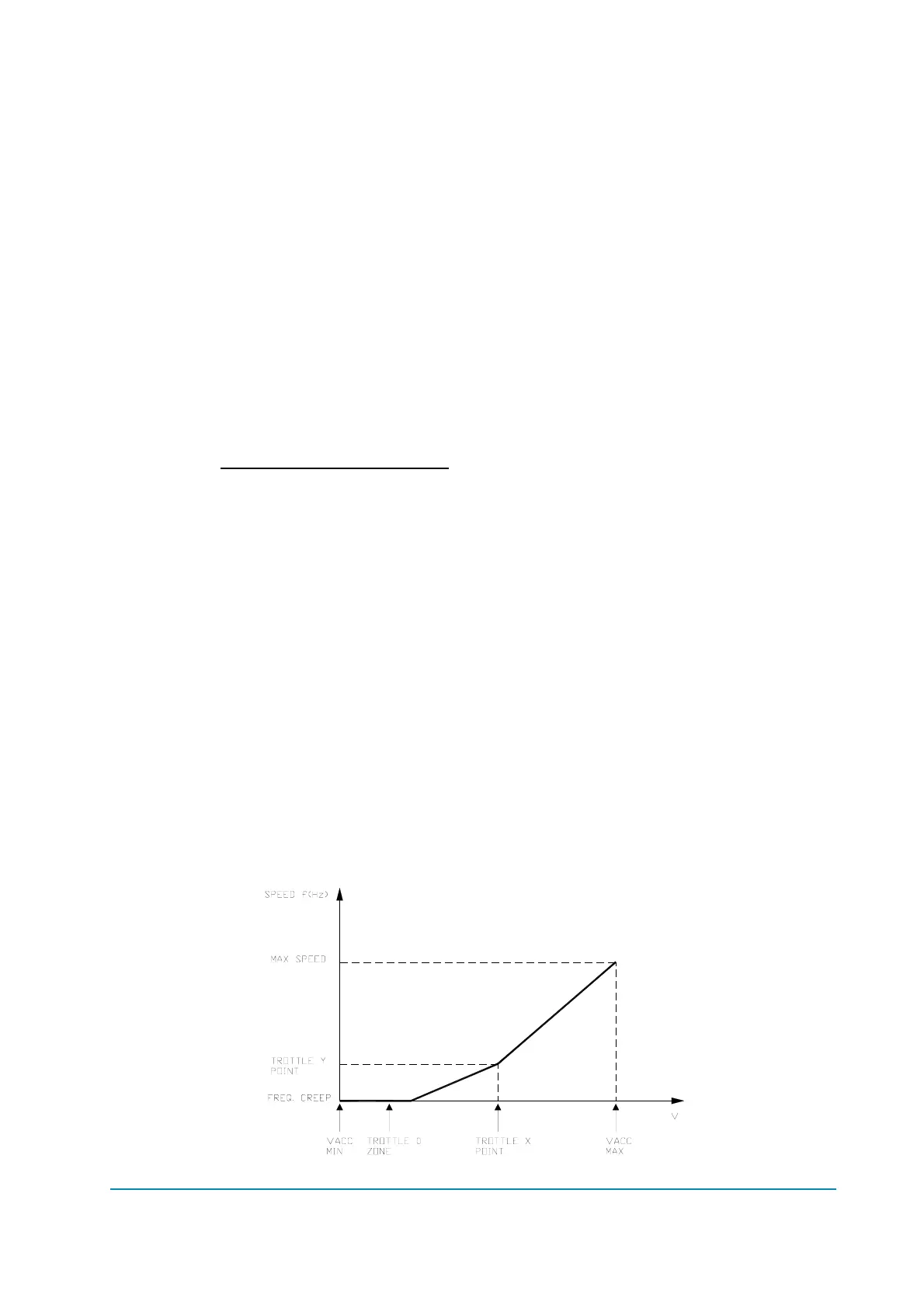

It establishes a deadband in the accelerator input curve (see also curve

below).

6) THROTTLE X POINT

This parameter changes the characteristic of the accelerator input curve.

7) THROTTLE Y POINT

This parameter changes the characteristic of the accelerator input curve.

VACC MIN and VACC MAX are values programmable by the "Program
