Zapi AC-2 User Manual

“Set option”) parameter is programmed “Analog”.
7) ADJUSTMENT #03
This parameter isn’t used.

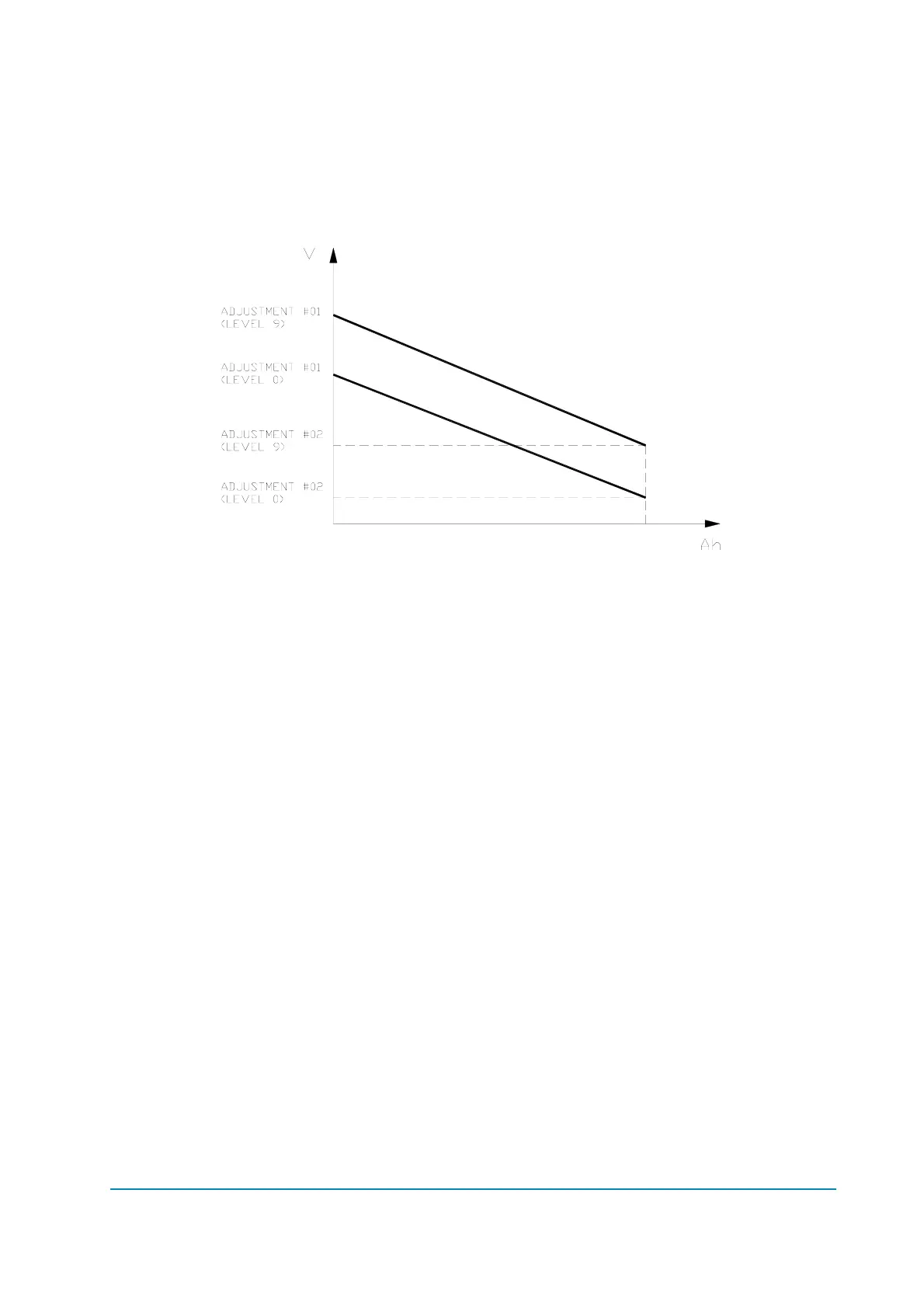

8) ADJUSTMENT #02
It adjusts the lower level of the battery discharge table.
9) ADJUSTMENT #01
It adjusts the upper level of the battery discharge table.
10) LOAD HM FROM MDI
For an explanation of this point see the MDI instrument handbook.
ADEZP0AE - AC-2 INVERTER - User Manual Page - 33/64

Zapi AC-2 Specifications

General

Brand	Zapi
Model	AC-2
Category	Inverter
Language	English
