Page 41

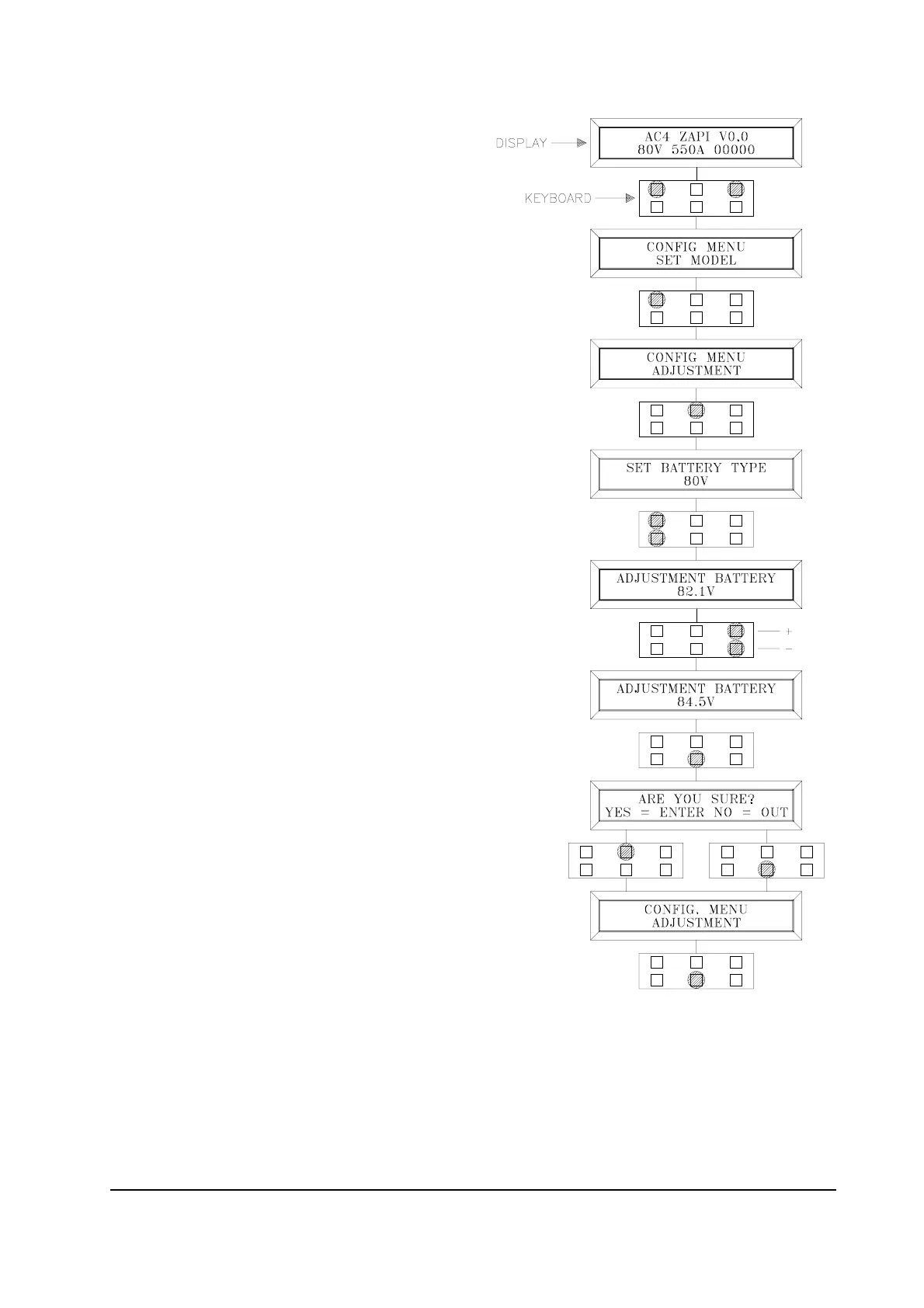

Flow chart showing how to carry out ADJUSTMENT BATTERY operation by console.
1) Opening Zapi Menu
2) Press Top Left & Right Buttons to enter
CONFIG Menu.
3) The Display will show: SET MODEL
4) Press ROLL UP button until
ADJUSTMENT Menu appears.
5) ADJUSTMENTS appears on the
display.
6) Press ENTER to go into the
ADJUSTMENTS Menu.
7) The display will show the first
OPTION.
8) Press ROLL UP or ROLL DOWN button
until desired OPTION appears
9) ADJUST BATTERY appears.
10) Press SET UP or SET DOWN button
in order to increase or decrease
respectively. Set the value read
by an external meter.
11) Battery value appears on the display.
12) Press OUT to exit the Menu.
13) Confirmation request appears.
14) Press ENTER to accept the changes,
or press OUT if you do not accept the
changes.
15) ADJUSTMENTS Menu appears.
16) Press OUT. Display now show the Opening Zapi Menu.
