Page 12

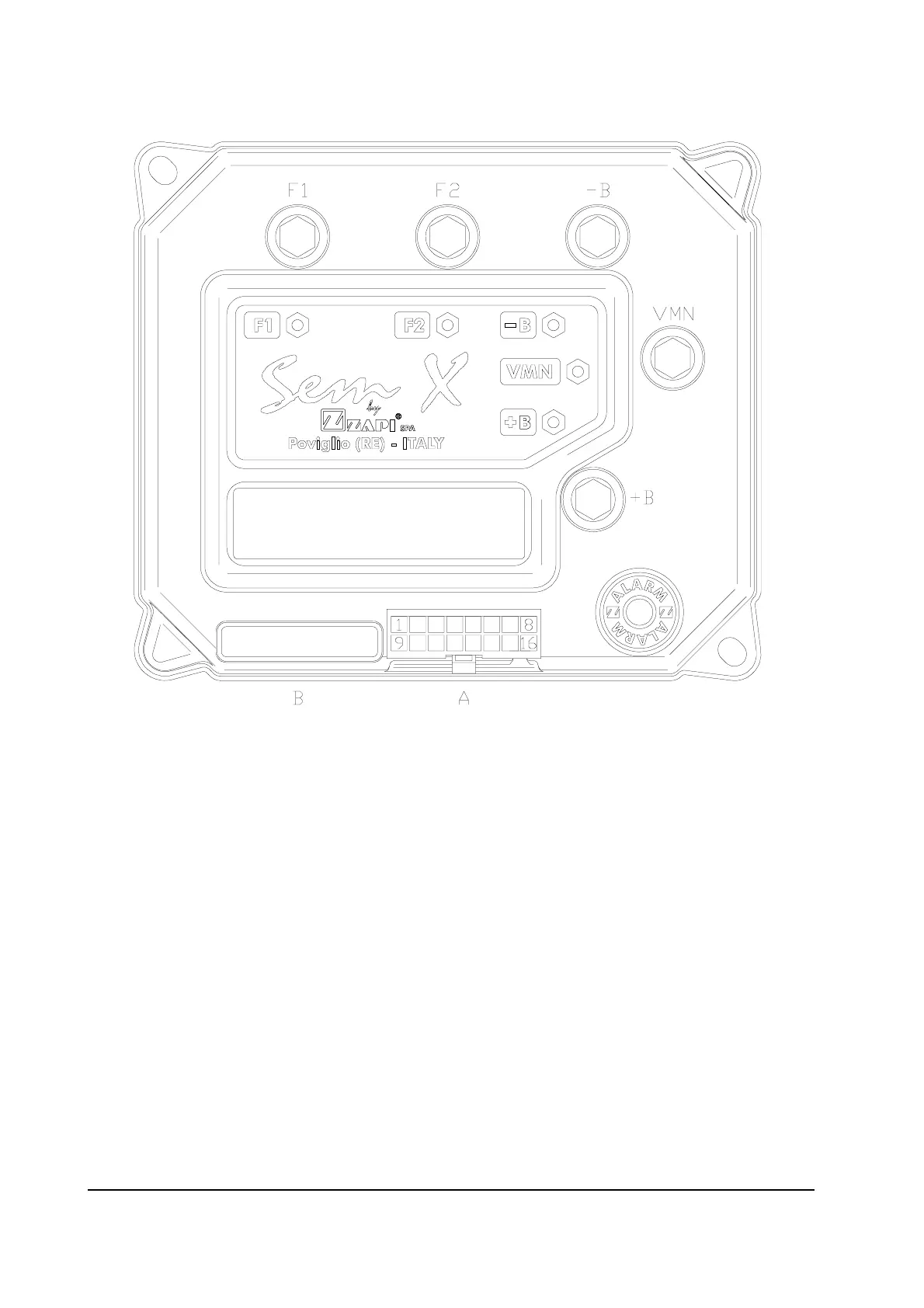

3.4 DESCRIPTION OF SEM-X CONNECTORS
PIN REFERENCE DESCRIPTION
A1 NPOT Provides a negative supply to accelerator's potentiometer; the
circuit is designed to provide a control against wire disconnection.
A2 CPOT Accelerator's potentiometer wire input.
A3 PPOT Provides a positive to supply accelerator's potentiometer,
protected against short to +B and -B.
A4 TILLER Tiller (seat) microswitch input, active high (+B).
A5 BELLY Belly switch input, used for quick inversion function, active high
(+B).
A6 FW Forward direction switch input, active high (+B).
A7 REV Reverse direction switch input, active high (+B).
A8 H&S Hard&Soft switch input, active high (+B).
A9 DIGITAL IN. Digital input, free for customization.
A10 ---
